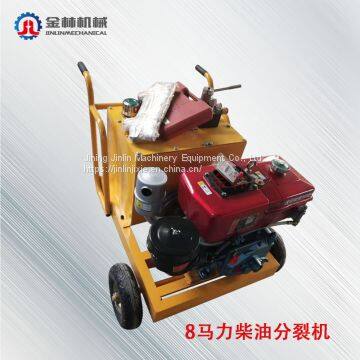

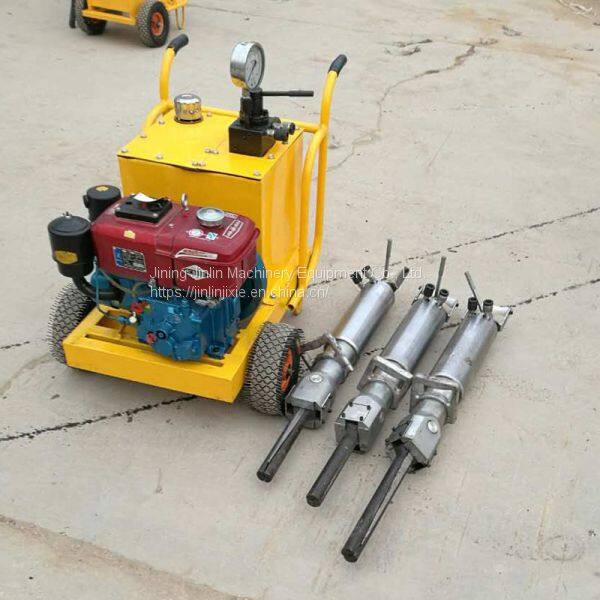

Aluminum Alloy Splitting Gun Demolition Of Concrete Components Stone Splitting Machine
Technical Parameters Of Aluminum Alloy Splitting Gun:
Model | Borehole diameter(mm) | Inner diameter / stroke of piston cylinder(mm) | Wedge length (mm) | Minimum drilling depth (mm) | Total length of splitting gun (mm) | Crack width (mm) | Splitting time (S) | Theoretical splitting power (T) | Actual splitting power (T) | Single machine weight (kg) |
JDL36 | ¢36-38 | 80/150 | 150 | ≥300 | 720 | 10~40 | 5~12 | 615 | 320 | 14 |
JDL38 | ¢38-40 | 80/195 | 220 | ≥400 | 940 | 10~40 | 5~12 | 615 | 380 | 16 |
JDL40 | ¢40-42 | 80/195 | 250 | ≥500 | 970 | 10~40 | 5~12 | 680 | 420 | 17 |
JDL42 | ¢42-45 | 90/225 | 300 | ≥600 | 1030 | 10~40 | 5~12 | 780 | 480 | 23 |
JDL45 | ¢45-48 | 90/225 | 380 | ≥800 | 1100 | 10~40 | 5~12 | 826 | 500 | 24 |
Product Description
Splitting machine can be divided into four types according to the type of power station: electric type, diesel type, gasoline type, pneumatic motor. According to the material of the splitting gun, it can be divided into two types: Steel splitting gun and aluminum alloy splitting gun. It can also be classified according to the strength of the splitting gun.
The product is mainly used for the mining of building stone; the second disintegration of large ore (metal ore, non-metal ore); partial and all demolition of concrete components (cement pavement, machine tool foundation, bridge and housing components); mining, splitting and crushing of natural stone.
Compared with the traditional operation mode in the above field, it has the advantages of simple structure, convenient operation, high efficiency, low cost, safety, energy saving, etc. Compared with similar foreign products, it has a very high cost performance (about 1 / 4 of the price of foreign products). The product is especially suitable for the second splitting of large rocks and is an ideal equipment which can completely replace blasting and manual disintegration.
