ChinaHome > Products > Splitting Machine > Hydraulic Rock Breaker Parts Gasoline Type Demolition Of Concrete Components

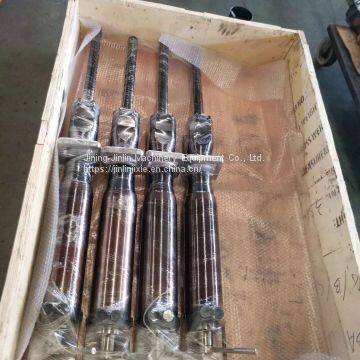

Hydraulic Rock Breaker Parts Gasoline Type Demolition Of Concrete Components
- Any Port of China
- T/T L/C D/P D/A Credit Card PayPal
- 15 days
You May Like
-
Portable Rock Breaker Steel Splitting Gun Mining And Splitting Of Natural Stone
-
Rock Cleaver Steel Splitting Gun Mining And Splitting Of Natural Stone
-
Rock Breaker Price Energy Saving Splitting And Crushing Of Natural Stone
-
Hydraulic Rock Breaker Parts Pneumatic Motor Mining And Splitting Of Natural Stone
-
Safety The Mining Of Building Stone Cleavage Machine
-
Aluminum Alloy Splitting Gun The Second Disintegration Of Large Ore Rock Breaker Price
Product Details
| After-sales Service Provided | Engineers available to service machinery overseas | |||
| Brand Name | Jinlin | Place of Origin | China | |
| Condition | New |
Product Description
Technical Parameters Of Aluminum Alloy Splitting Gun:
Model | Borehole diameter(mm) | Inner diameter / stroke of piston cylinder(mm) | Wedge length (mm) | Minimum drilling depth (mm) | Total length of splitting gun (mm) | Crack width (mm) | Splitting time (S) | Theoretical splitting power (T) | Actual splitting power (T) | Single machine weight (kg) |
JDL36 | ￠36-38 | 80/150 | 150 | ≥300 | 720 | 10～40 | 5～12 | 615 | 320 | 14 |
JDL38 | ￠38-40 | 80/195 | 220 | ≥400 | 940 | 10～40 | 5～12 | 615 | 380 | 16 |
JDL40 | ￠40-42 | 80/195 | 250 | ≥500 | 970 | 10～40 | 5～12 | 680 | 420 | 17 |
JDL42 | ￠42-45 | 90/225 | 300 | ≥600 | 1030 | 10～40 | 5～12 | 780 | 480 | 23 |
JDL45 | ￠45-48 | 90/225 | 380 | ≥800 | 1100 | 10～40 | 5～12 | 826 | 500 | 24 |
Product Description

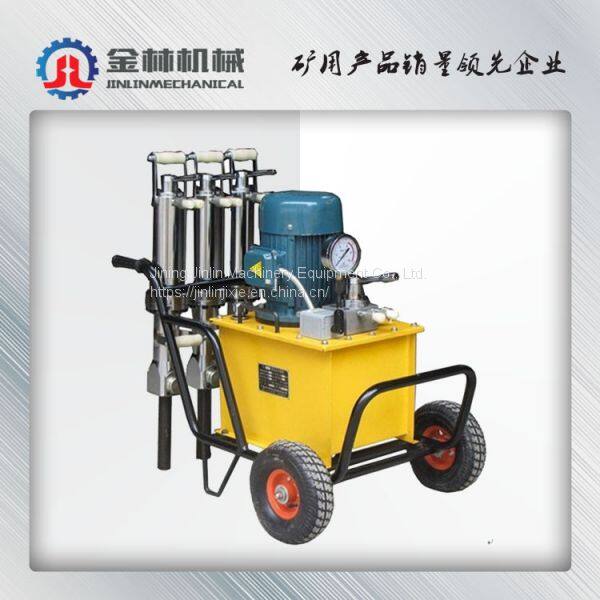

Splitting machine can be divided into four types according to the type of power station: electric type, diesel type, gasoline type, pneumatic motor. According to the material of the splitting gun, it can be divided into two types: Steel splitting gun and aluminum alloy splitting gun. It can also be classified according to the strength of the splitting gun.
The product is mainly used for the mining of building stone; the second disintegration of large ore (metal ore, non-metal ore); partial and all demolition of concrete components (cement pavement, machine tool foundation, bridge and housing components); mining, splitting and crushing of natural stone.
Compared with the traditional operation mode in the above field, it has the advantages of simple structure, convenient operation, high efficiency, low cost, safety, energy saving, etc. Compared with similar foreign products, it has a very high cost performance (about 1 / 4 of the price of foreign products). The product is especially suitable for the second splitting of large rocks and is an ideal equipment which can completely replace blasting and manual disintegration.
