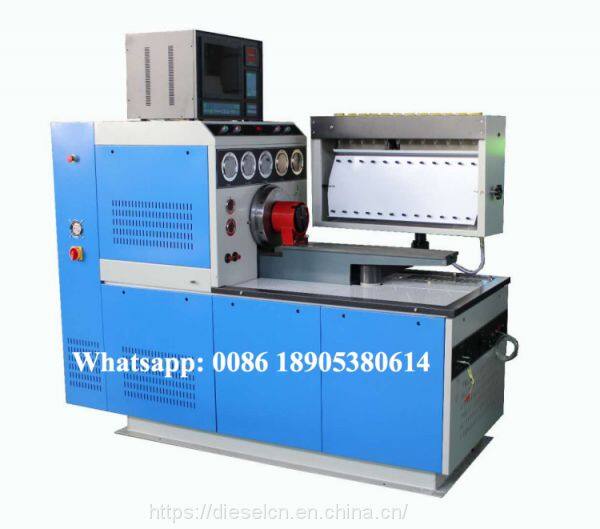

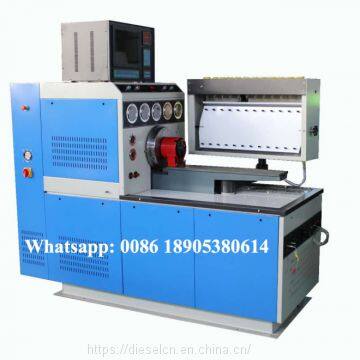

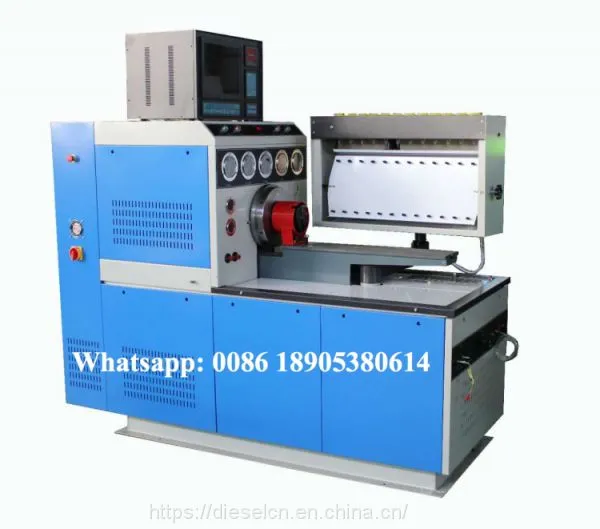

Help CenterNT3000 Banco de Pruebas Diesel /Diesel Test Bench NTS619
Related Products
-
BD850 Banco de Pruebas Diesel /Diesel Test Bench BD860US$ 2700 - 4500MOQ: 1 Set -
Euro2 Calibration Machine Diesel Fuel Injection Pump Test Bench BD860US$ 2800 - 4500MOQ: 1 Set
-
12PSB MINI Diesel Fuel Injection Pump Test BenchUS$ 2600 - 2800MOQ: 1 Set
-
12PSB Diesel Fuel Injection Pump Test BenchUS$ 2700 - 4000MOQ: 1 Set
-
Made in China NT3000 Diesel Injection Pump Test BenchUS$ 3200 - 4500MOQ: 1 Set
Product Application
Color: GREEN,BLUE,YELLOW,RED, WHITE,BLACK....
Power:7.5KW,11KW,15KW,18.5KW,22KW,........
Language: English/Russia
Introduction
Our company recently designed a new kind of frequency conversion and stepless speed regulation fuel injection pump test stand: NTS618(NTS619),which is measured and controlled by the computer in real time. Parameters such as Rotation speed, temperature, count stroking, rack travel, air pressure and advance angle etc are displayed on the computer. It is necessary testing equipments of diesel engines, auto and tractors manufacturers, as well as ideal products of pumps repairing.
The test stand includes 7.5KW, 11KW, 15KW, 18.5KW etc. according to its power.
1 Rotational speed, count, temperature, rack travel, air pressure and advance angle are measured and controlled by computers in real time,then displayed by 15″CRT or LCD.
2 having the functions of over voltage, overload and short-circuit protection etc.
3 Ultra low noise.
4 Having built-in air source itself.
5 All data can be made into reports and printed.
6 Changing frequency changing rotational speed continuously, high output torque, low falls of rotational speed.
7 Operating position: arbitrary side of the two work sides of the test stand.
8 High precision, high efficiency, save energy.
9 Having the function of oil level displayed and alarm.
10 Automatically generating and displaying speed curve.
11 Constant temperature control.
12 10 kinds of rotation speed presetting.
Main function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12 Checking the travel of stroke (on request)
13.oil lubricate (on request)
14. Forced cooling (on request)
Contact us freely.
Cloris Jia
whatsapp&Mob: +8618905380614
Skype: clorisjia
Facebook: Cloris Jia
Wechat :
Send Inquiry to This Supplier
