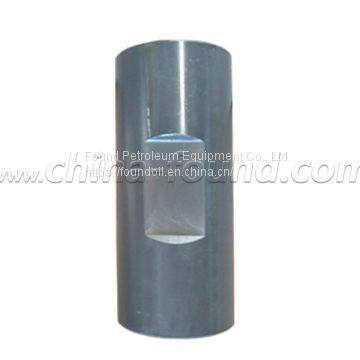

 Sucker Rod Coupling Class T

Our company produced Class T Coupling,sub coupling and spray coupling, they are design according to API Spec 11 B standard.Using the high quality carbon steel or alloy steel (the equivalent of AISI 1045 and AISI 4135) and plating metal is a kind of surface hardening technology, is the nickel, chromium, boron and silicon powder coated on the substrate metal and fused with the laser processing, after the process, the metal surface makes harder,density higher and more uniform, the friction coefficient is very low and the corrosion resistance is very high. Slim hole (SH) diameter and standard size (FS) of conventional sucker rod and polished rod have plating metal (SM) .Under normal circumstances, there is two wrench on the coupling and the outside circle, but according to user we can also provide no wrench square.Hardness of coupling T  is HRA56-62  after heat treatment, with good corrosion resistance and wear resistance, when using sucker rod coupling,is connecting with the same size rod, sub-coupling is used for connecting to difference size of the sucker rod or connect the polished rod and rod string .Coupling type: Class T (full size and slim hole ) ,Class SM (full size and slim hole ).



CHEMICAL COMPOSITION

Nominal Size

5/8 in.

3/4 in.

7/8 in.

1 in.

1-1/8 in.

in.

mm

in.

mm

in.

mm

in.

mm

in.

mm

Full Size Sucker Rod Coupling、Full Size Polished Rod Coupling and Full Size Sub-Coupling

ODª
Outsside Dimension

Size

1.5

38.1

1.625

41.28

1.812

46

2.187

55.6

2.375

60.33

Tolerance

0.005

0.13

0.005

0.13

0.005

0.13

0.005

0.013

0.005

0.13

-0.01

-0.25

-0.01

-0.25

-0.01

-0.25

-0.01

-0.25

-0.01

-0.25











Size

4

101.6

4

101.6

4

101.6

4

101.6

4.5

114.3

Lª

Length

Tolerance

0.062

1.57

0.062

1.57

0.062

1.57

0.062

1.57

0.062

1.57

0

0

0

0

0

0

0

0

0

0

D2ª

Size

1.365

34.67

1.49

37.82

1.677

42.6

1.99

50.55

2.177

55.3

Minimum

D3ª;

Size

1.11

28.19

1.253

31.83

1.378

35

1.566

39.78

1.753

44.53

Tolerance

0.015

0.38

0.015

0.38

0.015

0.38

0.015

0.38

0.015

0.38

-0.055

-1.39

-0.073

-1.85

-0.073

-1.85

-0.073

-1.85

-0.073

-1.85

BC1ₑ  Maximun

Size

0.0625

1.59

0.0625

1.59

0.0625

1.59

0.09375

2.38

0.9375

2.38

Slim Hole Sucker Rod Coupling、Slim Hole Polished Rod Coupling and Slim Hole Sub-Coupling

Size

1.25

31.8

1.5

38.1

1.625

41.3

2

50.8

ODª

Outsside Dimension

Tolerance

0.005

0.13

0.005

0.13

0.005

0.13

0.005

0.013

-0.01

-0.25

-0.01

-0.25

-0.01

-0.25

-0.01

-0.25










Size

4

101.6

4

101.6

4

101.6

4

101.6

Lª

Length

Tolerance

0.062

1.57

0.062

1.57

0.062

1.57

0.062

1.57

0

0

0

0

0

0

0

0

D2ª

Size

1.177

29.9

1.427

36.25

1.552

39.42

1.927

48.95

Minimum

Size

1.09

27.69

1.253

31.83

1.378

35

1.566

39.78

D3ª

Tolerance

0.015

0.38

0.015

0.38

0.015

0.38

0.015

0.38

-0.035

-0.89

-0.073

-1.85

-0.073

-1.85

-0.073

-1.85

BC1ₑ Maximun

Size

0.03125

0.79

0.03125

0.79

0.03125

0.79

0.03125

0.79

a As shown in figure C.1

b The nominal size of the coupling is the same size as the sucker rod

c Slim hole coupling is the reduces of the outer diameter

d The size of the outer diameter and length shall be determined by the maximum thread size

e See figure c.2. The type is selected by the manufacturer

f For the full size and slim hole diameter coupling of 1 inch L=4.500in.(114.3mm)

g For the full size sub-coupling of 1-1/8 inch L=5.000in.(127.0mm)



Coupling Chemical Component

AISI

C

Si

Mn

P

S

Cr

Ni

Mo

V

Cu

Al

1541

0.36-0.45

0.15-0.35

1.35-1.65

≤0.04

≤0.04

≤0.3

≤0.35

≤0.06

0.04-0.09

≤0.35

≤0.035

5140

0.38-0.45

0.17-0.37

0.4-0.7

≤0.025

≤0.025

0.8-1.1

≤0.3

/

/

≤0.2

/

4135

0.32-0.40

0.17-0.37

0.4-0.7

≤0.025

≤0.025

0.8-1.1

≤0.3

0.15-0.25

/

≤0.2

/

4120

0.17-0.24

0.17-0.37

0.4-0.7

≤0.025

≤0.025

0.8-1.1

≤0.3

0.15-0.25

/

≤0.2

/



Tensile Strength（MPa）

Yield Strength（MPa）

Elongation
（%）

Reduction of Area（%）

≥655

≥405

≥16

≥48



Hardness

GRADE T

GRADE SM

56HRA-62HRA

＞595HV200



Hardness

GRADE T

GRADE SM

56HRA-62HRA

＞595HV200


Product Tags: Class T Coupling , sub coupling , spray coupling
