GL- 702 double shafts , double blades Automatic medical cotton tape / masking tape / pvc electrical tape cutting machine
Function: cutting BOPP / PVC / PE /PET/ EVA / 3M/Mylar / masking /foam / cloth /double sticky /Kraft / aluminum duct tape etc from jumbo roll.

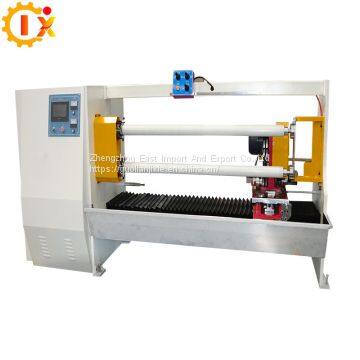

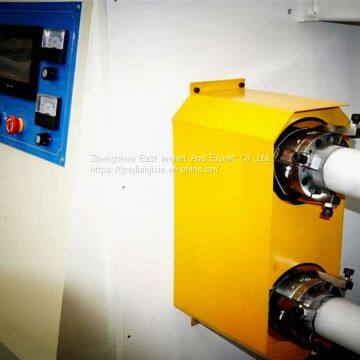

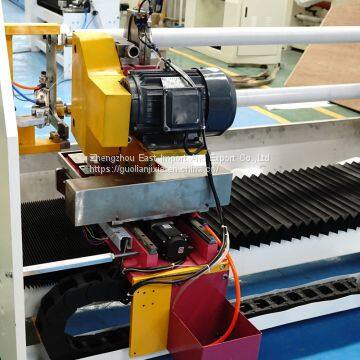

masking tape cutting machine detailed photo:
Technical parameters of masking tape cutting machine:
Item |
GL-702-1300 |
GL-702-1600 |
Dimensions |
3.20m*1.2m*1.65m |
3.50m*1.22m*1.65m |
Cutting width |
1-1300mm |
1-1600mm |
Max.cutting speed |
35cuts/min |
35cuts/min |
Max.cutting diameter |
230mm |
230mm |
Cutting blade diameter |
Φ250mm,300 (size ordered) |
Φ250mm,300(size ordered) |
Paper core diameter |
1”-3” |
1”-3” |
1.Double shafts, double blades
2. AC motors for cutting blade and cutting shaft with inverters speed changing .
3.Positioning system for cutting: servo motor to control more accurate position.
4. Auto liquid silicon water spray cooling system: to avoid the adhesive sticking on the blade and ensure the smooth cutting.
5. Japan Mitsubishi Automatic PLC with touch screen control panel , 20 modes for size pre-setting each time & auto changing when cutting.
All our certification is REAL ONE.NOT FAKE,NOT FAKE,NOT FAKE!!!
Please Contact Us To Show You masking tape cutting machine making tapes .
masking tape cutting machine production process
masking tape cutting machine raw materials:
Production process :
Final product:
We have our own R&D department, talented engineers with more than 10 years experience. We dedicate to supply superior quality products to customers all over the world. Customers can visit our factory and production base any time.
As the development of our business activities,our products have gained good reputation in east Asia, southeast Asia, central Asia, Arab countries like Korea, Australia, Mexico, Thailand, Vietnam, Jordan, Egypt Pakistan, Turkmenistan,UAE, Russia etc.
We firmly stick to honesty principal to build good partnerships with all customers. We will join your hands together to create more wealth for our society!
Two hours from Guangzhou to our factory by air.
90mins by air from Shanghai .
We directly pick you up at our Xinzheng International Airport.
Our factory address:
Xueyuan Road NO.168 ,Mazhai Industrial Park,Erqi District, Zhengzhou City ,Henan Province,China.
This is the feedback from the customer:
1. Product quality: Quality tesing records in manufacturing & expriments.
2. Price guarantee: Fine & brand quality materials,parts on machine.
3. Delivery guarantee: Related brochures along with delivery:
operation&maintenance;
installation drawing;
operation books for relater parts of outer supply;
spare parts list and stand accessories.
4. After sales guarantee: The seller is responsible for changing the parts which have the quality problem of the machines in one year,but except from the wearing parts and the quality problem were leaded by wrong operation and other man-made factors,and the quality problem should be confirmed by two sides.
Shipping:by express,by air,by sea
packing:carton box,wooden frame,wooden case,fly case
