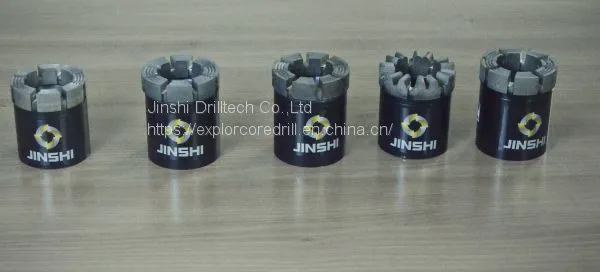

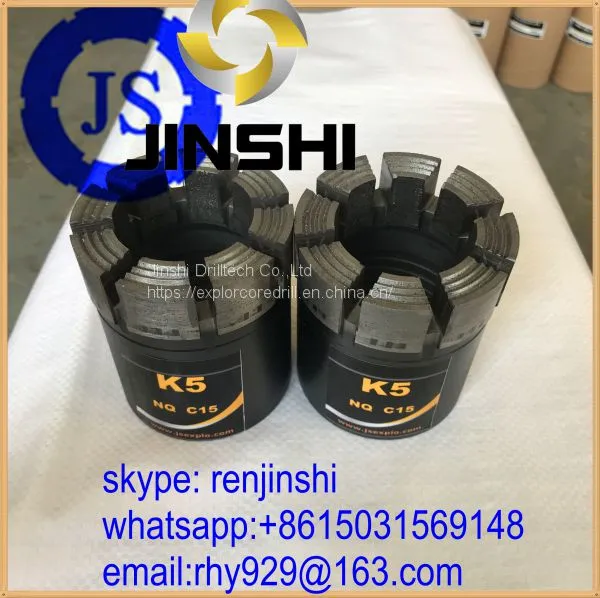

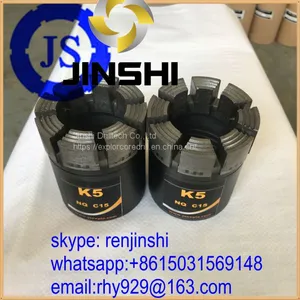

High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit

High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit thumbnail-1
High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit thumbnail-2
High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit thumbnail-3
High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit thumbnail-4
High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit thumbnail-5
High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit photo-1
High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit photo-2
High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit photo-3
High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit photo-4
High Quality Top Sale Diamond Core Drill Bits for Hard Rock Mining nq hq nx Diamond Core Bit photo-5
US$ 50 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JS(Jinshi)
Place of Origin:
China
Model Number:
NQ,HQ,PQ, BQ
Contact Supplier Request Quote Chat Now
Jinshi Drilltech Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JS(Jinshi)
Place of Origin China
Model Number NQ,HQ,PQ, BQ
Product Description
Product Application
Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.
Depending on the range of application as well as the cutting media on the core bits, Forsun makes six types of core bits:

---Impregnated Diamond Type

---Surface set Diamond Type

---Tungsten Carbide Type

---PDC Type

---PCD Type

---Electroplated Diamond Type

Generally, an overall Drilling System consist of core bits, reaming shells, core barrels, drill rods and drilling rig.


matrix height: 6mm， 9mm, 12mm, 26mm,25mm

hardness： K1,K2,K3,K4,K5,K6,K7,K8,K9,K10,K11
Main Size

Wireline series: Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76

T2 / T series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86

TT series: TT 46, TT 56

T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

T6S series: T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146

B series: B46, B56, B66, B76, B86, B101, B116, B131, B146

MLC series: NMLC, HMLC

LTK series: LTK48, LTK60

WF series: HWF, PWF, SWF, UWF, ZWF

WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)

WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)

WM series: EWM, AWM, BWM, NWM, HWM

Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H

Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm

Russian standard: 59, 76, 93, 112, 132, 152 mm

Certifications
Detailed Images
DRILL ROD MACHINERY WORKSHOP

Name:BQ,NQ,HQ,PQ DRILL ROD

Brand: JS

Original: CHINA


Main Features
DRILL ROD UPSET, HEAT TREATMENT, THREAD HARD
Machine Parts

ALL KINDS OF DRILL PARTS LIKE HEAD ASSEMBLY, LOCKING COUPLING, LANDING RING,STABLIZER ,CORE LIFTER, CORE LIFTER CASE AND STOP RING

Main Features
DRILL TOOLS SUCH AS TUBE WRENCH, DRILL  ROD WRENCH,INNER TUBE WRENCH AND OUTER TUBE WRENCH
Our Service
Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

*HELP OVERSEA

Packing & Delivery
Packaging
Size
2000 (L) * 1000 (W) * 1000 (D)
Weight
1.2 T
Packaging Details
The normal package is iron box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
3100 (L) * 510 (W) * 410 (D)
Weight
1.2 T
Packaging Details
The normal package is iron bundless
NQ 3m,HQ 3M AND PQ 3M
