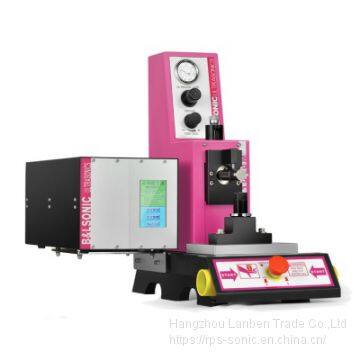

Σ1000M 35Khz Ultrasonic Welding Machine for Metal Welding

Introduction:

   Ultrasonic welding machine with modes of time model and engry model, it can automatically track and display real-time frequency, with amplitude stepping function, welding amplitude range up to 10-100(1%accuracy). There is also amplitude compensation; welding quality management (time,energy mutual detection), including clear traceable welding records (operation statistics) to control your welding quality in real time. It also features transducer overload protection, mold impedance analysis and protection to protect your equipment. Powerful, high quality and high welding stability.

*Full range of modular design
*High-strength rigid structure
*Digital ultrasonic generator
*Maximum pressure 1000N

*4.3 inch color touch screen.
*Chinese and English use interface.
*Germany designed digital ultrasonic generator, which can accurately adjust and stabilize various parameters, can safely protect the control box.
*Electronic pressure measuring device.
*Precision electronic ruler for welding depth control with accuracy of +0.01mm.
*4 different trigger modes.
*5 different welding modes (time, energy, maximum power, relative position, absolute position welding mode).
*Welding parameter data storage.
*Ultrasonic amplitude adjustment 50%-100%.
*Ultrasonic frequency automatic tracking.
*Quality management function.
*Printer output function (optional).
