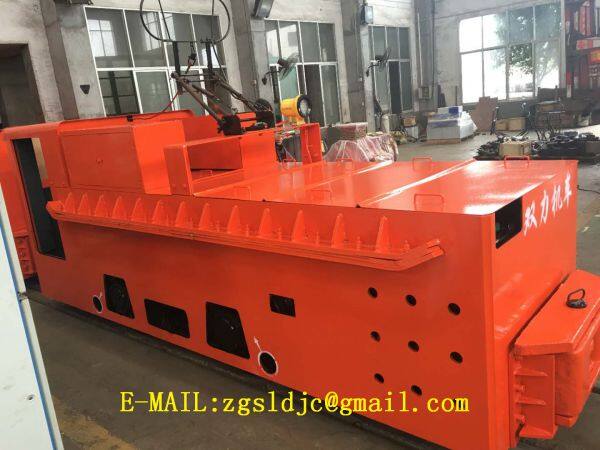

Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v

Xiangtan Shuangmali Material Trade Co.,Ltd
Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v thumbnail-1
Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v thumbnail-2
Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v thumbnail-3
Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v thumbnail-4
Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v thumbnail-5
Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v photo-1
Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v photo-2
Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v photo-3
Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v photo-4
Overhead Line Mining Locomotive Trolley Electric Locomotive Cjy7/6g(b/p)-250v photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
CJY
Brand Name:
Shuangli
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number CJY
Brand Name Shuangli
Place of Origin China
Speed (km/h) 25km/h

Specifications:

1.Long service life of gear
2.More powerful traction effort
3.Faster running speed


Specification:


Adhesive WeightCustomized
Track Gauge600, 762 or 900 mm
Traction13.05 kN,15.09 kN
Max. Traction17.2 kN
Speed11 km/h
Voltage550 V,250 V
Power24kW*2 , 21kW*2
Size(L*W*H)4470 mm
1054, 1216 or 1354mm
1550mm
Pantograph1800~2200mm
Wheelbase1100mm
Wheel DiameterΦ680 mm
Min. Turning Radius7m
Electromechanical ControllerResistance, IGBT or AC Converter

Brake

Mechanical Brake


Description:

Locomotive us ing DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.

The products are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.

Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.



Product Tags: Explosion-Proof Coal Mining Trolley Locomotive , Electric Locomotive for Mining , Electric Mine Locomotive
