Compact Tape Casting Coater With Vacuum Chuck and Heating Cover
US$ 1680 - 4750
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CHUANGDA
Place of Origin:
China
Model Number:
MSK-AFA-III
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
10 days
Related Products
-
EZ4 Compact Vacuum Spin Coater for 4inch Wafer Coating With Oilless Vacuum PumpUS$ 1680 - 1750MOQ: 1 Set -
6 Inch Wafer Spin Coating Machine With Programmable ControlUS$ 1680 - 5750MOQ: 1 Set
-
Vacuum Spin Coater for Max 8 Inch Wafer CoatingUS$ 1680 - 5750MOQ: 1 Set
-
Spin Coater for Max 8 InchUS$ 1680 - 5750MOQ: 1 Set
-
Laboratory Dip Coating Machine With Heating Plate DP100-HUS$ 1680 - 3750MOQ: 1 Set
Brand Name
CHUANGDA
Place of Origin
China
Model Number
MSK-AFA-III

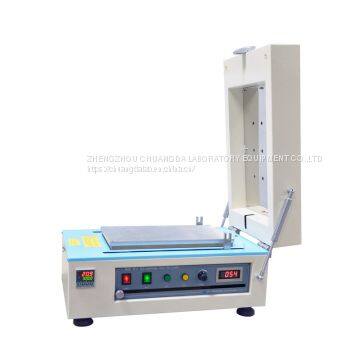

MSK-AFA-III is a CE Certified compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, One 100 mm width adjustable micrometer applicator (doctor-blade). Heating plate with digital controller either on top or bottom is optional for drying up to 100°C with +/-1°C temperature accuracy. This equipment can be used for researchers on ceramic tape castings and Li-Ion battery electrode coating
Technical Parameter
Model |
MSK-AFA-III |
Working Power of Coater |
Power adaptor: Input 100-240VAC, Output 24VDC |
Traverse Speed |
*10 - 100 mm/sec variable *Accuracy: +/-10 mm/sec |
Stroke Length |
10 - 250 mm adjustable by using Adjustable Position Switch |
Vacuum Chuck |
*Vacuum chuck made of Aluminum alloy with *Vacuum Chuck Dimensions: 365mm(L) x 200mm(W) Note: You may order a glass plate to coat slurry on porous substrate |
Vacuum Pump |
120L/min Oilless Vacuum Pump |
Pump connector |
*Vacuum control power switch is located on the front panel, and power plug ( female ) built in the back of the machine to connect an optional vacuum pump. *The pump connector is compression type 8mm O.D tube fitting which is located on the back panel |
Heating Cover |
*Pre-installed on the top cover *Built-in digital temperature controller with accuracy of +/-1°C *Suspension support helps open cover easily and safely *Max. Heating Temp.: 100°C Note: In order faster and uniform heating, please preheated vacuum chunk to 60- 70oC before coating, and keep heating during coating, then close cover and increase temperature to ~100oC after coating |
Accessories: Film Applicator |

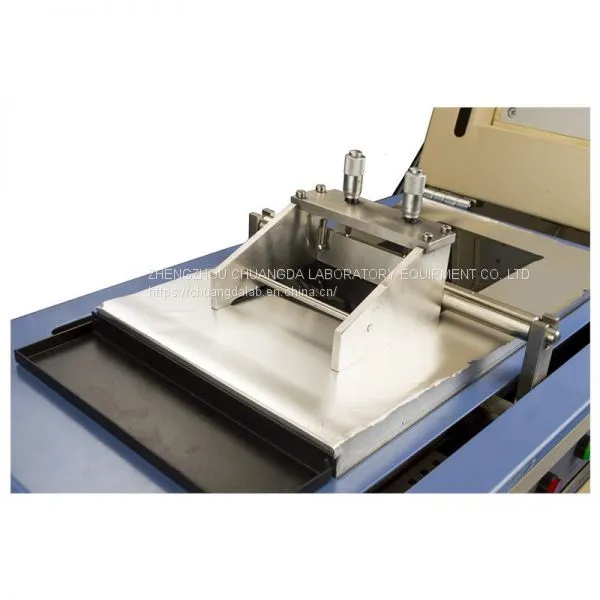

*One 100 mm width micrometer adjustable film applicator is included (thickness adjustable from 0.01 - 3.5 mm) *Travel Pusher and waste plate are included for pushing the Film Applicator |
Product Dimensions |
550mm(L) x 330mm(W) x 320mm(H) |
Warranty |
One Year limited warranty with lifetime support |
Gross Weight |
80Kg |
