40Khz Ultrasonic Cutting And Sealing Equipment for Processing And Trimming The Edge of The Blanket
- 100 Piece / Pieces per Month
- shanghai
- T/T
- 20khz Ultrasonic Cutting for Industrial Applications on Hard And Soft Materials
- 35Khz Ultrasonic Deburring Equipment for Electronic Components Cutting & Trimming
- 20khz Ultrasonic Cutting System One-piece Construction Blade for Automated Machinery
- 30Khz Ultrasonic Cutting Equipment Be Mounted on Robot
- 40Khz Ultrasonic rubber Cutting machine high amplitude
- 40Khz Ultrasonic Cutting Knife with Blade Replaceable
Product Details
Brand Name: | RPSsonic | Place of Origin: | China | Model Number: | RPS-CUT-40K |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
What's the principle of ultrasonic cutting?
The principle of an ultrasonic cutter is completely different from conventional one. It uses the energy of ultrasonic to melt the material to be cut. Therefore, the ultrasonic cutting does not require a sharp cutting edge, nor does it require a large pressure, and does not cause any chipping or breakage. At the same time, since the cutting blade is subjected to ultrasonic vibration, the frictional resistance is particularly small, and the material to be cut is not easily adhered to the blade. This is particularly effective for cutting viscous and elastic materials, frozen materials such as food, rubber, etc., or objects that are inconvenient to apply pressure.
The basic structure of the ultrasonic cutting machine is an ultrasonic transducer, a horn, a cutting blade (tool head), and generator. The ultrasonic generator converts the commercial power into a high-frequency high-voltage alternating current and transmits it to the ultrasonic transducer. An ultrasonic transducer is actually equivalent to an energy conversion device that converts input electrical energy into mechanical energy, ie, ultrasonic waves. Its manifestation is that the transducer moves back and forth in the longitudinal direction. The frequency of the telescopic motion is equivalent to the frequency of the high frequency alternating current supplied by the driving power source. The role of the horn is to fix the entire ultrasonic vibration system and to amplify the output amplitude of the transducer. The cutting blade (tool head) further enlarges the amplitude on the one hand and focuses the ultrasonic wave. On the other hand, the ultrasonic wave is output, and the ultrasonic energy is concentratedly input to the cutting portion of the material to be cut by using a similar cutting edge of the cutting blade. Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. At this time, as long as a small cutting force is applied, the purpose of cutting the material can be achieved.
Similar to conventional cutting, the basic components required are a cutter and an anvil, and the ultrasonic cutter has two basic structures. Depending on the location of the ultrasonic application, we may wish to divide it into an ultrasonic cutter cutter and an ultrasonic cutter cutter.
Introduction:

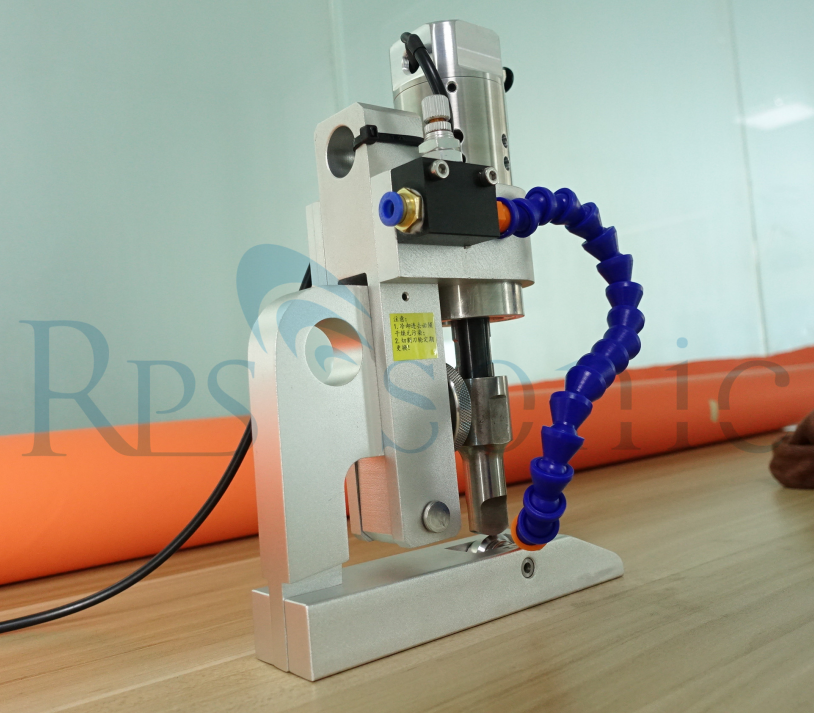

Ultrasonic Slitting/Sealing,40Khz Ultrasonic Cutting And Sealing Equipment for Processing And Trimming The Edge of The Blanket,Ultrasonic slitters cleanly cut and seal the edges of synthetic or blended fabrics, eliminating the disadvantages of hot wire or rotating knives. Fraying, unraveling, or beading along the cut edge are eliminated.
Slitters may be mounted on a loom to cut the non-selvedge edge of woven fabric. Equipment is available to operate at the slow speed of weaving looms without burning or beading me fabrics. With special framework and motor drive, crosscuts can be made on the loom.
Parameter
Application areas
Ultrasonic cutting sewing equipment is mainly suitable for fabric, suitable materials such as butyrate, cellulose, nylon, polyester, polyethylene, polypropylene, PVC and other materials. It is also suitable for a wide range of tubing in automotive, metal, pharmaceutical, food, cosmetic, medical and scientific applications.
Process flexibility
Enhanced precision
Cleaning edages
cost reduce
Energy efficient
worker safety
Enviroment Friendly
No water waste disposal
