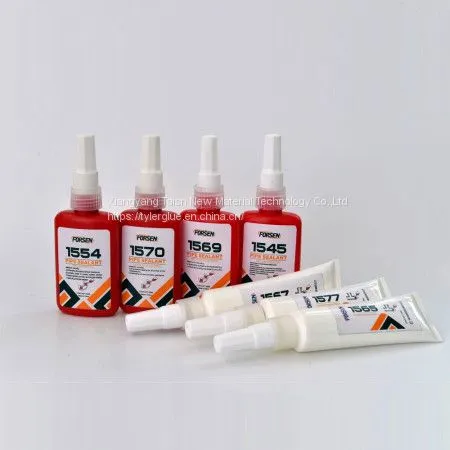

Help CenterWholesale 50ml 545 Hydraulic Pneumatic Sealant Thread Sealant
Related Products
-
Permatex Quality Anaerobic Thread Locking Adhesive ThreadlockerUS$ 0.45 - 0.5MOQ: 3000 Pieces -
Red Color High Strength Anaerobic Thread Locking Adhesive 271, Threadlocker 271US$ 0.45 - 0.5MOQ: 3000 Pieces
-
Removbale Thread Locking Adhesive, Medium Strength Anaerobic Threadlocker 242US$ 0.45 - 0.5MOQ: 3000 Pieces
-
Red Color Loctite Quality 271 Threadlocker Thread Locking AdhesiveUS$ 0.45 - 0.5MOQ: 3000 Pieces
-
Removbale Thread Locking Adhesive, Medium Strength Loctite Type Anaerobic Threadlocker 242US$ 0.45 - 0.5MOQ: 3000 Pieces
545 Pipe Thread Locking sealant (Same as henkel loctite 554)
Technical data sheet
Product model |
Container (ml) |
color |
Viscosity (Mpa.s) |
Screw (mm) |
sealing pressure (Mpa) |
temperature range (℃) |
fixture time/full cure time |
545 |
50ml/250 |
purple |
14000 |
M36 |
69 |
-50~150 |
40min/24hrs |
554 |
50ml/250 |
red |
2500 |
M80 |
69 |
-50~150 |
40min/24hrs |
567 |
50ml/250 |
white |
55000 |
M80 |
69 |
-50~200 |
20min/24hrs |
568 |
50ml/250 |
yellowish |
400 |
M36 |
69 |
-50~150 |
20min/24hrs |
569 |
50ml/250 |
brown |
400 |
M36 |
69 |
-50~150 |
30min/24hrs |
577 |
50ml/250 |
yellow |
24000 |
M80 |
69 |
-50~150 |
20min/12hrs |
545 Piping thread sealant features:
Hydraulic and pneumatic sealant.
Low strength, fast curing. Used for the sealing and locking of high pressure hydraulic system and taper thread below M36.
It won’t contaminate hydraulic system, and can be used on surface with light oil stain.
It contains no filing, and blocks no valves and filtering systems.
Use and storage:
1) Oil removal, clean and dry on the thread surface.
2) The thread standard (clearance, thread, screwing in more than 5 threads).Drop the glue in the external thread, the first thread can't glue, glue above 3 threads, screw in the tightening of specified torque, or the specified direction.
3) Fully cured by 24 hours, cure slowly below 15 ℃ and on inactive surface, use 7649 to accelerate curing.
4) Usually assembled with hand tools, 2 inches parts can be heated to 260 ℃ to remove.
Note: Should not be used on plastic, cannot be used for pure oxygen and rich oxygen sealing system.Tube need to keep enough oxygen to keep it liquid.
