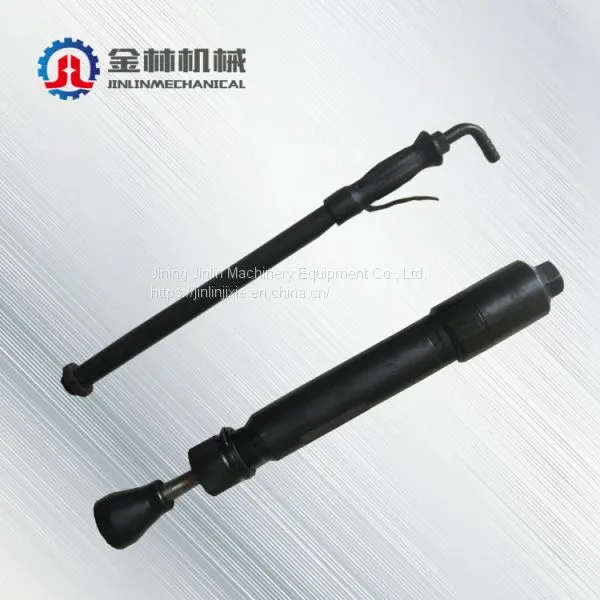

D10 Air Pneumatic Sand Rammer Tamping Machine Widely Used In Concrete And Other Hard Objects Demolition

D10 Air Pneumatic Sand Rammer Tamping Machine Widely Used In Concrete And Other Hard Objects Demolition thumbnail-1
D10 Air Pneumatic Sand Rammer Tamping Machine Widely Used In Concrete And Other Hard Objects Demolition thumbnail-2
D10 Air Pneumatic Sand Rammer Tamping Machine Widely Used In Concrete And Other Hard Objects Demolition thumbnail-3
D10 Air Pneumatic Sand Rammer Tamping Machine Widely Used In Concrete And Other Hard Objects Demolition photo-1
D10 Air Pneumatic Sand Rammer Tamping Machine Widely Used In Concrete And Other Hard Objects Demolition photo-2
D10 Air Pneumatic Sand Rammer Tamping Machine Widely Used In Concrete And Other Hard Objects Demolition photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Jinlin
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Jining Jinlin Machinery Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Port of China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jinlin
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
Condition New

Pneumatic tamping machine is powered by compressed air. It is suitable for the tamping of sand moulds of medium-sized castings, concrete and brick billets.


Application Scope

Model D3 is very small and can be used in narrow working space.

Model D4 is light and suitable for tamping sand core or small sand mould.

Model D6 is suitable for modelling of medium-sized castings.

Model D9, with large working capacity, is suitable for tamping large sand castings.

Model D10, with super working ability, is suitable for tamping of sand mould of super large castings.



Pneumatic Tamping Machine Parameters Details:


Model

D3

D4

D6

D9

Machine weight

2.5kg

3.6kg

6kg

9kg

Use of air pressure

0.63 mpa

0.63mpa

0.63mpa

0.63mpa

Gas consumption

0.25 l/s

0.35l/s

0.45l/s

0.65l/s

Number of shocks

900hz

800hz

700hz

600hz

Piston diameter

17mm

20mm

25mm

32mm

Structural of travel

92mm

128mm

155mm

207mm

Hammer head diameter

32mm

36mm

42mm

54mm

Endotracheal diameter

13mm

13mm

13mm

13mm

Overall Length

410mm

480mm

975mm

1180mm


Product Tags: Pneumatic Tamping Machine , Carbon Brush Tamping Machine , Hydraulic Tamping Machine
