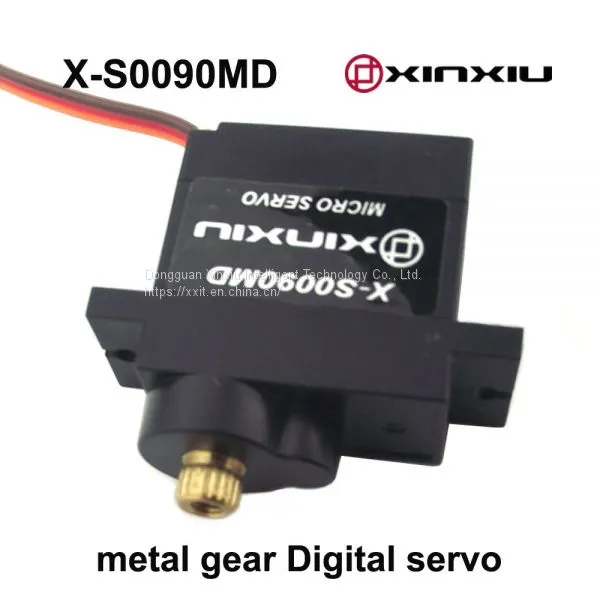

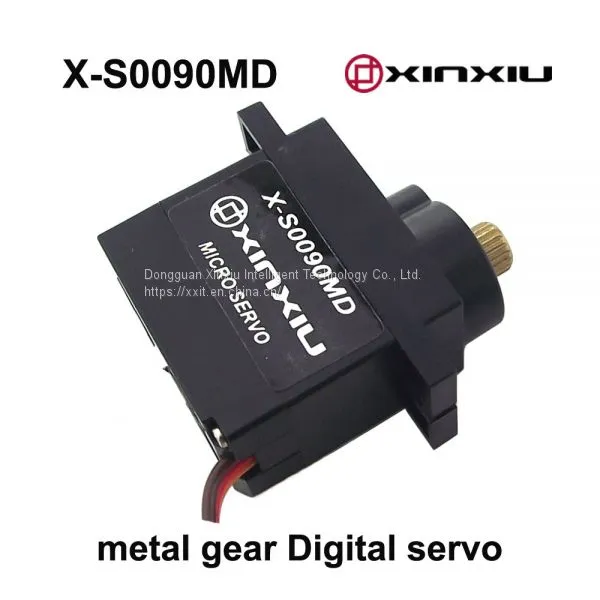

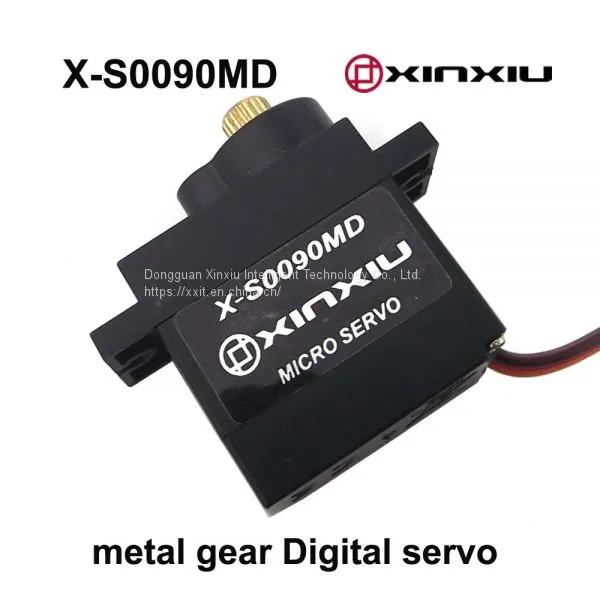

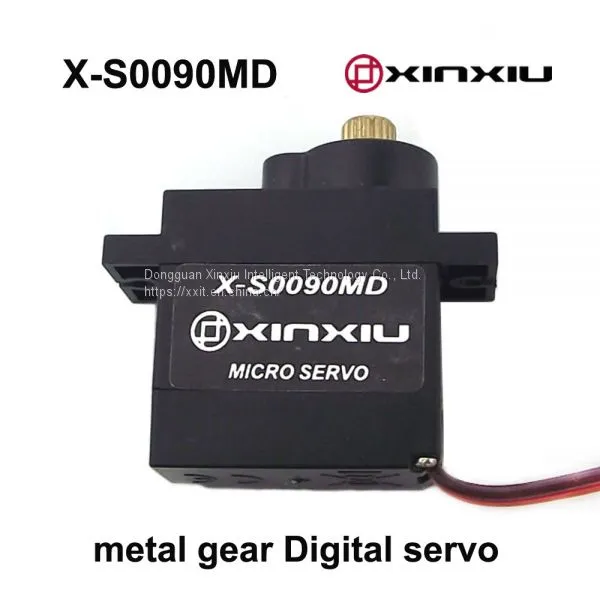

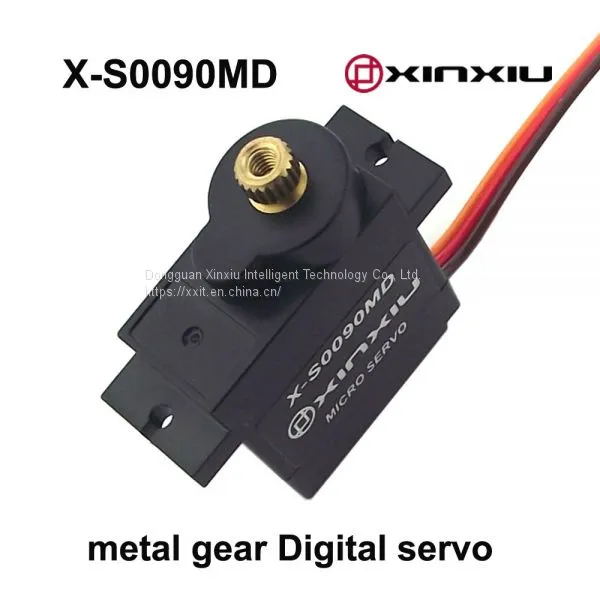

9g micro servo metal gear for rc plane ,rc car,rc helicopter
Features:
9g micro servo rc serco,
metal gear
for rc airplane ,rc car,rc helicopter
Specifications:
| Item No. | X-S0090MD |
| Voltage: | 4.8V ~ 6.0V |
| Speed: | 0.10sec/60deg (4.8v) 0.08sec/60deg (6.0v) |
| Torque: | 1.6kg.cm (4.8v) 1.8kg.cm (6.0v) |
| Size: | 22.9mmX12mmX22.5mm |
| Weight: | 12 gram |
| Motor: | Brushed |
| Gear Train: | Plastic |
| Ball Bearing: | No |
| Type: | Digital |
Plug:JR
wire color: brown(-) red (+) orange(S)
Servo arms & screw included
0.5-2.5ms 180degree:PWM 0.5-2.5ms the servo top rotate angle is 180degree,
0.5-2.5ms 270degree:PWM 0.5-2.5ms the servo top rotate angle is 270degree,
0.5-2.5ms 360degree:PWM 0.5-2.5ms the servo top rotate angle is 360degree,360degree continuous rotation ( PWM 1500US,servo stop,other PWM servo turn continiuously,when 1000 -1500us,the far to 1500us,servo turn faster,when 1500us -2000us,the far from 1500us,servo turn faster )
Import note:most transmitter PWM is 1-2ms,so if you use transmitter to control the servo,the totation angle will be less,
Packing include :
1pcs x X-S0090MD servo
Accessaries:servo horns,and mounting screws
