Carbon Fiber Heat Lamps' Description

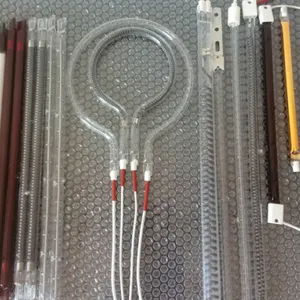

Carbon fiber heating lamp is a kind of far infrared radiation source, which is made by weaving carbon fiber into electric heating wire and putting it into quartz tube. The lamps can be divided into straight-line heating lamps with mandrels, U-shaped heating lamps, pear-shaped heating lamps and special-shaped heating lamps according to their shapes.
Carbon fiber heating lamps are often used as an infrared emitter in industry, such as to dry paints, plastics, food, chemical liquids, etc.
Compared with hot air drying, infrared drying has the following advantages: more energy conservation, faster temperature rise, more environmentally friendly， wider scope of application and less space.
Compared with stainless steel electric heating element or fin tube heat exchanger，infrared drying has the following advantages: Higher energy efficiency, faster temperature rise （The surface temperature of the lamp can reach 500 ℃ in 10s）, Stronger corrosion resistance to acid and alkali, Shorter thermal lag time, power without attenuation, no impulse current at Start-up.
Application Field of Carbon Fiber Heat Lamps:
l Gelling and curing of powder coating on metal bottle openers;
l Widely used in heater, fan heater, disinfection cabinet, far-infrared physiotherapy, cosmetology equipment and other kinds of heating and far-infrared health care.
l Widely used in food drying machinery, tea leaf, tobacco drying machinery, wigs drying and all kinds of far-infrared drying oven field.
l Widely used in greenhouse culture with heat preservation, pump house drying and dehumidification.
Use Method of Lamps

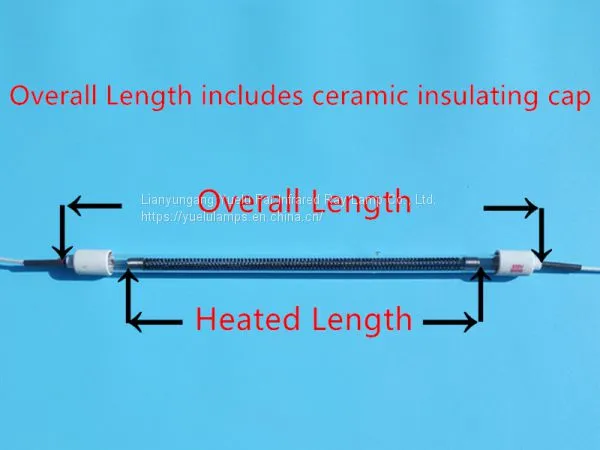

1. Length test specification：
Overall Length includes ceramic insulating cap，Heated Length.

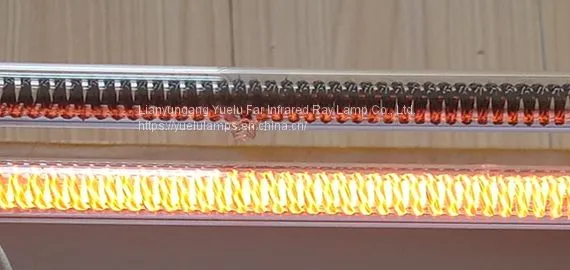

Display of Carbon Fiber Heating Lamps：
Surface Temperature of Heating Lamps Above 500 ℃，At the same time, it emits yellow light. When the heating lamp is working, it can be sprayed with cold water or put into cold water, and the heating lamp will not burst and damage.
Introduction of Lamps Parameters
Product Description |
Carbon Fiber Heating Lamps |
||
Tube Material |
Single Tube |
||
Tube Diameter(mm) |
φ12 |
φ14 |
φ18 |
Overall Length(mm) |
300-1300 |
350-1800 |
600-2300 |
Tube Thickness(mm) |
1.2 |
1.25 |
1.5 |
Heated Length(mm) |
220-1200 |
270-1700 |
520-2200 |
Tube Material |
Twin Tube |
||
Tube Diameter(mm) |
18*9mm |
23*11mm |
33*15mm |
Overall Length(mm) |
350-1300 |
350-1800 |
600-2300 |
Tube Thickness(mm) |
1.2mm |
1.5mm |
2.2mm |
Heated Length(mm) |
220-1200 |
270-1700 |
520-2200 |
Power（W） |
500-2000 |
||
Connection mode |
Two or One Side Connection |
||
Tube Coating |
Transparent, ceramic white, gold |
||
Voltage(v) |
80-750v |
||
Cable Type |
1. Silicone rubber cable can be used at 250℃ 2. Teflon lead wire can be used at 300℃ 3. Naked nickel wire can be used at 750℃ |
||
Lamp Position |
Horizontal or vertical |
||
Send Inquiry to This Supplier
