air clean filter cartridge dust collector depoussiereur electrostatique
Description:

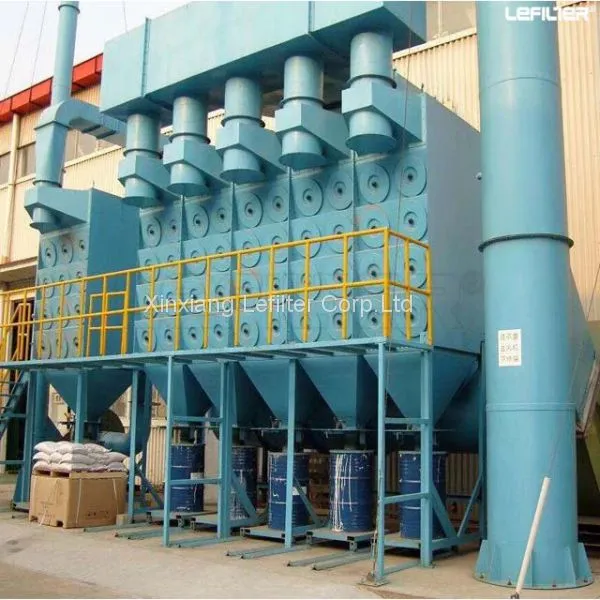

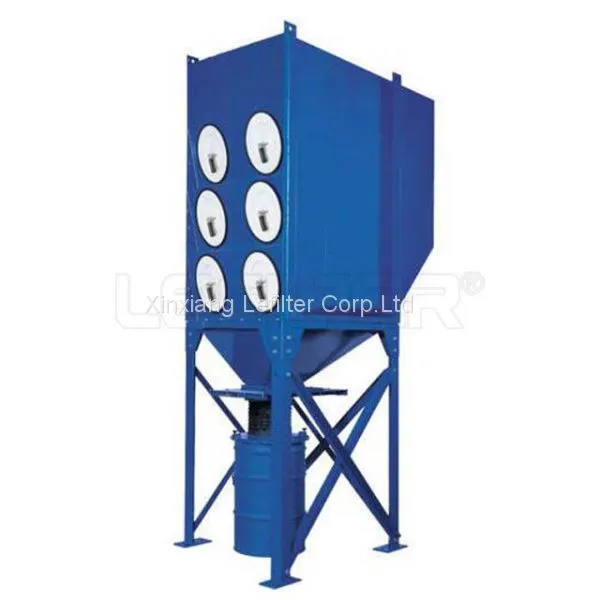

The cartridge dust collector is composed of a filter element or a pulse sprayed dust collector. It is divided by two ways, installation method and filter material. For installation method, it can be divided into oblique plug type, side mount type, hoisting type and top mount type. For the filter material, it can be divided into long fiber polyester type, composite fiber type, antistatic type, flame retardant type, and membrane type,Nano type etc.
Features:
1, For the filter material is folded into a cylindrical shape, the density of the filter material is large, so the dust collector is compact and small in size.
2. The same volume of dust collector filter area is relatively large, the filter wind speed is small, the resistance is not big
3.The air filter uses imported polyester fiber as the filter material, and a layer of submicron ultra-thin fiber is adhered to the general filter material, and the arrangement between the fibers on the adhesive layer is very tight, and the small mesh hole can be Most submicron dust particles are blocked on the filter surface;
4, High dust removal efficiency (generally up to 99.6%), easy operation.
Technical data sheet:
Model |
Qty of filter cartridge |
Filter cartridge size |
Filter area （㎡） |
Pulse valve number |
Filtration wind speed （m/min） |
Flow rate (m³/h） |
Efficiency of dust collection |
filtration resistance（Pa） |
Dimension（mm） |
Weight (Kg) |
||
L |
W |
H |
||||||||||
CDHR2-8 |
8 |
φ350×660 |
96 |
4 |
0.7~1.0 |
4000~5700 |
99.99% |
500~1500 |
2159 |
1022 |
3183 |
860 |
CDHR3-12 |
12 |
144 |
6 |
6000~8600 |
2159 |
1022 |
3673 |
1125 |
||||
CDHR3-24 |
24 |
288 |
12 |
12100~17200 |
2159 |
2044 |
3673 |
1715 |
||||
CDHR4-16 |
16 |
192 |
8 |
8000~11500 |
2159 |
1022 |
4163 |
1184 |
||||
CDHR4-32 |
32 |
384 |
16 |
16100~23000 |
2159 |
2044 |
4163 |
2052 |
||||
CDHR4-48 |
48 |
576 |
24 |
24200~34500 |
2159 |
3066 |
4163 |
2879 |
||||
CDHR4-64 |
64 |
768 |
32 |
32200~46000 |
2159 |
4088 |
4163 |
3720 |
||||
CDHR4-80 |
80 |
960 |
40 |
40300~57600 |
2159 |
5110 |
4163 |
4643 |
||||
CDHR4-96 |
96 |
1152 |
48 |
48300~69000 |
2159 |
6132 |
4163 |
5538 |
||||
CDHR4-112 |
112 |
1344 |
56 |
56400~80600 |
2159 |
7154 |
4163 |
6420 |
||||
CDHR4-128 |
128 |
1536 |
64 |
64500~92100 |
2159 |
8176 |
4163 |
7293 |
||||
