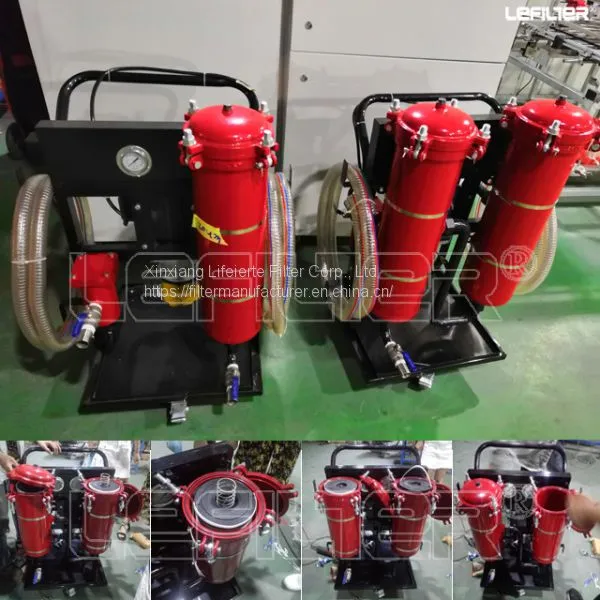

Portable fuel oil filter recycling machine LYC-50B
LYC-B Oil filter machine:
1.This oil filter vehicle contains a motor-driven special gear pump which has the traits of low noise, strong self-priming and smooth operation.
2.High pressure pipeline has overflow protection device which can effectively protect the safety of the hydraulic system.
3.It adopts thermal relay to prevent motor from damages caused by overload.
4.The coarse filter in suction orifice can protect oil pump and increase filter service life.
5.Two fine filters are equipped at the end of the pump which can make the oil reach high cleaness fast. Fine filter can achieve the different precision requirements according to customer's requirement.
6.The shell of oil filter vehicle adopts quick opening structure which makes the cover quickly opened so that the filter element can be replaced without any tools.
7. The panel is equipped with pressure gauge which continuously indicates the state of operation of system and the pollution of filter element when the vehicle is working.
Features:
1. Medium: general hydraulic oil, water/glycol, phosphate hydraulic fluid
2. Medium viscosity: ≤160 cSt
3. Flux: 32-100 L/min
4. Pressure: 0.6Mpa
5. Filter accuracy: 3-40um
LYC-B series models:
Model |
LYC-32B-*/** |
LYC-50B-*/** |
LYC-63B-*/** |
LYC-100B-*/** |
Flux(L/min) |
32 |
50 |
63 |
100 |
Pressure(Mpa) |
0.6 |
|||
Initial pressure loss(Mpa) |
≤0.01 |
|||
Coarse filter accuracy(um) |
100 |
|||
First fine filter accuracy(um) |
10,20,40 |
|||
Second fine filter accuracy(um) |
3,5,10,20,40 |
|||
Power(kw) |
0.75 |
1.1 |
1.5 |
2.2 |
Voltage(V) |
AC380V/3phases; AC220V/2phases |
|||
Weight(kg) |
78 |
96 |
102 |
120 |
Dimension(mm) |
520*350*950 |
720*680*1020 |
720*680*1020 |
720*750*1020 |
