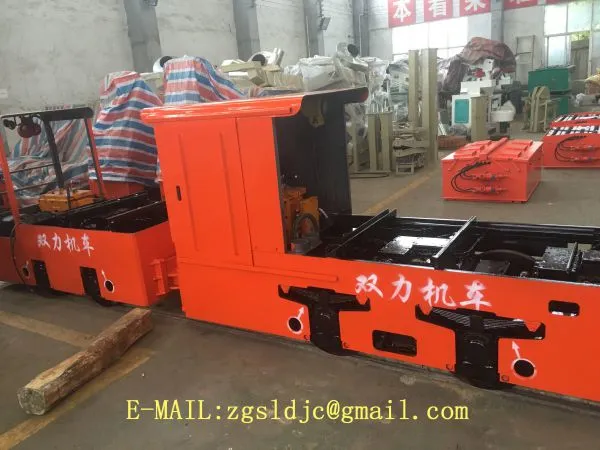

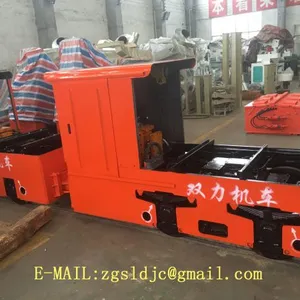

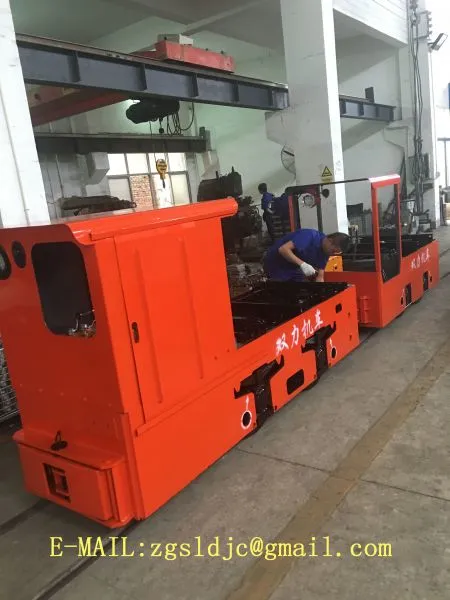

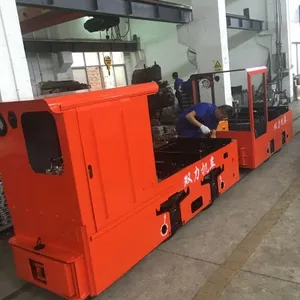

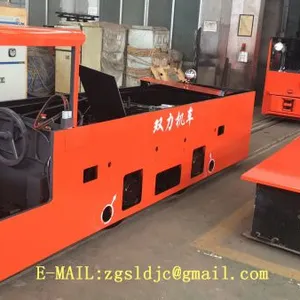

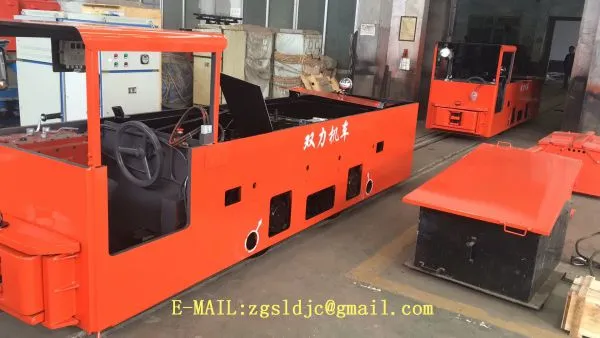

Railway Underground Locomotive Explosion-proof Cay45/1435gp 45t Narrow Gauge

Parameters:

locomotive Model No. specifications	CAY8/6GP	CAY8/7GP	CAY8/9GP
Adhesive / total weight (t)	8	8	8
Track gauge (mm)	600	762	900
Wheelbase (mm)	1100	1100	1100
Wheel diameter over tread	680	680	680
Coupler height over Steel rail (mm)	320/430	320/430	320/430
Min Curve radius (m)	7	7	7
Battery volt rating (V)	132(440Ah)	140(440Ah)	192(440Ah)
Braking method	Mechanical and electrical	Mechanical and electrical	Mechanical and electrical
Max tractive effort (KN)	22	22	22
Max speed (km/h)	20	20	20
Rated speed per hour (km/h)	10	10	10
Power of traction Motor (KW)	2*22	2*22	2*22
Transmission	Single level Spur gearing	Single level Spur gearing	Single level Spur gearing
Controller	AC frequency conversion	AC frequency conversion	AC frequency conversion
Over all dimensions (mm)	4460*1060*1590	4400*1340*1590	4460*1340*1590
Service & Application	Mucking in mining & tunneling	Mucking in mining & tunneling	Mucking in mining & tunneling

Description:

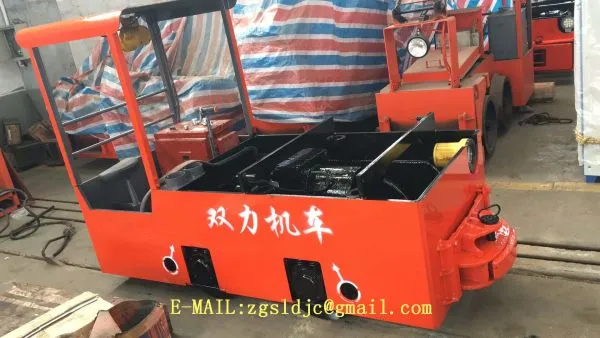

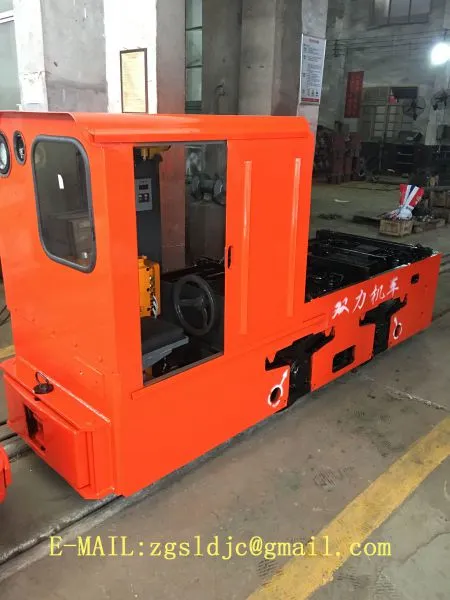

The 8 ton battery electric locomotive has a variety of models and voltage classes, and there are safety type and explosion-proof special type.It has the characteristics of large battery capacity and low locomotive center of gravity.

It has reasonable structure, high reliability and reliable operation.8T 140V electric locomotive is a new generation energy saving product.

It USES modern chopper technology and two-stage transmission and rubber shock absorber.

It has the characteristics of energy saving and reliable operation.

The above 8T locomotives can be derived from the user requirements of the dual-head driver room, using chopper speed control system, speed odometer installation.

Advantages

1.  Long life .

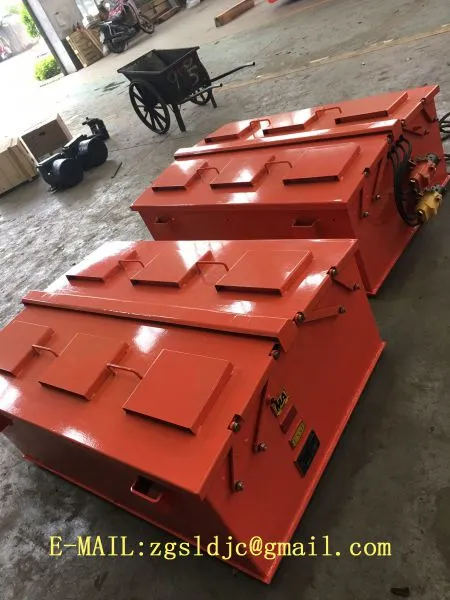

2. The battery life is greatly extended by adopting the tubular positive plate produced by the die casting machine with the world's advanced level.
3. The battery shell has high strength and is not easy to break.
4. Unique breathable cover design can effectively prevent the electrolyte from spilling out of the battery.

5. Special device is installed in the battery cover part, hydrogen removal and exhaust plug, so as to ensure that the amount of hydrogen precipitation in the process of use meets the safety standard, no spark will be generated, and explosion will be avoided.
