1- Introduction:
This production line can make different kinds fried snacks(such as rice crusts,chips bugles,pizza rolls,doritos etc )based on changing die moulds and manufacturing technique.The production process includes mixing,extruding,cutting,frying,flavoring and packing. The products are crispy and less oil.
2- Machines matrials: All the machines are made by 304 stainless.
3- Products: By changing the mould of machine we can produce rice crust,French fries,bugles,fish cake,pizza rolls,crisp fruit,triangles,and other product.
4- Voltage in china: Three phases:380V/50Hz,Single phase:220V/50Hz,we can make it according to customers' Local voltage of different countries.
Samples for reference:
5- Snack machinery production line flow:
| NO | Machine | Application/Use |
| 1 | Mixer | Mixed raw materials |
| 2 | Screw-conveyor | Send the raw material to the extruder |
| 3 | Twin-screw extruder | Extruded the material by the twin screw |
| 4 | Cutter-QY | Cutter the chips or sticks products |
| 4' | Shaping cutter | Cutter the bugles,doritos or 3D snacks |
| 5 | Continuous fryer | Frying the product,making it more crispy |
| 6 | Deoiling machine | Deoiling the product |
| 7 | Flavoring line | Flavoring the product |
6- Snack machinery production line technical parameters:
| Installed power | 88kw | 126kw |
| Power consumption | 65kw | 82kw |
| Production capacity | 100-150kg/h | 200-260kg/h |
| Dimension(L*W*H) | 15*2*3m | 22*2*3m |
7- Snack machinery production line features:
1.Low power consumption.
2.Long life and cheap spare parts.
3.By changing the mould of the machine,you can produce ball,stick,ring,star,wheel,flower and heart-shaped products.
4.The whole production line is easy to operate,only need two or three workers to control the production line.

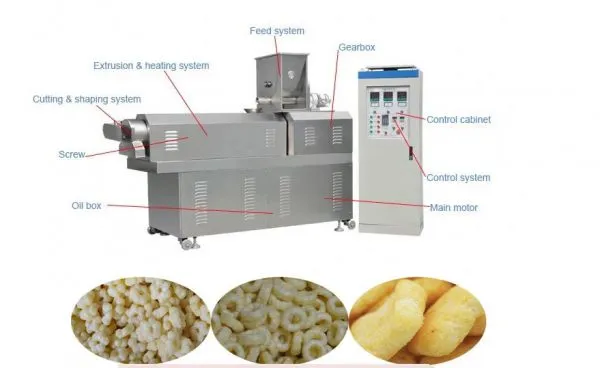

8- Detailed structure of twin-screw extruder:
The Twin-screw extruder is made up of the feeding system ,extruding system,cutting system,heating system,transmission system and controlling system.We will feed the material from the feeding machine and get the tissue state by inflating the material and the machine barrel must be high temperature,high pressure and high cutting.The material can be sterilized by the high temperature and high pressure.
