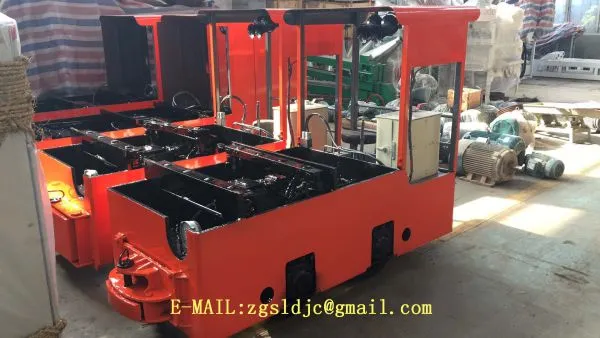

Help CenterUnderground Mine Mini Electric Locomotive Four Wheels Railway Vehicle
Related Products
-
For Coal Mine New Condition Rail Equipment Mining Electric LocomotiveUS$ 1 - 1MOQ: 1 Set -
Explosion-proof Underground Electric Locomotive 7t Well EquippedUS$ 1 - 1MOQ: 1 Set
-
For Subway Tunneling Four Wheels Rail Equipment Mining Electric LocomotiveUS$ 1 - 1MOQ: 1 Set
-
For Coal Mine Underground Coal Mining Equipment CustomizableUS$ 1 - 1MOQ: 1 Set
-
Cay12 Subway Tunneling Mining Battery Locomotive Battery PoweredUS$ 1 - 1MOQ: 1 Set
Description:

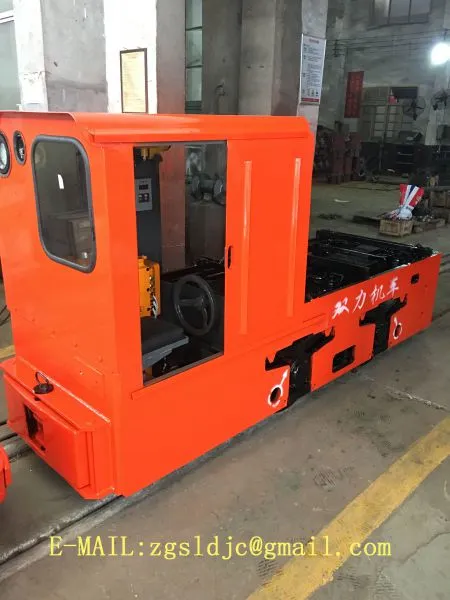

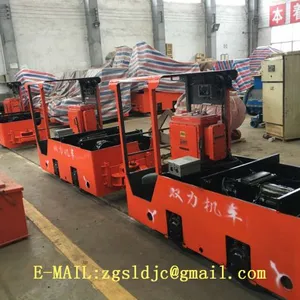

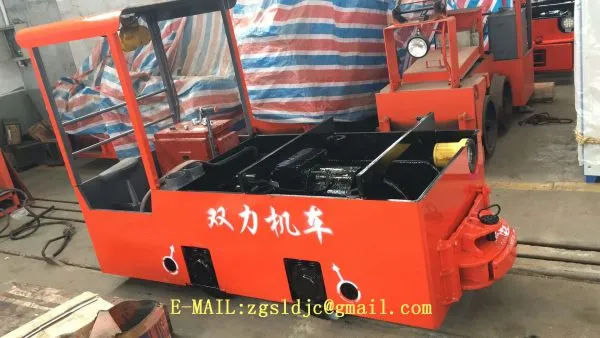

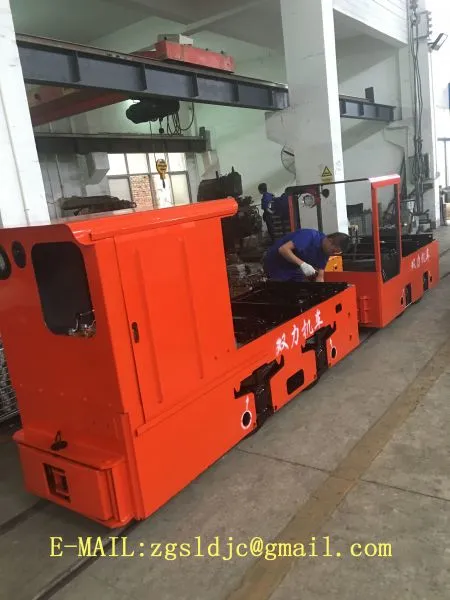

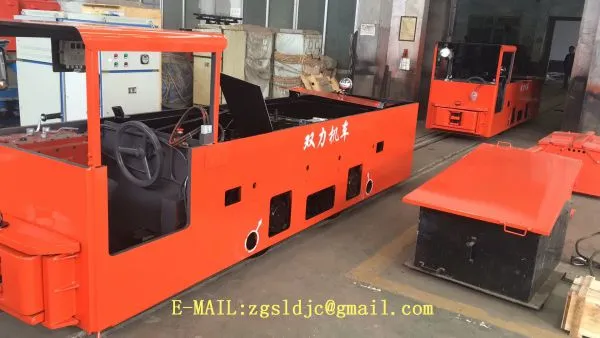

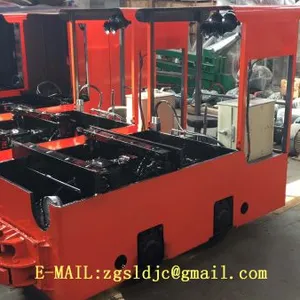

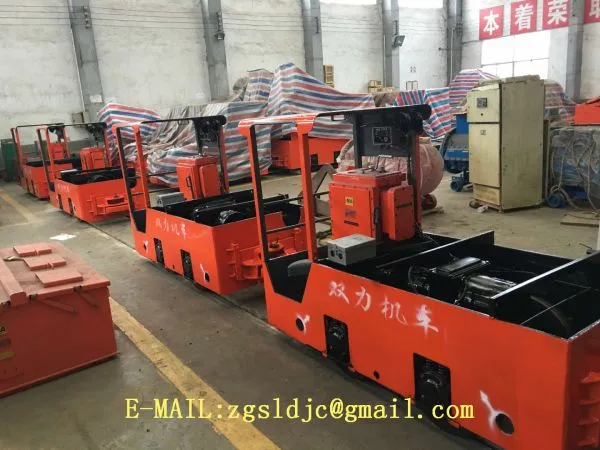

The 8 ton battery electric locomotive has a variety of models and voltage classes, and there are safety type and explosion-proof special type.It has the characteristics of large battery capacity and low locomotive center of gravity.
It has reasonable structure, high reliability and reliable operation.8T 140V electric locomotive is a new generation energy saving product.
It USES modern chopper technology and two-stage transmission and rubber shock absorber.
It has the characteristics of energy saving and reliable operation.
The above 8T locomotives can be derived from the user requirements of the dual-head driver room, using chopper speed control system, speed odometer installation.
Advantages
1. Long life .
2. The battery life is greatly extended by adopting the tubular positive plate produced by the die casting machine with the world's advanced level.
3. The battery shell has high strength and is not easy to break.

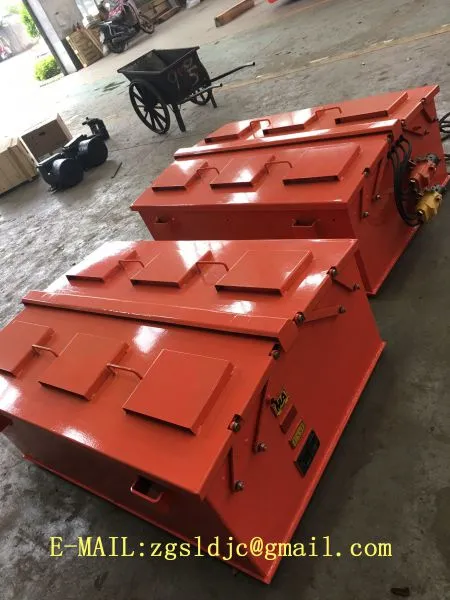

4. Unique breathable cover design can effectively prevent the electrolyte from spilling out of the battery.
5. Special device is installed in the battery cover part, hydrogen removal and exhaust plug, so as to ensure that the amount of hydrogen precipitation in the process of use meets the safety standard, no spark will be generated, and explosion will be avoided.
6. The non-leakage liquid adopts the heat sealing technology and the unique design of breathable cover, which can effectively prevent the leakage of electrolyte in the battery.
7. No waste gas emission in the process of pollution-free use to ensure a clean working environment.
Parameters:
|
locomotive Model No. specifications |
CAY8/6GP |
CAY8/7GP |
CAY8/9GP |
Adhesive / total weight (t) |
8 |
8 |
8 |
Track gauge (mm) |
600 |
762 |
900 |
Wheelbase (mm) |
1100 |
1100 |
1100 |
Wheel diameter over tread |
680 |
680 |
680 |
|
Coupler height over Steel rail (mm) |
320/430 |
320/430 |
320/430 |
Min Curve radius (m) |
7 |
7 |
7 |
Battery volt rating (V) |
132(440Ah) |
140(440Ah) |
192(440Ah) |
Braking method |
Mechanical and electrical |
Mechanical and electrical |
Mechanical and electrical |
Max tractive effort (KN) |
22 |
22 |
22 |
Max speed (km/h) |
20 |
20 |
20 |
|
Rated speed per hour (km/h) |
10 |
10 |
10 |
Power of traction Motor (KW) |
2*22 |
2*22 |
2*22 |
Transmission |
Single level Spur gearing |
Single level Spur gearing |
Single level Spur gearing |
Controller |
AC frequency conversion |
AC frequency conversion |
AC frequency conversion |
Over all dimensions (mm) |
4460*1060*1590 |
4400*1340*1590 |
4460*1340*1590 |
Service & Application |
Mucking in mining & tunneling |
Mucking in mining & tunneling |
Mucking in mining & tunneling |
