Home > Products > Marine mooring and deck equipment > CCS Approved Marine Black Paint Anchor

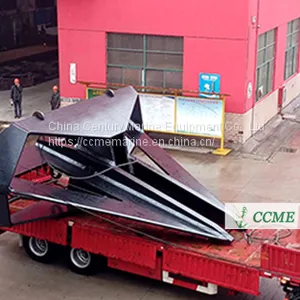

CCS Approved Marine Black Paint Anchor
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C Credit Card PayPal Other
- Floating box floating pontoon floating drums floater pontoon floater
- Marine Rectangular Aluminium Window
- Marine Porthole Window Side Scuttle with Deadlight
- Marine A60 Class Fire Protection Side Scuttle
- Marine Watertight fire proof Hatch Cover
- Marine search light marine lighting equipment Marine navigation and spot light
Product Details
Brand Name: | CCME | Place of Origin: | China | Model Number: | CM-24 |
Part: | Other, marine |
Product Description
1. Reliable quality
2. Weight: 100kg-15000kg
3. Good service and favorable price
4. Cert.: ABS, CCS, GL, LR, BV and DNV
We supply all marine anchors, including stock anchor, stockless anchor, offersore anchor, high holding power anchor with ABS, LR, DNV, GL, KR, IRS, CCS Certificate, with the advantage of widely source, good quality and after service. Welcome to contact us for quotation.
Anchor technical data sheet :
NOMINAL WEIGHT(KG) | A | B | C | D | E | F | G | J |
75 | 550 | 326 | 350 | 606 | 188 | 185 | 115 | 24 |
100 | 607 | 380 | 385 | 704 | 207 | 200 | 130 | 28 |
120 | 635 | 380 | 402 | 704 | 217 | 215 | 145 | 32 |
180 | 742 | 442 | 470 | 822 | 254 | 252 | 160 | 36 |
225 | 828 | 495 | 525 | 915 | 283 | 277 | 175 | 40 |
250 | 828 | 495 | 525 | 915 | 283 | 280 | 175 | 40 |
300 | 882 | 525 | 559 | 975 | 301 | 298 | 192 | 45 |
340 | 918 | 548 | 582 | 1015 | 313 | 310 | 215 | 48 |
360 | 918 | 548 | 582 | 1015 | 313 | 313 | 215 | 48 |
430 | 990 | 590 | 628 | 1098 | 339 | 336 | 215 | 48 |
495 | 1025 | 610 | 650 | 1135 | 350 | 348 | 235 | 50 |
585 | 1102 | 658 | 699 | 1220 | 376 | 375 | 235 | 50 |
675 | 1152 | 690 | 731 | 1278 | 394 | 390 | 255 | 60 |
765 | 1205 | 718 | 764 | 1335 | 411 | 408 | 255 | 60 |
855 | 1250 | 745 | 793 | 1385 | 427 | 420 | 280 | 62 |
970 | 1300 | 775 | 826 | 1445 | 444 | 440 | 280 | 62 |
1080 | 1350 | 805 | 855 | 1495 | 461 | 455 | 280 | 62 |
1200 | 1400 | 835 | 887 | 1545 | 478 | 470 | 310 | 68 |
1305 | 1440 | 858 | 913 | 1595 | 492 | 485 | 310 | 68 |
1440 | 1486 | 885 | 943 | 1645 | 507 | 505 | 310 | 68 |
1575 | 1534 | 915 | 972 | 1695 | 523 | 518 | 340 | 74 |
1710 | 1575 | 940 | 998 | 1745 | 538 | 532 | 340 | 74 |
1845 | 1616 | 965 | 1025 | 1785 | 552 | 546 | 340 | 74 |
1980 | 1650 | 985 | 1048 | 1830 | 564 | 560 | 380 | 82 |
2100 | 1686 | 1005 | 1070 | 1865 | 575 | 570 | 380 | 82 |
2295 | 1738 | 1035 | 1102 | 1920 | 593 | 588 | 380 | 82 |
2475 | 1780 | 1062 | 1128 | 1970 | 607 | 602 | 385 | 82 |
2655 | 1820 | 1085 | 1155 | 2018 | 621 | 615 | 385 | 82 |
2835 | 1862 | 1109 | 1180 | 2057 | 635 | 625 | 410 | 90 |
3040 | 1896 | 1130 | 1204 | 2100 | 646 | 640 | 410 | 90 |
3550 | 2030 | 1198 | 1287 | 2225 | 693 | 680 | 415 | 100 |
3940 | 2080 | 1240 | 1318 | 2300 | 709 | 705 | 450 | 100 |
4500 | 2170 | 1295 | 1376 | 2405 | 741 | 735 | 450 | 100 |
4840 | 2225 | 1330 | 1410 | 2465 | 760 | 755 | 480 | 110 |
5175 | 2275 | 1358 | 1443 | 2520 | 777 | 770 | 480 | 110 |
5610 | 2339 | 1396 | 1483 | 2590 | 798 | 790 | 500 | 110 |
We also have many other weight anchors ,if you need ,contact us dirctly . |
