Help Center3 INCH CSA B70 CAST IRON MJ PIPE
Related Products
-
4 Inch No-Hub CSA B70 Cast Iron MJ PipeUS$ 1200 - 1500MOQ: 1 Metric Ton -
5 Inch No-Hub CSA B70 Cast Iron MJ PipeUS$ 1200 - 1500MOQ: 1 Metric Ton
-
6 Inch No-Hub CSA B70 Cast Iron MJ PipeUS$ 1200 - 1500MOQ: 1 Metric Ton
-
8 Inch No-Hub CSA B70 Cast Iron MJ PipeUS$ 1200 - 1500MOQ: 1 Metric Ton
-
10 Inch No-Hub CSA B70 Cast Iron MJ PipeUS$ 1200 - 1500MOQ: 1 Metric Ton
No-Hub CSA B70 Cast Iron MJ Pipe

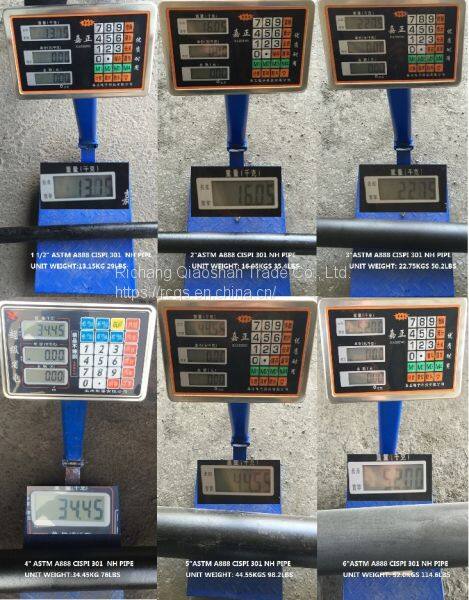

| NO HUB PIPE. 10' LAYING LENGTH | |||||
| Size | Wt/Piece(Kgs) | Wt/Piece(Lbs) | Pieces/Bundle | Kgs/Bundle | Lbs/Bundle |
| 1 1/2" | 13.0 | 29 | 84 | 1092 | 2407 |
| 2" | 16.0 | 35 | 68 | 1088 | 2399 |
| 3" | 23.0 | 51 | 44 | 1012 | 2231 |
| 4" | 34.4 | 76 | 30 | 1032 | 2275 |
| 5" | 51.0 | 112 | 21 | 1071 | 2361 |
| 6" | 82.2 | 181 | 18 | 1480 | 3262 |
| 8" | 130.0 | 287 | 10 | 1300 | 2866 |
| 10" | 148.0 | 326 | 8 | 1184 | 2610 |
| 12" | 225.0 | 496 | 6 | 1350 | 2976 |
| 15" | 260.0 | 573 | 3 | 780 | 1720 |
| DIMENSIONS AND TOLERANCES | |||||
| Size | Min ID (in) | Min OD (in) | Max OD (in) | Min Thickness | |
| 1 1/2" | 1.42 | 1.84 | 2.00 | 0.12 | |
| 2" | 1.91 | 2.28 | 2.48 | 0.12 | |
| 3" | 2.92 | 3.32 | 3.50 | 0.13 | |
| 4" | 3.94 | 4.36 | 4.56 | 0.15 | |
| 5" | 4.98 | 5.40 | 5.56 | 0.15 | |
| 6" | 5.92 | 6.40 | 6.64 | 0.15 | |
| 8" | 7.88 | 8.52 | 8.76 | 0.17 | |
| 10" | 9.84 | 10.68 | 10.64 | 0.22 | |
| 12" | 11.88 | 12.72 | 12.88 | 0.22 | |
| 15" | 14.80 | 15.88 | 16.08 | 0.30 | |
We Are Recognized As A Leader In The Conception, Design, Manufacturing, And Marketing Of Gravity Casting, Centrifugal Casting, Die-Casting, Stamping, CNC Spinning, Injection Molding, Laser Cutting, And CNC Bending In The Drain, Waste, And Vent Products For Commercial And Residential Buildings, Waterworks, And Municipal Areas, Plus All Types Of OEM And ODM Production.
Our Advantage:
Supply Full Set Roof Drainage And Floor Drainage Products In 1 Stop. Include Cast Iron Soil Pipe And Fittings, Flexible Coupling, Heavy-Duty Coupling, Roof Drain, Roof Outlet, Retrofit Roof Drain, Floor Drain, Area Drain, Floor Sink, Downspout Boots, Downspout Nozzle And Flange, Fasteners, Plumbing Hangers, Riser Clamps, Deck Screws, Stress Plates And Reciprocating Saw Blades.
Strong Product Development Ability. We Can OEM And ODM For Customers. We Can Help Customers Develop Products Even If Customers Just Have A Train Of Thought.
26+ Years' (Since 1996) Experience In Production. Supply High-Quality Products Are Our Sole Principle.
Please Feel Free To Contact Richang Qiaoshan Trade Co., Ltd. With Your Inquiries.
