Home > Products > Epson printhead > Epson 4880 Printhead 2nd Locked Head F186000430

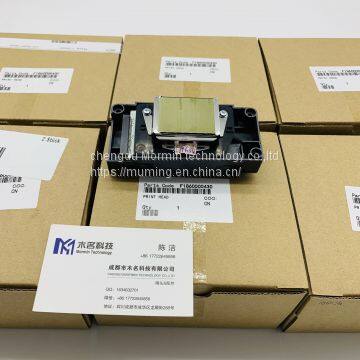

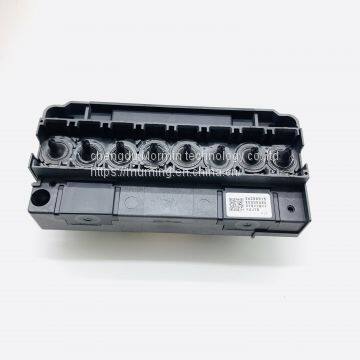

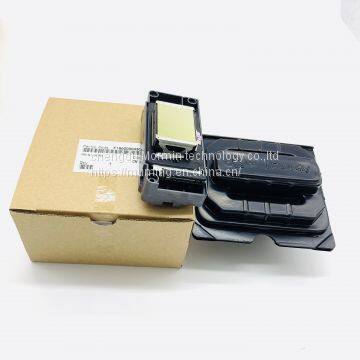

Epson 4880 Printhead 2nd Locked Head F186000430
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
You May Like
-
Mimaki JV3 Eco Solvent Printhead (DX4)-M004372
-
FA09050 Epson XP600 XP601 XP610 XP700 XP701 XP800 XP801 XP820 XP850 XP721 XP821 XP950 XP600 PRINTHEAD
-
Original Seiko SPT-1020/12PL Printhead
-
WF5113 Locked Prinhtead for Xuli Polar Human Allwin Titanjet Locor Printer F16021
-
Japan Original Ricoh GH2220 Printhead for Uv/sublimation Printer
-
Ricoh G5 MH54series for UV Inks Water Based Flatebed Printer
Product Details
| Brand Name | EPSON | Place of Origin | Japan | |
| Model Number | F186000430 | Compatible Brand | Epson | |
| Compatible Printer Type | Inkjet Printer |
Product Description
Various Chinese solvent printers use the Epson DX5 solvent printhead. This DX5 printhead allows fast speed, high-resolution printing with eco-solvent or mild solvent inks. The Epson DX5 original printhead is delivered in a sealed Epson package.
This DX5 printhead model is compatible with all DX5 based Chinese printers and doesn't require any decoder. This is the original Epson DX5 printhead; it is not modified nor coded.
This printhead should not be used on Mutoh Valuejet or Mimaki JV33 / JV5 printers as it has different voltages and therefore offers a different image quality. PPHMUVJ1204 and PPHMIJV5006 should be used on Mutoh and Mimaki printers.
Product Specifications
Technology: Micro-Piezo
Native resolution: 1440 dpi
Min. droplet size: 1.5 picolitre
Max. droplet size: 21 picolitre
Tot. amount of nozzles: 1440 (8 lines x 180 nozzles)
Firing frequency: 8 kHz
Ink compatibility: solvent and Eco-solvent based
It is highly recommended to replace the head cables together with a new printhead.
AS1802S
AS3202S
E6184
A1801S
A1802S
BY-1801B
UD-1612LC
UD-1612W
UD-161LC
UD-161W
UD-1812LC
UD-181LA
UD-181LB
UD-181LC
UD-2112LA
UD-2112LC
UD-211LA
UD-211LC
UD-2512LA
UD-2512LC
UD-251LA
UD-251LC
MT-E1802S
MT-Starjet 5.0
GE 1802 DS
GE 1802 DSII
GE 1802 S
GE 1802 SII
1804
FT1800
X4740ASE
X2A-7405SE
ES160
ES1802
ES2502
ES3202
ES3202I
Ultra 9000
Ultra 9100
ME1300
ME1600
ME900
VE1800
VE2600
DTG
