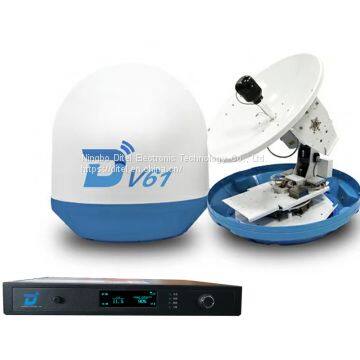

Ditel V61H 63cm ku-band marine satellite antenna with integrated with High-performance Modem
Ditel V61
Featuring a compact size and lightweight design, the Ditel V61 is a 60cm Ku-band maritime VSAT antenna system ideal for smaller vessels with space constraints. With its 3-axis stabilized platform and 5 patent technology, the V61 offers superior tracking performance to users.The 5 patents make the ditel V61 performs super high tracking effiency with 60cm dish while other antennas need 90cm dish at least. 3-axis is preferred in the vicinity of the equator.
Features
| 1. SkyFocusTM super high gain antenna Ring focus antenna providing extra high communication performance. |
|
2. WatchmanTM double inertial guidance project patent |
| 3. Tri-DoorTM smart failure testing Checking peripheral equipment automatically,preventing system malfunction |
| 4. SingfingerTM one-key operation system Interactive action of state control and parameter input with single button |
| 5. LightenLifeTM Built-in WIFI interface,remote processing system on mobile terminal is available |
| 6. 3-axis stabilized , 4-axis tracking |
Parameters
| Physical parameter | Communication parameter | ||
| Radome Dimension(WxH) |
75*83.8cm (29.78*33 inch) |
TX Frequency | 13.75~14.75GHz |
| Weight | 45 kg(99.10 lbs) | TX Gain | 37.6dBi (14.25Ghz) |
| Reflector Diameter | 63 cm (24.8 inch ) | RX Frequency | 10.75~12.75GHz Ku-band |
| Radom Material/Color | ASA / White | RX Gain | 36.4dBi (12.5Ghz) |
| Waterproof level | IP56 | G/T | 14.2dB/K(clear sky,30° Elevation ) |
| Environmental humidity | 0~95% | Power input | AC 100V~240V /DC 24V |
| Operating Temp. Range | -20~70℃ | Power output | DC 24V |
| Tracking paramenter | Statick Power | 60 W W/O BUC | |
| Platform | 3-axis stabilized , 4-axis tracking | Dynamic Pwer | 65 W W/O BUC |
| Tracking mode | bulit-in inertial guidance | BUC Power | 4W / 6W / 8W / 16W(optional) |
| Location mode | BD/GPS location system | Min.EIRP | 46dBW |
| Motor Brake System | Azimuth, cross level,elevation and skew | Polarization | linear polarization |
| AZ Range / Tracking rate | Unlimited/ ±20°@5S | side lobe envelope | ITU-RS.465-6 standard |
| EL Range/Tracking rate | -10° ~ 110°/ ±20°@5S | cross polarization isolation | >33DB |
| Roll Range/ Tracking rate | ±35° / ±20°@5S | Antenna type | Ring focus |
| LNB skew Range/ Tracking rate | ±167.5° / ±20°@5S | LNB | KU band L.O.(9.75/10.6/11.3 GHz customizable) |
| Initial lock | ≤60S | ||
| Re-lock after break lock | break lock ≤ 2Min: |
||
Highlight of Modem
1. High-performance TDM/TDMA Satellite Router with aggregate throughput up to 200 Mbps
2. Two independent DVB demodulators with separate IF inputs and rate up to 65 Msps
3. Enhanced DVB-S2 QPSK, 8PSK, 16APSK and 32APSK modulations with 5% or 20% roll-off
4. MF-TDMA modulator with innovative protocol and proven efficiency of 96% compared to SCPC
5. Adaptive coding and modulation and transmission power control in forward and return channels
6. Dual satellite or dual band operations with dynamic traffic balancing and automatic beam switching
7. Superior IP router productivity up to 150 000 PPS, rich set of supported protocols
8. Layer 3 routing architecture and Layer 2 bridging mode with IPv6 transport
9. Support of VLAN, multilevel QoS, RT traffic, TCP acceleration, AES encryption
10. Built-in adaptive hierarchic traffic shaper specially designed for VSAT applications
11. Two Ethernet user ports with built-in switch simplifies connection of CPE and maintenance
12. Ultra-low latency VSAT system with round-trip delay about 570 ms for TDMA mode of operations
13. Low power consumption – less than 10 Watt (without RF ODU)
Connection
Application
