【Aluminum shell resistance] basic description

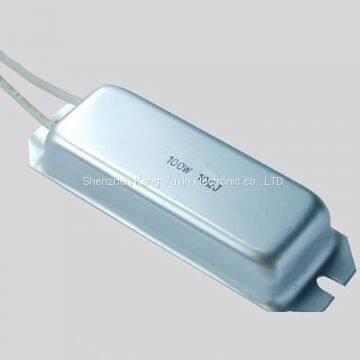

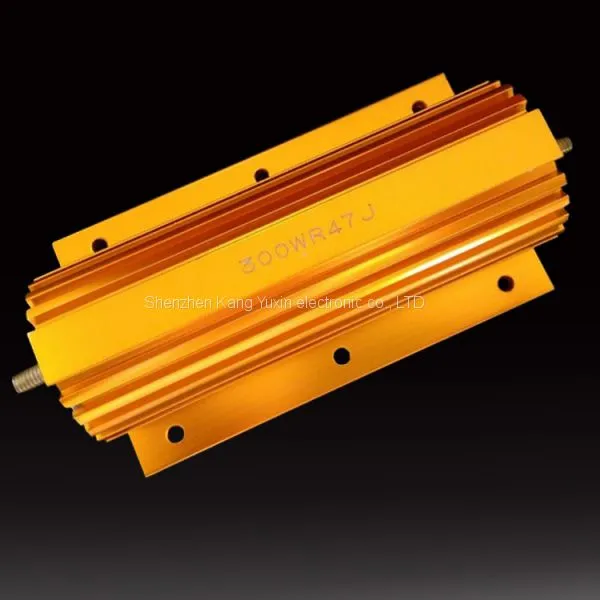

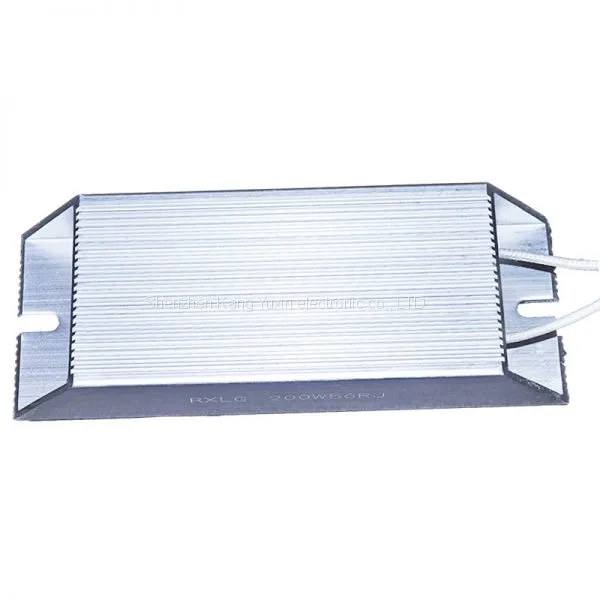

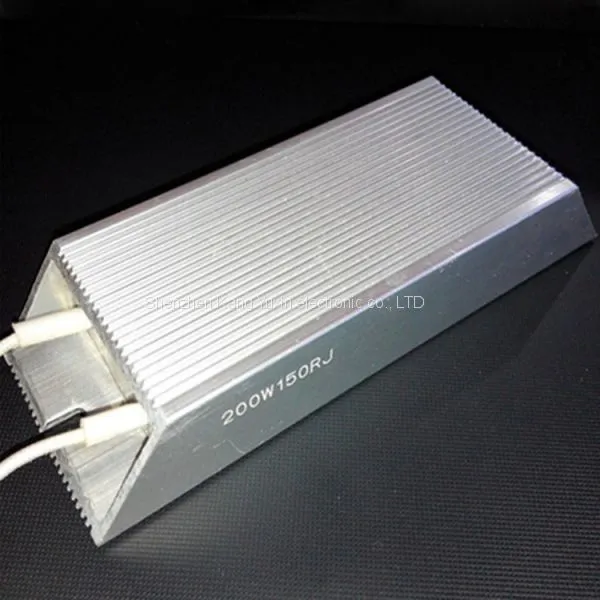

Product Title: Trapezoidal Aluminum Shell Resistors
Product alias: load resistance, braking resistor, starting resistor, braking resistor
Product model: RXLG
Rated power 40W~3000W
Resistance range 0.01Ω~100kΩ
Resistance tolerance ±0.1% ±0.5% ±1% ±10%
Temperature coefficient：300ppm/℃
Short-time load ：ΔR≤1%
Insulation resistance：1000MΩ，min
Dielectric withstanding voltage：
no evidence of mechanical damage or insulation breakdown
ΔR≤0.2%
[Aluminum shell resistance] Scope of application：
power, elevator, transducer, automobile, generators, ship etc
Features ：
1.High power
2.Chassis installation type
3.RoHS Complied
4.Protection grade IP67
[Aluminum shell resistance]
Thank you for purchasing our company's resistance products. This product is strictly in accordance with ISO9001 national quality system standards for quality control. The resistance is guaranteed for one year, and the company is responsible for the free replacement of the product due to non-human damage within one year from the date of purchase.
[aluminum shell resistance] parameter description
Appearance color: silver white
[Resistance] Detailed introduction
The company's main business covers: high-power porcelain tube resistors, aluminum shell resistors, high-voltage resistors, milliohm resistors, shunt resistors, thick film resistors, plug-in resistors, wirewound resistors, cement resistors, organic solid resistors, damping resistors, high precision Resistance, non-inductive resistance, etc. The company takes resistance products as its core technology, and its products are widely used in home appliances, lighting, industrial control, industrial and other fields. After years of innovation, exploration and development, it has become a leader in the resistance industry.
