Wire Straighteners Wire Straightening Rollers Wire Straightener Rollers
US$ 360 - 380
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
QIPANG
Place of Origin:
China
Model Number:
JZQ18/30AV
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
7 days
Related Products
-
Rolling Ring Linear Drives for Cable and Wire GP20US$ 90 - 95MOQ: 1 Piece -
Qipang Polished Shaft Rolling Ring Drive GP20CUS$ 103 - 105MOQ: 1 Piece
-
Linear Traverse Drives Roll Ring Traverse Drive GP30US$ 103 - 105MOQ: 1 Piece
-
XINDIAN Rolling Ring Drive Assembly GP40 for Iron MaterialUS$ 165 - 170MOQ: 1 Piece
-
Traverse Head Rolling Ring Traverse Drive Box for XINDIAN Brand GP50CUS$ 165 - 170MOQ: 1 Piece
Brand Name
QIPANG
Place of Origin
China
Model Number
JZQ18/30AV
Type
Straightener & Cutter
Use
Wire
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1year
Weight
12kg
Dimension(L*W*H)
380*150*150mm
Condition
New
Wire straighteners wire straightening rollers wire straightener rollers

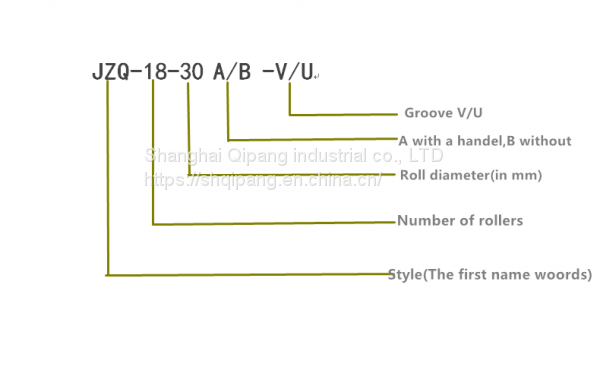

JZQ--- wire straightener
Straightening wire specification：Φ0.8mm----Φ2.0mm
18----- The number of straightening rollers
23------ The diameter of the straightening roller
V------- The groove type of straightening roller; V,R,U,and customization
A------- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
Straightener size：length 290mm×width 135mm×height 135mm
Total weight of straightener：The machine is 7 kg, including package about 8 kg
Wire straighteners wire straightening rollers wire straightener rollers
