Help CenterD Series Pneumatic Tamping Machine Plug Ramming Machine
Related Products
-
D6 China Manufacturer High Quality Pneumatic Tamping Machine On SaleNegotiableMOQ: 1 Piece -
Hand Held Pneumatic D9 D6 D3 D4 Tamping Machine Hot SaleNegotiableMOQ: 1 Piece
-
Pneumatic Tamping Machine/ Air Tamper / Plug Ramming Machine Sale D3/4/6/9NegotiableMOQ: 1 Piece
-
High Quality D3/D4/D6/D9 Pneumatic Hand Tamper, Pneumatic Tamping MachineNegotiableMOQ: 1 Piece
-
Pneumatic Tamping Machine Factory Sale High Quality D3 D4 D6 D9 D10 Air Sand RammerNegotiableMOQ: 1 Piece

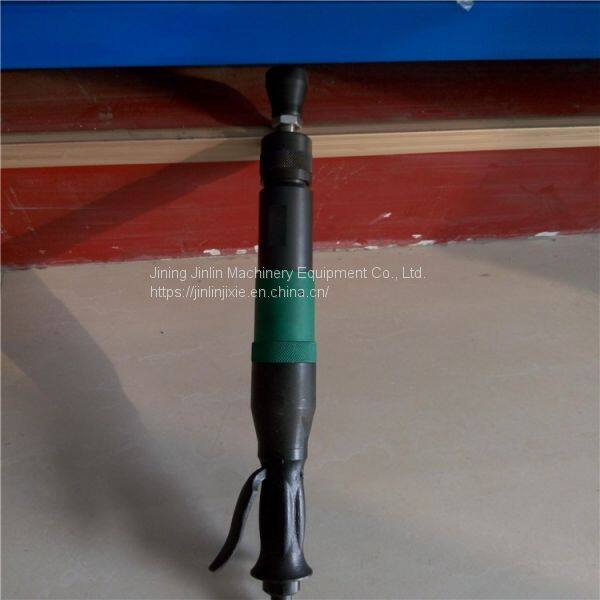

Pneumatic tamping machine is powered by compressed air. It is suitable for the tamping of sand moulds of medium-sized castings, concrete and brick billets.
Application Scope
Model D3 is very small and can be used in narrow working space.
Model D4 is light and suitable for tamping sand core or small sand mould.
Model D6 is suitable for modelling of medium-sized castings.
Model D9, with large working capacity, is suitable for tamping large sand castings.
Model D10, with super working ability, is suitable for tamping of sand mould of super large castings.
Pneumatic Tamping Machine Parameters Details:
Model |
D3 |
D4 |
D6 |
D9 |
Machine weight |
2.5kg |
3.6kg |
6kg |
9kg |
Use of air pressure |
0.63 mpa |
0.63mpa |
0.63mpa |
0.63mpa |
Gas consumption |
0.25 l/s |
0.35l/s |
0.45l/s |
0.65l/s |
Number of shocks |
900hz |
800hz |
700hz |
600hz |
Piston diameter |
17mm |
20mm |
25mm |
32mm |
Structural of travel |
92mm |
128mm |
155mm |
207mm |
Hammer head diameter |
32mm |
36mm |
42mm |
54mm |
Endotracheal diameter |
13mm |
13mm |
13mm |
13mm |
Overall Length |
410mm |
480mm |
975mm |
1180mm |
