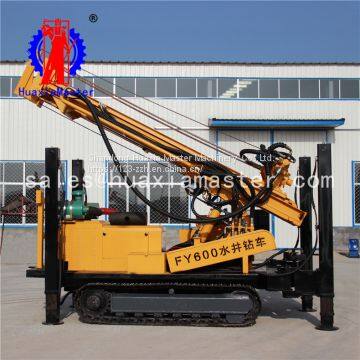

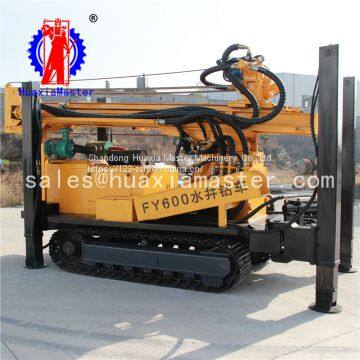

FY600 Crawler Pneumatic Water Well Drilling Machine Drilling Equipment High Efficiency and Fast Speed
US$ 4480 - 4900
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxia master
Place of Origin:
China
Model Number:
FY600
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
7 days
Related Products
-
Manufacturers Direct Selling 6-meter Tower High-leg Drilling Machine 600-meter Depth Drilling Machine Crawler Well Drill TruckUS$ 4880 - 4900MOQ: 1 Set -
The Maximum Hole Diameter of Xy-100 Full Hydraulic Core Sampling Equipment is 219mm Small 100-meter Well Drilling RigUS$ 4890 - 4900MOQ: 1 Set
-
Hydraulic Truck Type Water Well Drilling Rig Large Water Well Drilling Rig Automatic Lifting Drill Tower is Safe and ConvenientUS$ 13500 - 13550MOQ: 1 Set
-
Truck Type Hydraulic Core Drill Rig Vertical Shaft Rotary Drill Rig With Hydraulic Take-off and Landing Type Folding Drill TowerUS$ 32900 - 33000MOQ: 1 Set
-
Multi-function Drilling Machine Xyd-200 Crawler Type Well Rock Drilling Rig Hydraulic High Leg Drill Tower More StableUS$ 14350 - 14500MOQ: 1 Set
Brand Name
Huaxia master
Place of Origin
China
Model Number
FY600
Type
Core Drilling Rig
Certification
ISO9001
After-sales Service Provided
Overseas service center available
Warranty
6 months
Weight
12t
Dimension(L*W*H)
5400mm*2100mm*2850mm
Power Type
Electric
Usage
Coal
Condition
New
Power(W)
115kw
FY600 crawler pneumatic water well drilling rig
1.The applications of FY600 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling
· drilling with large diameter and deep drilling footage
· fast, flexible and efficient
2.The specifications of FY600 crawler pneumatic water well drilling rig
Model |
FY600 |
|
Gross weight |
T |
12 |
Dimension |
mm |
5400*2100*2850 |
Aperture |
mm |
140-350 |
Drilling depth |
m |
600 |
Feed stroke |
mm |
6600 |
Travel speed |
km/h |
2.5 |
Grade ability |
max. |
30° |
Rising height from ground |
mm |
250 |
Wind pressure |
mpa |
1.7-3.5 |
Air consumption |
m³/min |
17-35 |
Engine power |
kw |
115 |
Rotation speed |
rpm |
45-110 |
Rotation torque |
n.m |
8500-10050 |
