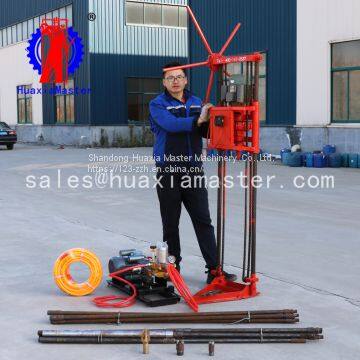

The motor power sampling rig is a good assistant for geological exploration it weighs 90kg and can be disassembled
- 1200 Set / Sets per Month
- QINGDAO
- T/T L/C
- 7 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | Huaxia master | Place of Origin: | China | Model Number: | QZ-1A |
| Type: | Rotary Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Overseas service center available |
| Warranty: | 6 months | Weight: | 90kg | Dimension(L*W*H): | 600*450*1900mm |
| Power Type: | Electric | Usage: | Coal | Condition: | New |
| Power(W): | 2.2KW |
Product Description
QZ-1A two phase electric sampling drilling rig
1.Brief introductions of QZ-1A two phase electric sampling drilling rig
QZ-1A is a two phase electric sampling drilling rig produced by Shandong Master Machinery Group Co.,Ltd. It is suitable for all kinds of geological exploration, like industrial and civil buildings, bridges, railways, roads and so on. QZ-1A two phase electric sampling drilling rig is only 80kg; height is less than 2 meters, and the drilling rig can been break down structure. Hence it is easy to move and operated.
2.Technical parameter s of QZ-1A two phase electric sampling drilling rig
QZ-1A two phase electric sampling drilling rig | |
Borehole diameter (mm) | 32-46 |
Drilling depth (m) | Soil layer: 20-25 Lithosphere: 15-20 |
Drilling pipe diameter (mm) | 25 |
Rotate speed（r/min） | 175 |
Torque (n.m) | 80 |
Power (kw) | 3 |
Dimensions (l*w*h) | 600mm*450mm*1900mm |
Weight (kg) | 80 |
3.Configuration list of QZ-1A two phase electric sampling drilling rig
Item | Parameters | Unit | Quantity |
Two phase electric sampling drilling rig | QZ-1A | set | 1 |
Drill pipe(mm) | 25*1500 | pc | 6 |
Drill pipe(mm) | 25*800 | pc | 8 |
Joint(mm) | 32 | pc | 14 |
Core barrel(mm) | 32*800 | pc | 1 |
Alloy bit(mm) | 32 | pc | 1 |
Reducing nipple(mm) | 45/32 | pc | 1 |
Core barrel(mm) | 45*800 | pc | 1 |
Alloy bit(mm) | 46 | pc | 1 |
Three-wing bit(mm) | 60 | pc | 1 |
Safety clamp | pc | 1 | |
Water seal | Y Type 30*45*8 | pc | 4 |
Control wheel | set | 1 |
