CNC Knife Corrugated Packaging Cutting Machine
- 200 Set / Sets per Month
- qingdao,shandong
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
Product Details
| Brand Name | 1240.0 kg | Place of Origin | China | |
| Model Number | AOYOO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
1. Features of CNC knife corrugated packaging cutting machine:
1). Flat work surface
The working surface is made of aluminum. After several times of grinding, the precision is determined to make the table surface smoother and firmer.
2).aoyoo modular customization solution
Various sizes of cutting machine models can be customized according to different customer requirements.
3). Intelligent conveyor belt
Intelligent control of material transfer, cutting and receiving work, saving labor, improving overall efficiency and ensuring maximum output of cutting equipment

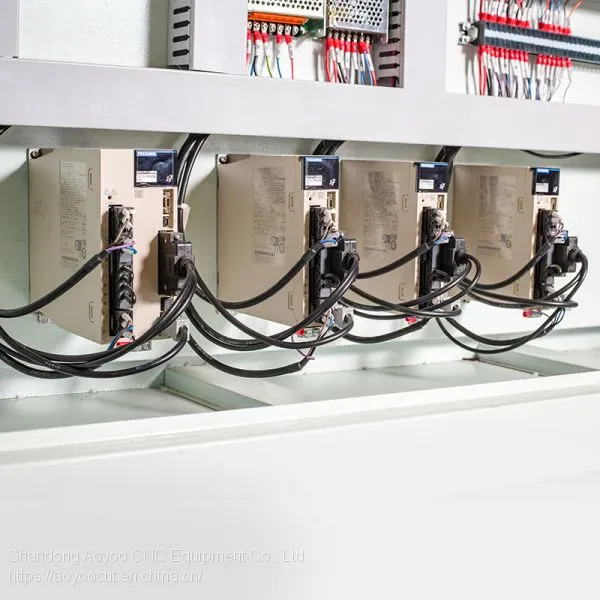

4). Scientific wiring system
The simple and scientific circuit system can effectively improve the stability of the circuit, ensure the upgrade of the later products more convenient, and also increase the expandability of the equipment.
10. Motion Control System
The unique cutting control center makes the cutting process more perfect and makes the arc more perfect.
5). Effective cooling system
The wing-shaped heat sink is added to the circuit board's outer casing, which can effectively accelerate the heat dissipation speed inside the motor box. Compared with the fan heat dissipation, it can effectively reduce the entry of 85%---90% dust.
Leather, cardboard, fiber glass, corrugated cardboard, honeycomb cardboard, sticker, film, foam board, acrylic board, rebound rubber, rubber cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites, etc.
Technical parameters / model | AOYOO-1625-ZS6 | AOYOO-1825-ZS8 | AOYOO-2125-ZS10 | Accept special model customization | ||
Effective working area | 1600x2500mm | 1800x2500mm | 2100X2500 | |||
Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||||
Multi-function tool | Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife | |||||
safety devices | Safety devices use infrared sensing, safe and reliable | |||||
Cutting speed | 200-2000mm/s | |||||
Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||||
Applicable materials | Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC, leather leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material | |||||
Material fixing method | Vacuum partition adsorption | |||||
Transmission port | Network port | |||||
Transmission system | Yaskawa servo motor, linear linear guide, timing belt, lead screw | |||||
rated power | 11kw | |||||
Rated voltage | 380V±10%/220V±10% Optional | |||||
Control System | Chinese and English LCD touch screen | |||||
Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH | |||||
Software | Automatic nesting software, template entry software(Optional) | |||||
Support file format | AI,PLT,DXF,CDRetc | |||||
Overall size | 3570x2290x1165mm | 3570x2500x1165mm | 3570x25800x1165mm | |||
4. Advantages of CNC knife corrugated packaging cutting machine:
1) AOYOO-cutter with High Downforce Creaser Corrugated and Foam
A large crease wheel combined with the new high frequency, reciprocating knife tool with its range of specialised high quality blades provides excellent sample quality and minimal overcut at high speed on corrugated and foams for protective transit packaging.
2) Heavy Duty
Designed specifically for heavy-duty, the new AOYOO-cutter features an even larger 150mm diameter Crease wheel. As a result of the large diameter and higher pressure it makes light work of the toughest grades of twin and triple wall. In addition to this the large circumference helps prevent liners cracking during creasing. A V-CUT tool is also available to cut out V notches hence easy folding of difficult materials is possible. You can process materials such as impregnated heavy duty corrugated, Kappa foam boards, and honeycomb structural boards using the V-cut tool.
AOYOO Packing Cutting Machine for Corrugated Cardboard Standard tool interchangeable modules are standard, which is extremely versatile and easy to change tools.
Cardboard----Color box packaging, paper bag, creative sample---- Drag tool, oscillating knife, creasing tool
Corrugated board----Color box packaging, carton, POP display stand---- Oscillating knife, creasing tool
Honeycomb board----Protective packaging, display stand, creative works---- Oscillating knife, V-cut tool
Grey board----Gift box, packaging, file storage box---- Oscillating knife, V-cut tool
ABS----Packaging, display stand POP billboard---- Drag tool, router
Foam material----Package lining, protective packaging, sandwich material---- Drag tool, router
Plastic board----Gift box, file, light box AD display---- Drag tool, oscillating knife
PP plastic hollow plate----Packing box, fender display stand---- Drag tool, oscillating knife
Kraft paper computer proofing machine----Packing box Packaging bag Business card Folder Label----Drag
Non-woven computer proofing machine----outer packaging cloth packaging cloth bag----round knife
Silicone paper computer proofing machine----food packaging barbecue packaging Hongpei packaging----round knife
Paper Computer Proofing Machine----Paper Bag Carton Paper Cup Envelope Paper Molding----Drag
EVA material computer proofing machine----packing box Inner packing----vibrating knife
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Question: What's the package?
Answer: Film packaging+wooden case. Fumigation-free plywood case is also available.
Question: How to operate this machine ?
Answer: We can provide operating video, user manual or telephone calls to help you. All these is written or speaking in English at present. On site service is also available.
There is no complicate operation nor special requirement for operator, operating is easy.
Question: What's the warranty policy?
Answer: Standard warranty is 12 month upon delivery.
Question: What is the shipping cost from China to my country?
Answer: It depends on the distance between you and the sea port. We offer door to door service as long as you pay the relevant cost. For the shipping cost you can ask for our advice or from the freight forwarder.
Question: How to judge if this cutting machine is suitable for me or not?
Answer: First, you should share something on the material (L*W*H,breathable or not) to be processed and other specific requirements, such as additional drawing function, punching holes function,etc. We will make first round judgement based on our experience. If necessary, we will make demo cutting for you, then we will share the video with you and discuss the possible solution.
Question: Where is your factory located? How can I get there?
Answer: Our factory is based in jinan, shandong province,China. You can fly to beijing, jinan or qingdao. We can pick you up at the air station or train station.
Question: Is there any after sales service?
Answer: We have integrated after sales service. Besides our own experienced engineers, we also offer local after sales service through the help of our agents. All this will make you convenient.
Our official website:
Please feel free to contact us, we will reply within 24h!
About AOYOO knife cutting machine we want to know:
1.What materials do you need to process?
2.The size and thickness of the material?
