String Wound Filter Condensate Polishing Filter Cartridge for Thermal Power Plant
General Description

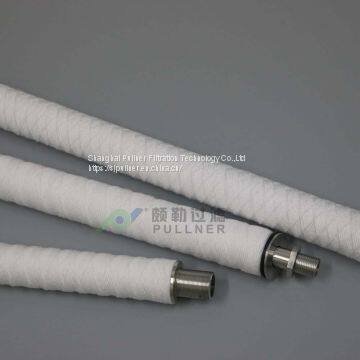

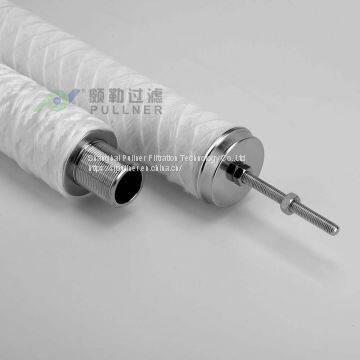

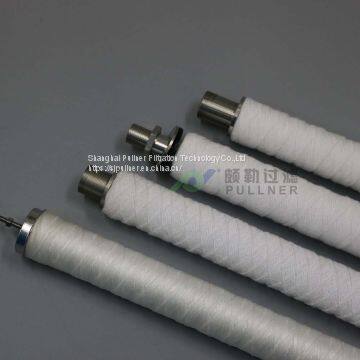

PHFX Series String Wound Filter Cartridge is depth filtration type, with different precision and end connections can meet different conditions. Effectively remove suspended solids in the fluid, particulates, rust and other debris, widely used for iron removal in condensate water treatment.
Features and Benefits:
Stainless steel core and end fittings;
High Surface area;
Up to 70” length, high filtration area, for high dirt holding capacity;
Designed for iron removal in condensate water;
Suitable for use with resins pre-coating techniques;
Applications:
* RO pre-filtration, desalination pretreatment;
* Power plant condensation water filtration;
* Paints, coatings, petrochemical, refining;
* Microelectronics, films, fibers, resins.
Performance Specifications
Dimensions(nominal):
OD |
50mm, 60mm |
ID |
25mm, 28mm |
Length |
70"(1778mm), 60" (1524mm) |
Parts Material
Filter Media |
Polypropylene, Cotton, Glass Fiber |
Support Core |
Stainless steel 304/316 |
Filter Performance
Micron |
1um, 5um(operating filter), 10um ( start-up filter) |
Max. Operating temperature |
85℃ |
Max. Operating differential pressure |
2.45Bar |
Design Flow Rate |
2.9m³/h-3.2m³/h |
Connection Type |
Thread |
Connection thread size |
M33×1.5, M33×2, G1", 1 3/16〃-24 BSW |
| Screw size | M6, M8, M10 |
