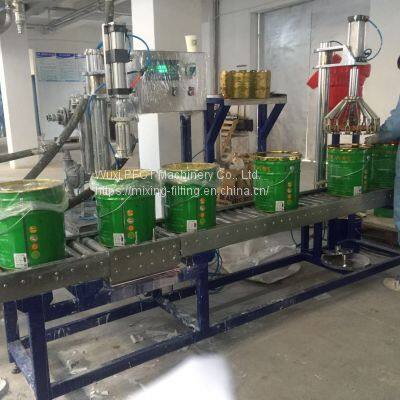

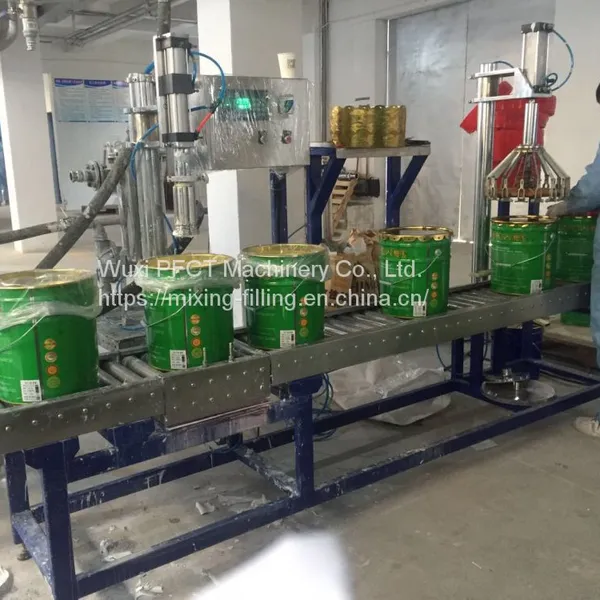

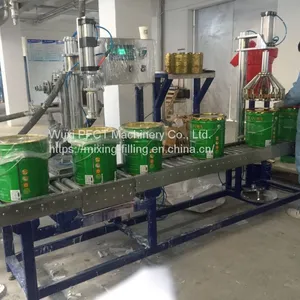

GS semi-automatic drum filling and capping machine
Suitable Area: semi automatic filling and capping machine is used to fill coating,ink,oil,paint,lubrication,and so on.
Main Functions:
Using weighing filling, high accuracy is not affected by the material. By the fast increase and slow feeding valves plus composition, both to improve filling speed but also improve filling accuracy, measurement error of less than 10 g / barrel. Filling head adopts anti-drip device, filling out materials without bubbles, good effect. Automatic control of material feed, equipped with pneumatic and pneumatic clamp lid capping device.
Type:
From the different ways of filling into submerged, splash style and hinder drawing three. From the nature of the filling material distinction explosion-proof type and general type two kinds.
The basic structure:

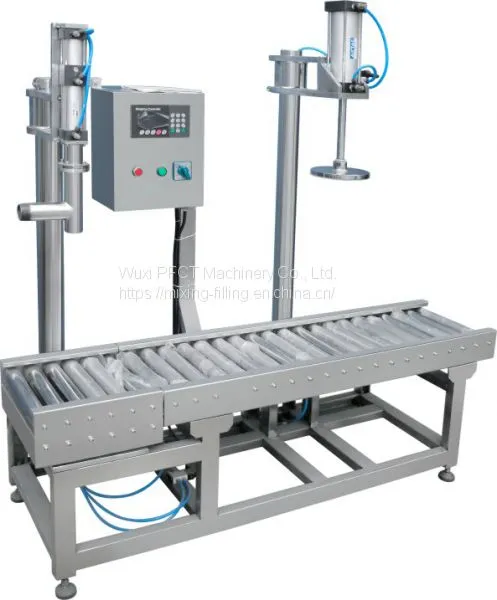

Semi-automatic filling machine by feeding system, weighing system, consisting of four parts closure system, rack, pneumatic control systems. Feeding system through the cylinder by a solenoid valve, respectively, to perform fast and slow feed. By the load weighing system bracket, the sensor and the weighing station components. Weighing station through the sensor directly to the rack link. Stand by capping capping system, capping the cylinder and clip gland plate cover or composition
Filling range: 0.5-5L, 2-10L, 5-30L, 10-50L
Filling speed: 160-300 barrels / hour
Filling error: ± 0.2%
Power: 220V, 50 / 60Hz (can be customized according to customer requirements)
Gas source: Flow 0.1m3 / min
Pressure 0.4 ~ 0.6MPa
Operating temperature: 0 ℃ ~ 40 ℃
Rail transport: no power track, length 1300mm
Note: When meet the high temperature, high pressure, flammable, explosive, corrosive and other conditions, must provide detailed data to be customized selection a
