safe lec conductor bar current collector with carbon brush for hoist

Name: safe lec conductor bar current collector with carbon brush for hoist
Brand: MARCH
Price: USD $16 - 25 / Piece

FOB Price

USD $16 - $25 / Piece

10 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Wuhan
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Other Cash
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

MARCH

Place of Origin:

China

Model Number:

MCCBII

Product Description

safe lec conductor bar current collector with carbon brush for hoist

Product Description

Item	Weight(KG)	Material	Part No.

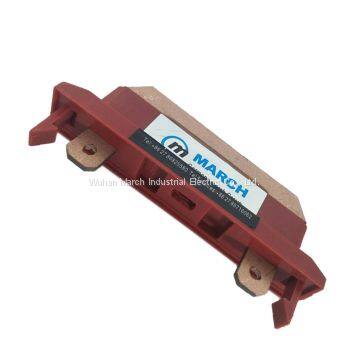

100A Contact Shoe and Holder	0.062	Copper/Graphite	21993
100A Contact Shoe and Holder	0.311	Copper/Graphite	45823

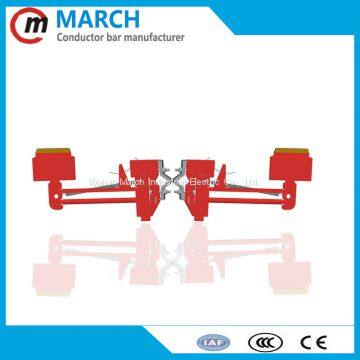

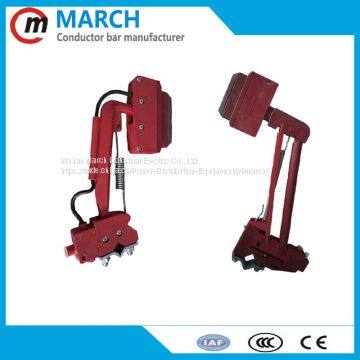

Current collector

100A carbon brush for crane current collector

Rated current (A)	Head	Vertical movement (mm)	Horizontal movement (mm)	Setting height (mm)	Weight (kg)	Shoe material
50	1	-	-	-	0.4	Copper/Graphite
100	1	+80/-20	-63/+63	102	0.8	Copper/Graphite
200	2	+80/-20	63/+63	102	1.6	Copper/Graphite
250	1	-50/+50	-50/+50	230	3.5	Copper /Graphite
500	2	-50/+50	-50/+50	230	7	Copper /Graphite

Contact area : 360mm2 &1088 mm2

Shoe Pressure :0.007 k/mm2

Allowed Wearing : 5mm & 8mm

Max Speed: 200 m/min

Spring Load Weight :2.5KG & 8KG

MCCBII Accessories

1. Expansion Sections

Rated Current (A)	Material	Weight(kg)	Standard Length
60A	Galvanized steel	3.22	4.5 M
100A		3.48
125A		4.37
160A	Aluminum &Stainless steel	3.19
200A		3.30
250A		3.49
315A		3.61
400A		3.69
500A		4.01
160A	Copper	3.39
250A		3.97
400A		4.9

Application Environment :

The expansion sections are required to compensate for therma expansion

MCCBII System can run for 150m without an expansion section

2.Power feed

Item	Weight	Parts No.
<100A End Power Feed	0.041	27105
<250A End power Feed	0.18	26105
>250A End power Feed	0.25	26106

3.Joints and Cover

Items	Material	Weight	Parts No
Joints	Galvanized steel	0.049	28111
	Copper	0.031	28112
	Aluminum	0.082	28113
Joint Covers	PVC	0.028	26104

4. Hanger Clamps

Item	Material	Largest Installation Distance	Weight (kg)	Parts NO.
Anchor Clamp	PVC	1.5 m	0.04	27104
1-Pole Hanger Clamp			0.03	28101
3-Pole Hanger Clamp			0.06	27103
4-Pole Hanger Clamp			0.07	27101
2-Bolt 4 pole Hanger			0.08	27102

5. End Caps

Material	Weight(kg)	Parts No.
Steel	0.042	28107
Copper	0.04	28106
Aluminum	0.22	28105
Transition Cover	0.11	28104
