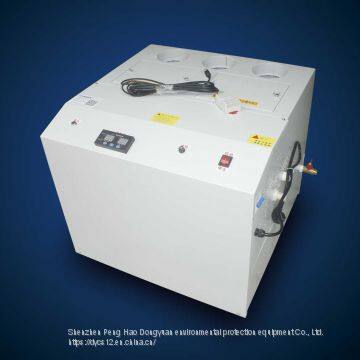

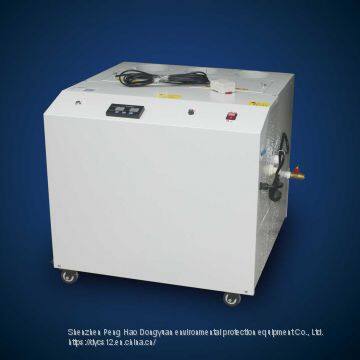

15KG Industrial Ultrasonic Humidifier for Greenhouse

15KG Industrial Ultrasonic humidifier for greenhouse

Model: DYJ-1015

Ultrasonic frequency:1.7MHz

Ultrasonic power:1500W

Power supply voltage: AC220V 10% 50Hz(Voltage can be customized according to requirements)

Product size (mm):600 x 600 x 600

Humidification amount:15L/hour

Application area:150-180 square meters 2.5 meters tall

Automatic wet control:can be achieved unattended, can set the humidity you need (99% ~10%)

Automatic feed water

Shell material:stainless steel paint

Working temperature:10C<40C

Product features

1, the box is made of stainless steel, chrome copper core atomization.

2, modular integration, single core can be independent replacement chip.

3, no mechanical operation, with the water level protection switch, running reliably.

4, the characteristics of high atomization efficiency, the overall size of the spray particles only 1~5μ, gasification efficiency of up to 100%.

5, with automatic replenishment water protection and water overflow function, optional drainage device and water softener device, can meet with the requirement of no dust pollution in the calcification.

6, with the power of the fan delay function.

7, according to the environmental humidity value for automatic control.

Industrial Ultrasonic humidifiers use a piezo-electric transducer to create a high frequency mechanical oscillation in a body of water. The water tries to follow the high frequency oscillation but cannot because of its comparative weight and mass inertia. Thus, a momentary vacuum is created on the negative oscillation, causing the water to cavitate into vapour. The transducer follows this with a positive oscillation that creates high pressure compression waves on the water's surface, releasing tiny vapour molecules of water into the air. This is an extremely fine mist, about one micron in diameter, that is quickly absorbed into the air flow. Since the mist is created by oscillation, not heat, the water temperature need not be raised. Ultrasonic humidifiers, therefore, can create instantaneous humidity, and don't have to wait for a heating element to boil the water. This precise on/off humidity control is the hallmark of ultrasonic humidifiers.

Application range

Textile industry, papermaking industry, computer rooms, electronic industry, spraying industry, plastic industry, artificial landscape, printing industry, laboratory, tobacco industry, HVAC industry, storage, food industry, planting and breeding industry.

addition, unlike wet pad humidifiers, ultrasonic units can be of comparatively small size, and still produce significant amounts of vapour.

Maximum energy saving uses up 93% less electricity than electric steam humidifiers with the same output.

The DYJ Series ultrasonic humidifiers from Humidifirst are designed for to be fitted inside air handling units and ventilation ductwork. Their unique discharge nozzles are reversible, allowing left or right sided access through existing ductwork. Patented discharge design allows for higher ducted air velocities (1.5 -10 Meters/sec).

Installation is simplified with factory checked quick-connect water valves. The DT Series is made entirely of high-grade stainless steel.

Thanks to Humidifirst’s advanced control system full humidification is available without delay as soon as required. Likewise humidification stops as soon as the demand is stopped. A choice of humidity controllers, ranging from a mechanical on/off humidistat to a state-of-the-art microprocessor with proportional control and modem interface is available.
