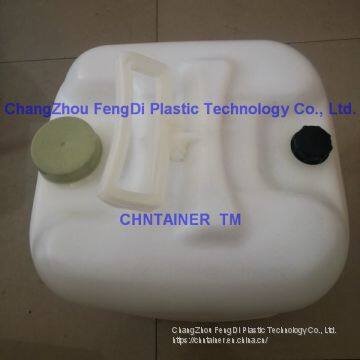

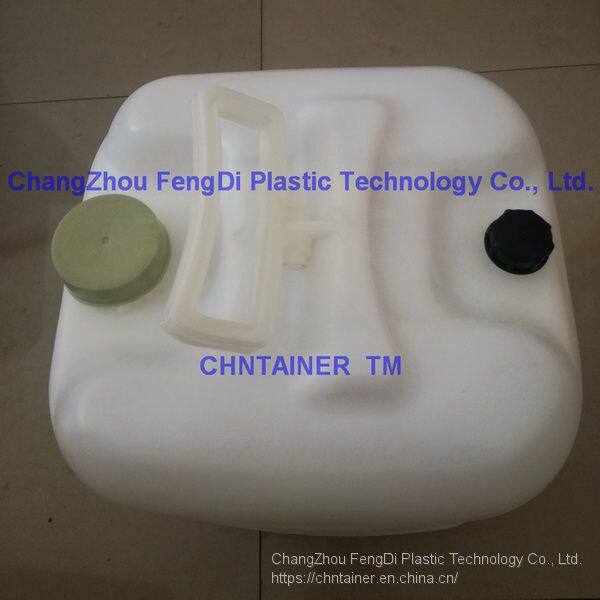

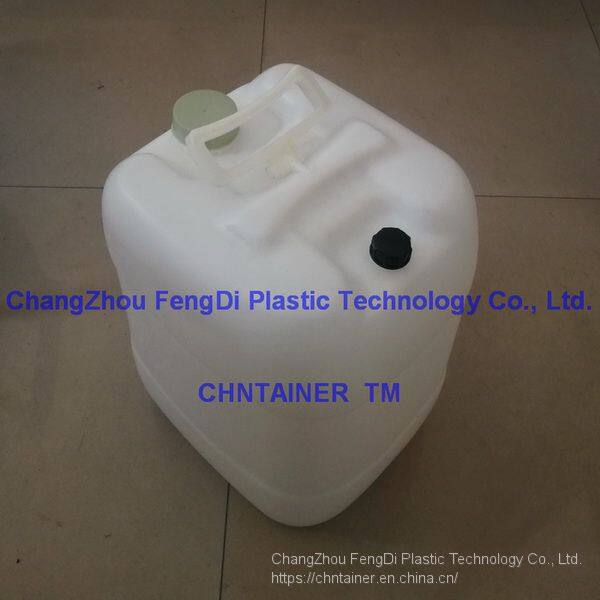

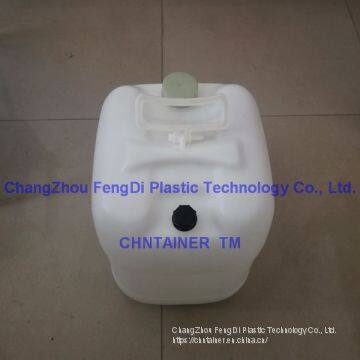

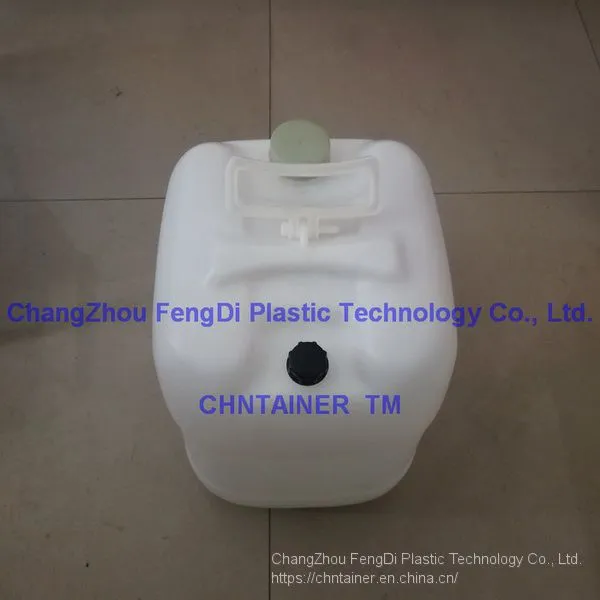

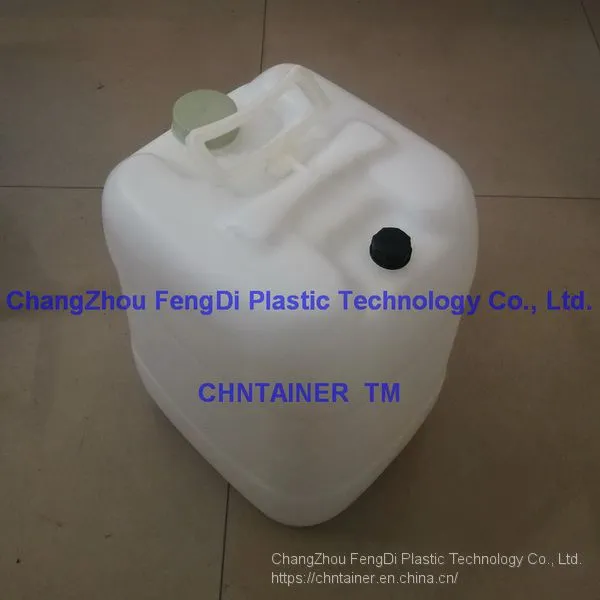

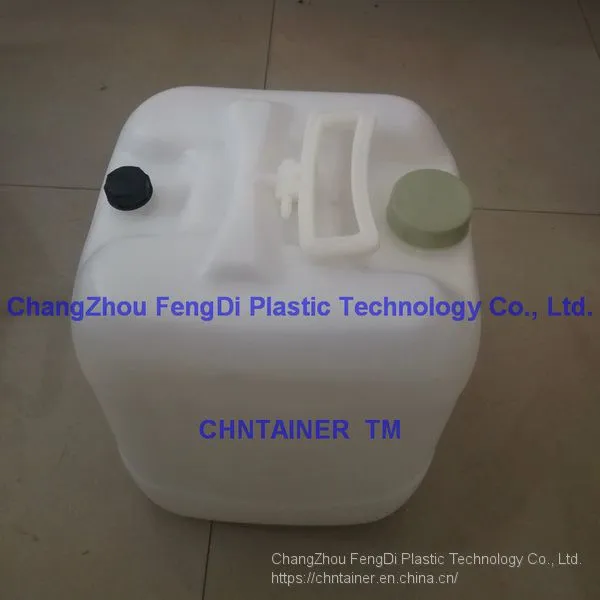

Closed Head Drums 20L with swing handle
The Rectangular HDPE shaped drums made of High Density Polyethylene that includes a molded in handle and recessed panel area for sleeve retention. The package is ideal for use as a shipping container for a wide range of Chemicals and numerous general uses.Lightweight, durable, drums are UN approved for hazardous materials.Easy to handle, rust proof, and UV protected.
SPECIAL FEATURES:
Model No.:CFD-JCD-3020A
Materials: HDPE,High-density Polyethylene
rigid and shatter-proof
slightly transparent in thin layers, in thicker layers weakly translucent to opaque white
resistant to water, aqueous solutions and most chemicals
excellent water vapour resistance
Color: Natural or Blue,and Custom colors are available.
Capacity: 20 Litres / 5 gallon
Weight: approx. 1450 g
Base Dimensions: 280×255 mm
Height: 395 mm
Neck Finishes:45mm neck
Handle: drum includes a molded in handle for ease of pouring and transport,D-handle or integrated (stationary) handle
Closures: DIN61mm Tamper Evident Screw caps, Will accept induction seals.
Gasket Seal: EPE wad,
Packaging: drums may be delivered in shipper cartons or pallets. Shipper carton quotes based on carton specifications.
FILLING RECOMMENDATIONS
Compatibility of the bottle with the fill product is the responsibility of the filler.
Contents should not exceed 70°C (158°F) at time of fill.
Filled containers should not be stacked and stored above 50°C (122°F).

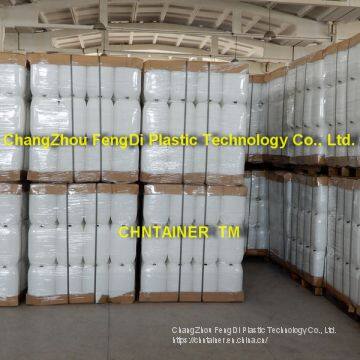

PACKAGING AND SHIPPING DATA

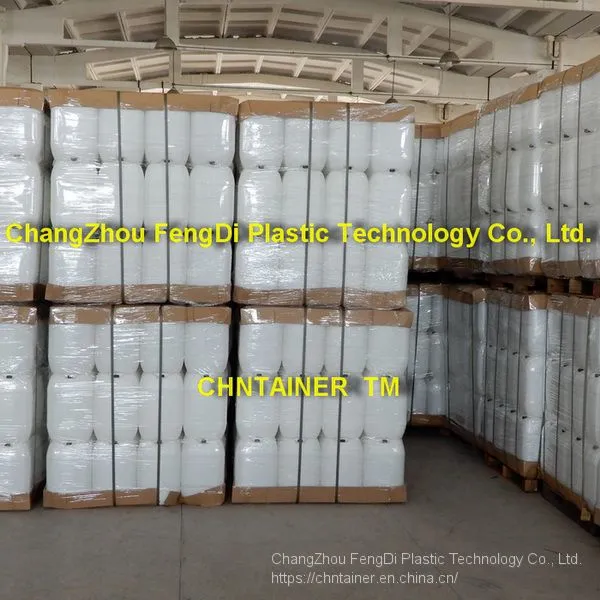

Packaging includes top and bottom corrugate trays, secured with strapping and stretch wrap.
EMBOSSMENTS AND MOLD OPTIONS
18 mm screw top vent with cap.
Stacking lugs for most rectangular tight-heads, graduation marks.
Scoop bottom, Tags in top section.
OTHER
UN packaging meets Y and Z regulations
All containers are reusable,recondition able and recyclable.
APPLICATIONS
Paints, Coatings, Adhesives,Mastics, Additives, Agricultural Chemicals and other Viscous Products.
These containers are suited for use in food,chemical,swimming pool,and water conditioning industry,and also in the transport of many hazardous materials. 100% tested,containers are designed for dense palletizing and stacking. Features a molded handle with construction, large labeling areas, and include a polyvinyl chloride gasket in the cap. Made of high density polyethylene, they can withstand cold sterilization, and are odorless and flavorless.
CFDPLAS CHNTAINER® Blow Molded Product Range
CFDPLAS has many decades of experience manufacturing a wide range of both injection and blow molded plastic shipping containers, including:
Bottles: 0.5L to 5L
Tight head Containers/Drums: 2.5L to 220L
Jerrycans 2,5 to 5 and 10 to 30 l with UN approval.
Jerrycans 20, 25 and 30 l also available in blue colour.
Universal jerrycan for industry, trade and laboratories.
The jerrycans with a comprehensive range of closure accessories can be used for almost any purpose.
Collapsible LDPE Containers(cubitainers): 1L to 25L
Collapsible water Jerry Cans:5L,10L,15L,20L
These units are equipped with the popular CHNTAINER® style swing handle on the top face to facilitate easy lifting and handling.
High molecular weight HDPE
Integrated 70mm opening
18mm pouring vent with screw cap
Safe, snug fit on pallets with no wasted space
Maximizes shipping & storage savings
Ample label/screen decoration area
UN rating: 3H1/Y18/100
Meets FDA standards
Item Information:
Item Number:CFD-JCD-3020A
Manufacturer:CFDPLAS
Manufacturer Part #:CFD-JCD-3020A
Tech Specs:
Style:Rectangular Container
Material: HDPE
Capacity: 5 Gallon/20 Quart
Color: White
Mouth:
Type: Drum/Barrel
Weight: 2.926 lbs
