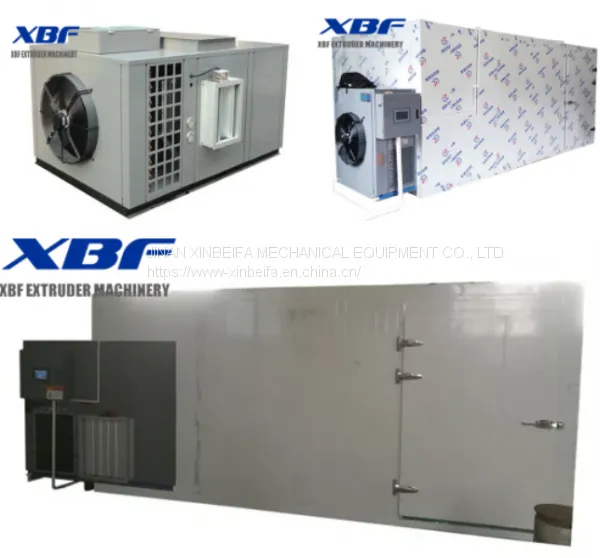

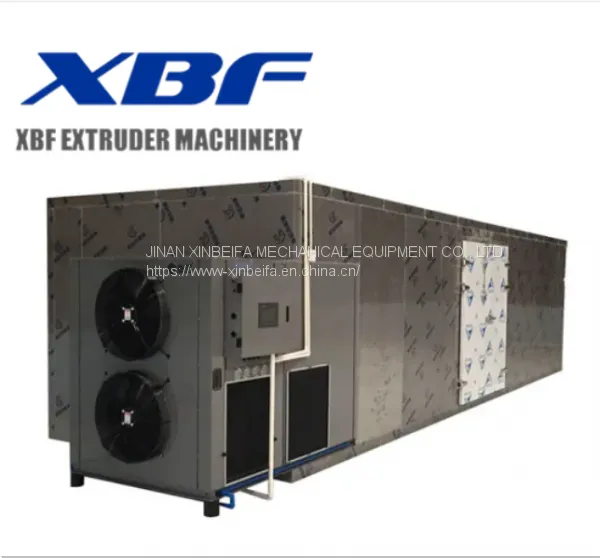

Energy-Saving Air Source Heat Pump Dryer for Dried Rice Noodle Food/Fruit Drying Machine/Vegetable Dehydrator

Energy-Saving Air Source Heat Pump Dryer for Dried Rice Noodle

Quick details

Applications:Agricultural products, food, tea, vegetables, fruits

Condition:new

Type:Drying oven

Country of origin:Jinan, China

Brand name:Jinan xinbeifa machinery equipment co. LTD

Voltage:220v/380v can be customized according to different customer needs

Power (W) :7.5 kw

Dimension (L * W * H)2.2 m * 1.9 m * 2.3 m

Weight:500 kg

Certification:CE, ISO

Quality assurance:1 year

After-sales service: provide

Online support, video technical support, free spare parts, on-site installation, debugging training, on-site maintenance and repair services

Installation:Guided by our engineers

Operation:Fully automatic

Material:Stainless steel, baking varnish

Capacity:Can be customized

Color:Can be customized according to customer requirements

Fuel:electricity

 Item:air drying clothes machine

Product Details

The heat pump drying technology uses a working medium (such as ammonia, water, etc.) to evaporate under reduced pressure in the evaporator, so that the surface temperature of the evaporator is lower than the indoor air dew point, so that when the air flows through the evaporator, it is cooled and lowered below the dew point. When the excess steam in the air is condensed and precipitated on the surface of the evaporator, the condensed water is poured into the water tray and then drained into the water container by the drain pipe. After the liquid working medium is heated and vaporized, it is sent to the condenser through the compressor, and the condenser emits a large amount of latent heat of vaporization under high temperature and high pressure. When the air cooled in the evaporator passes through the condenser, the endothermic temperature rises, and is discharged in a dry state, and is mixed with the room air. Thereby reducing the indoor air humidity and achieving the purpose of drying and dehydrating.

Air energy working principle:

XBF dryer USES heat pump evaporator to absorb heat from the outside air.Or recover the waste heat from the drying process.Through the work of the compressor, the energy transport (transfer) drying box drying box repeated circulation after heating the hot air, absorbing moisture material, its temperature and humidification, through the hot air drainage or condensation process, water from the material, finally realize the continuous drying of materials.

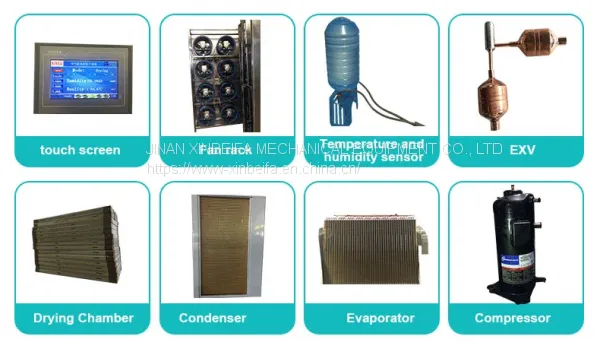

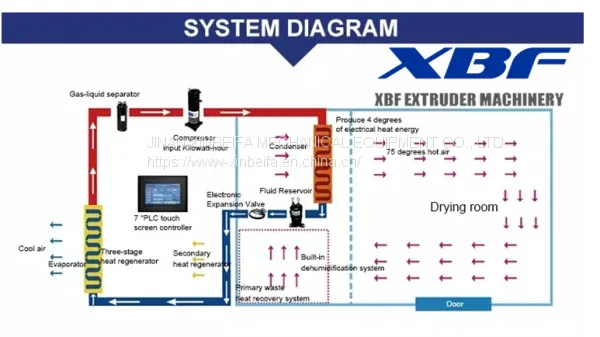

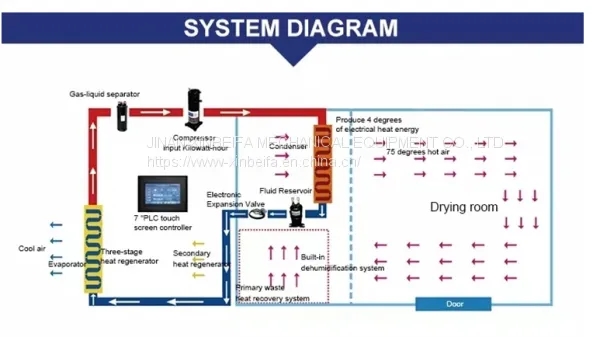

Heat pump drying system composition

1. Main machine (heating system): absorb free heat from air and input a small amount of electric energy for drying materials.

2, drying room: used for placing materials, and insulation, to avoid heat loss.

3. Circulating air system: heat is brought to all corners of the drying room to raise the temperature of the drying room and take away moisture in the material.

4. Moisture drainage system (drying system): the purpose of drying is to discharge the moisture with high humidity in the drying room.

5. Waste heat recovery system: there are three waste heat recovery lines in the drying system, which can minimize heat loss and achieve high efficiency.

6. Drainage system: condensate water is discharged to the outdoor to avoid increasing indoor air humidity.

7, programmable intelligent control system: according to the most appropriate drying process curve, automatic adjustment of temperature and humidity, drying time, intelligent operation.

8. Early warning system: early warning can be set according to the requirements of the user, according to time, temperature, humidity and other parameters, convenient to remind the user.

Applications:

widely used in hot air drying projects below 85 degrees, such as: edible fungi (mushroom, fungus, morels, tea mushroom, bamboo sun);Chinese herbs (honeysuckle, panax notoginseng, gastrodia elata, rhubarb, ginseng);Fruits (jujube, kiwi, blueberry);Vegetables (pepper, daylily, dried vegetables, Chinese yam);Industrial (buddhist incense, preserved meat, bamboo products, tobacco, tea);Fruit (apple, banana, kiwi), etc

Other vegetables and friut

The advantages of dryers

1, stable, not restricted by the weather: whether cloudy days and rainy days, day and night, wind and snow, all-weather stable operation.

2. Energy saving and high efficiency: using clean electric energy to work, the drying operation cost is only 40% of oil drying equipment, 60% of coal drying machine and 30% of electric heating drying machine, saving more than 60% of energy compared with ordinary drying equipment.A closed dehumidification mode is adopted, without discharging waste heat to the outside world.Patented level 3 waste heat recovery technology, rapid discharge of water while your heat loss.

3. Good effect: the finished product after drying has a good appearance;High active components;Uniform drying, 360 degrees without dead Angle drying.

4. Small footprint and easy installation: the equipment only needs a small installation site;Drying room on site assembly is simple and convenient.

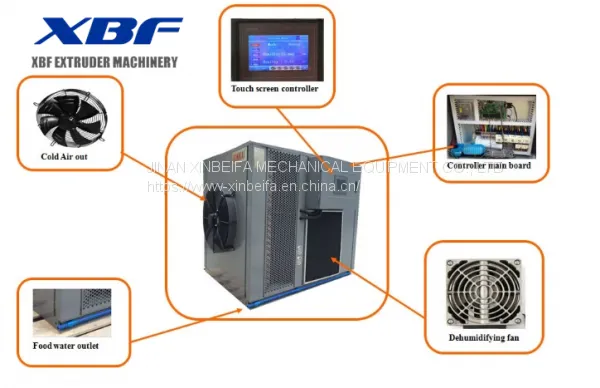

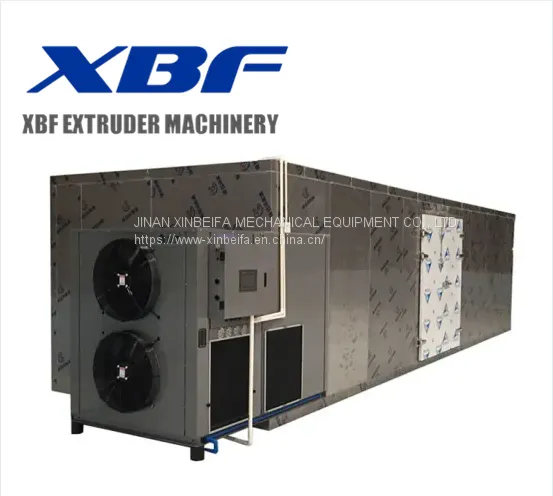

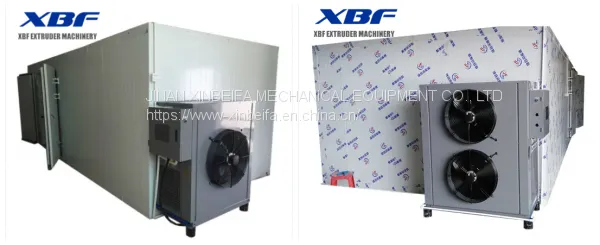

Product Details Show

Product Parameters

Warm prompt: We can make any drying chamber sizes as your required. Our Services

A. Payment service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.

FAQ

1.Why so many customers choose us

2.What's your payment terms?
Our payment terms is 40% T/T as down payment, 60% by irrevocable L/C at sight or T/T before delivering.
3. What's your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service
4. How about the installation?
We will dispatch our engineers to your factory to guide you installation and commissioning work and training your operator.
5. I want to do many shapes and many tastes. Is it ok?
Answer: The shapes depends on the dies, we can design the dies according to your special request. And we will supply a basic formula. You can adjust and find the best formula to meet your target market's taste.

Machine packing & Shipping

· All Machine will be cleaned and whole wraped by plastic film to avoid any scratch;

· Extra Spare Parts,wires and tool box will be placed with the package;

· Delivery Department and sales will check the list to avoid any missing;

· All Wooden Cases for protecting the machine during long-time shipment

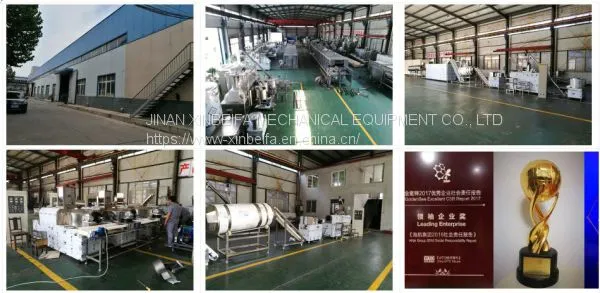

company information
Jinan xinbeifa machinery equipment co., LTD. Has professional designers, experienced technicians and advanced processing equipment.With years of production experience, our company has independently developed a variety of types of expanded food equipment and before and after end auxiliary equipment, product sales throughout all provinces, cities, autonomous regions, and exports to Australia, the Netherlands, Pakistan, Malaysia, myanmar and other Asia, Europe and America.Our company adhering to the "service for you, let you trust" business purposes;In the principle of mutual benefit and common development, based on a high starting point, large investment, high level of operation;Adhere to high standards, refined production standards, ensure that every production link, to create a safe brand.

Our certificate

         Contact us
