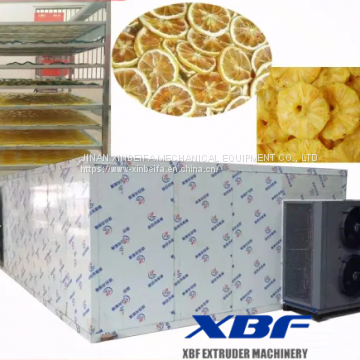

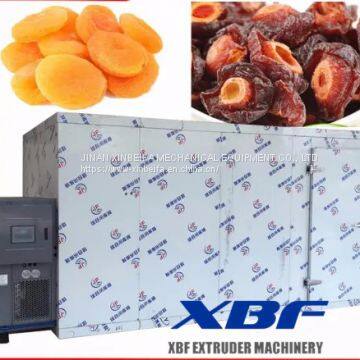

Hot selling fully automatic fruit and vegetable air oven dryer
Quick details
Applications:Agricultural products, food, tea, vegetables, fruits
Condition:new
Type:Drying oven
Country of origin:Jinan, China
Brand name:Jinan xinbeifa machinery equipment co. LTD
Voltage:220v/380v can be customized according to different customer needs
Power (W) :7.5 kw
Dimension (L * W * H)2.2 m * 1.9 m * 2.3 m
Weight:500 kg
Certification:CE, ISO
Quality assurance:1 year
After-sales service: provide
Online support, video technical support, free spare parts, on-site installation, debugging training, on-site maintenance and repair services
Installation:Guided by our engineers
Operation:Fully automatic
Material:Stainless steel, baking varnish
Capacity:Can be customized
Color:Can be customized according to customer requirements
Fuel:electricity
Item:air drying clothes machine
Product Details
Air heat pump dryer is a new type high efficiency energy-saving dryer, its working principle is based on the principle of the reverse carnot cycle, use a small amount of electric energy, using the compressor, the working medium after expansion valve evaporated into gas in the evaporator, and a large number of absorbing heat from the air, gaseous medium by compressor compressed into high temperature and high pressure gas, and then into the condenser heat, heat drying medium, so heating cycle, can put the dry heating medium to 40 ℃ ~ 85 ℃.Compared with electric heating dryer, it saves two thirds of electric energy.

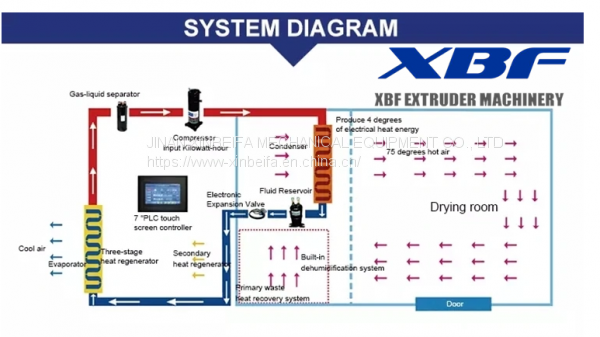

Air energy working principle:
High temperature heat pump drying units, mainly finned evaporator (machine), compressor, fin condenser (machine) and expansion valve of four parts, by making the working medium continuously complete evaporation (absorb heat from the outdoor environment) to compression, condensation (gives off heat drying room) indoors to throttle, thermodynamic cycle process of evaporation, again to the external environment at low temperature in the heat transfer to the drying room, under the action of refrigerant in the compressor circulating in the system.It made within the compressor gas booster heating process (temperature up to 100 ℃), it enters the release of the high-temperature heat drying room air, while being cooled and translated into flow liquid when it runs to the outside machine, rapid heat evaporating liquid into a gas again, at the same time, the temperature can fall to - 20 ℃ ~ 30 ℃, then the air surrounding the heat absorber will continue to transfer heat to the refrigerant
Applications:
widely used in hot air drying projects below 85 degrees, such as: edible fungi (mushroom, fungus, morels, tea mushroom, bamboo sun);Chinese herbs (honeysuckle, panax notoginseng, gastrodia elata, rhubarb, ginseng);Fruits (jujube, kiwi, blueberry);Vegetables (pepper, daylily, dried vegetables, Chinese yam);Industrial (buddhist incense, preserved meat, bamboo products, tobacco, tea);Fruit (apple, banana, kiwi), etc
Dryer Features:
1- Most of the hot air circulates in the tank, which is highly efficient and saves energy.
2- With forced ventilation, the box is equipped with an adjustable air distribution plate, and the material is evenly dried.
3- The heat source can be widely used in steam, hot water, electricity, and hot air furnaces.
4- The whole machine has low noise and stable operation. Temperature control, easy installation and maintenance.
5- Wide range of applications, can dry a variety of materials, is a general drying equipment.

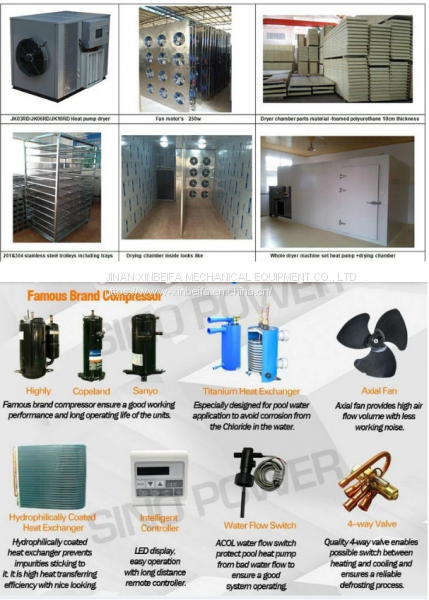

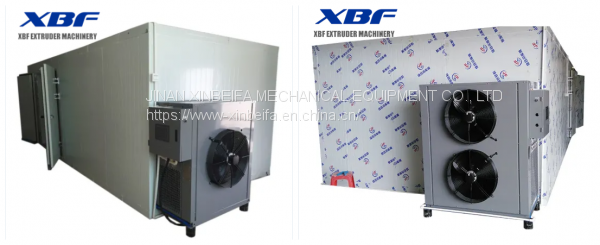

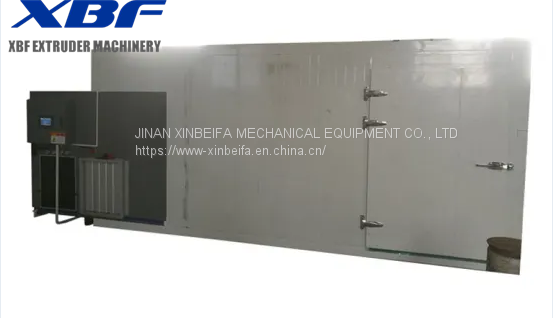

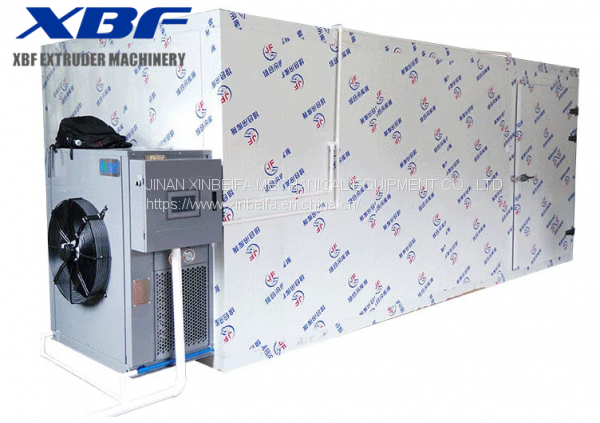

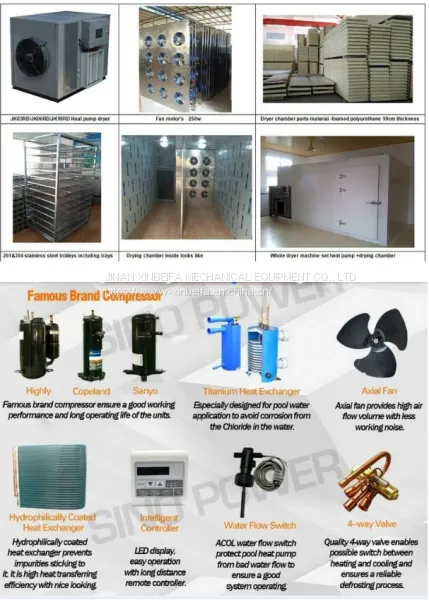

Product Details Show
Product Parameters
Type |
3P |
8P |
15P |
Heat pump power ( KW ) |
2.4 |
6.4 |
12 |
Auxiliary electric heating power ( KW ) |
3 |
12 |
24 |
Dimensions ( m ) |
3.3*2*2.2 |
5.5*2.2*2.7 |
8*3*2.8 |
Quantity of fan ( set ) |
0.25 KW * 8 |
0.25 KW * 16 |
0.75 KW * 16 |
Hot air supply method |
Side hot air supply |
Back hot air supply |
Back hot air |
Warm prompt: We can make any drying chamber sizes as your required.
Our Services
A. Payment service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
Why choose us
Machine packing & Shipping
· All Machine will be cleaned and whole wraped by plastic film to avoid any scratch;
· Extra Spare Parts,wires and tool box will be placed with the package;
· Delivery Department and sales will check the list to avoid any missing;
· All Wooden Cases for protecting the machine during long-time shipment
company information
Jinan xinbeifa machinery equipment co., LTD. Has professional designers, experienced technicians and advanced processing equipment.With years of production experience, our company has independently developed a variety of types of expanded food equipment and before and after end auxiliary equipment, product sales throughout all provinces, cities, autonomous regions, and exports to Australia, the Netherlands, Pakistan, Malaysia, myanmar and other Asia, Europe and America.Our company adhering to the "service for you, let you trust" business purposes;In the principle of mutual benefit and common development, based on a high starting point, large investment, high level of operation;Adhere to high standards, refined production standards, ensure that every production link, to create a safe brand.
