Help CenterHD01 Dosyu Set-top TV Box Decoder(DVB-T/DVB-T2/C)
Related Products
-
HT01 Dosyu Android OTT Smart TV Box 4+32GUS$ 34 - 40MOQ: 500 Pieces -
BM01 Dosyu OEM Portable 4G LTE MIFI Portable Pocket Outdoor Wifi Hotspot RouterUS$ 31.5 - 41.5MOQ: 500 Pieces
-
IH01 Dosyu Home Security CCTV CameraUS$ 18.7 - 28.7MOQ: 1000 Pieces
-
TP01 W50 1500 Lumens Home Theater 800x480 Resolution Projector in Dosyu BrandUS$ 39 - 62MOQ: 500 Pieces
-
Set Top BoxNegotiableMOQ: 2500 Pieces
Hardware
CPU: Nationalchip-GX3235S (600MHz)
Memory: 512 Mbit DDR2
Flash: 4M bytes
TUNER: MXL608-AG-T

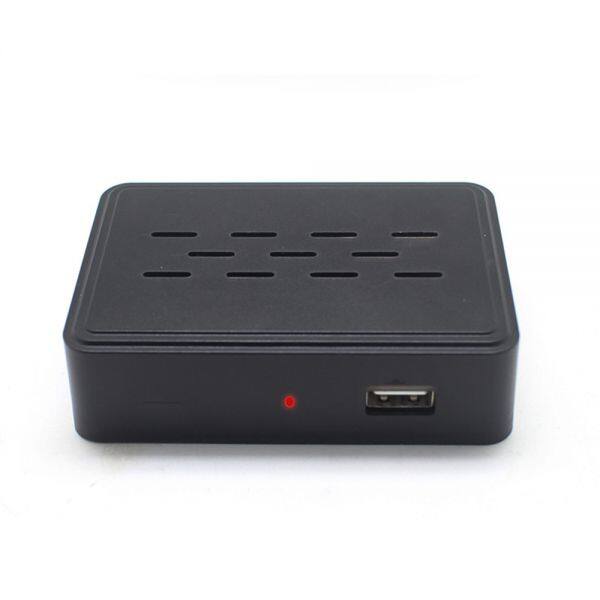

Front Panel:
USB 2.0 Embedded one Host
PILOT LAMP on front panel

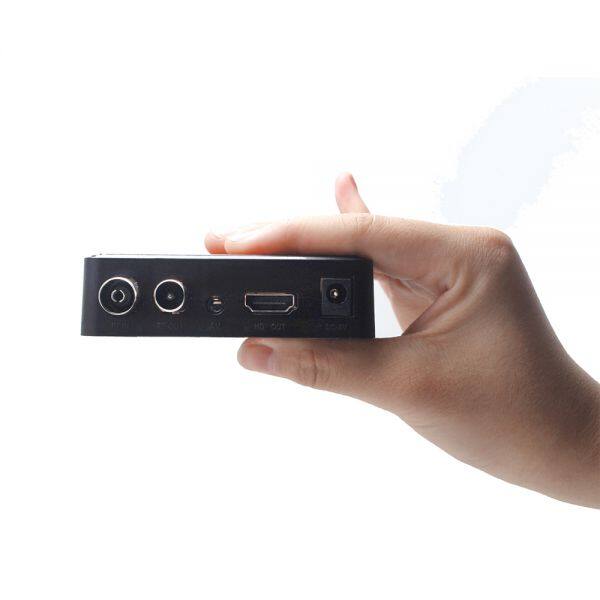

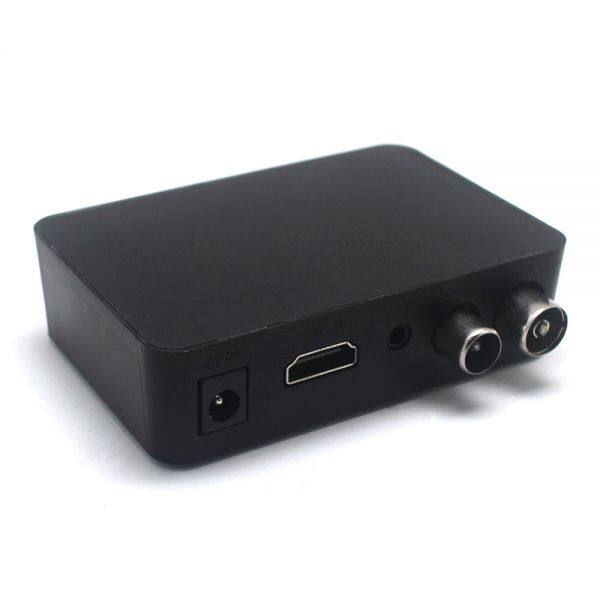

Rear Panel:
Tuner RF input connector
EC-type IEC169-2 Female
HDMI 1.4
USB 2.0 X1
AV port 1(VIDEO,AUDIO-R,AUDIO-L)
Power DC 5V
Demodulation
Terrisal Receiver Standard: DVB-T/DVB-T2/C
Input RF Frequency: VHF:177.5~226.5 MHz:UHF 474~866MHz.
Bandwidth: 7MHz,8MHz
Demodulatio: COFDM, 16QAM, 64QAM, 256QAM
FEC: 1/2, 2/3, 3/4, 3/5,4/5,5/6, 7/8
FFT Mode: 1K/2K/4K/ 8K/16K/32K
Input level: Min -78dbm max -20dbm(64QAM,8K 1/8,7/8)
Sortware Features
used for any DVBT/DVBT2/C countries like Germany/UK/Italy/France/Spain/Sweden/South African/etc
Supports all DVBT/DVBT2/C broadcast , MPEG-2/MPEG-4 AVC/H.264 HD
compliant
Multi-bilingual OSD language, audio language and subtitle language supported
Supported 7-Day EPG function, VBI Teletext
Full Screen,4:3,16:9 Aspect Ratio supported
USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback,WIFI Dongle
Video output resolution: 480p/576p/720p/1080i/1080P(Automatic PAL/NTSC conversion)
Decoder
Video Decoder:
H.264 Video(ISO/IEC 14496-10),BP/MP/HP up to L4.1
MPEG-4 video(ISO/IEC 14496-2),SP/ASP up to L5
MPEG-2 video (ISO/IEC 13818-2),MP at HL
MPEG-1 video(ISO/IEC 11172-2)
Decoding up to 1920x1080p at 30fps
Audio Decoder:
MPEG-1 Layer I/II, MP3 decoding
MPEG-4 AAC and AAC PLUS(HE-AACv1 and v2) audio
supports Dobby Digital(AC-3) decoding
Powerful Multimedia Features
MediaCodec: AVI. VOB .MP4, .MKV, MPG.FLV.TS etc
Audio Codec: WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec: JPEG, BMP, PNG,GIF(unsupport interlace GIF),TIFF
Network
Network Application:online video , YouTube,MEGOGO
USB Wi-Fi Dongle:Ralink7601($1.6)
Accessories
gift box
AV cable optional
IR remote control
Battery
User Manual
