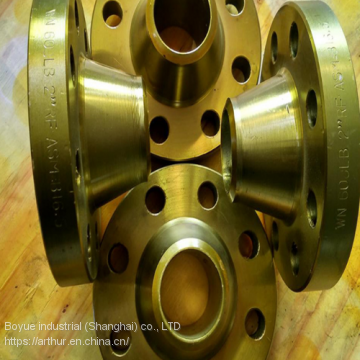

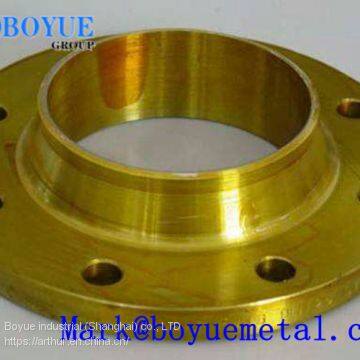

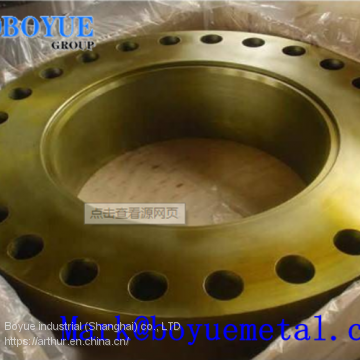

Nickel alloy Flange 4" #900 Socket Welding ANSI B16.5 ASME B16.47 FLANGE

Hastelloy C - 22 N06022 1 #150 Socket Welding ANSI B16.5 ASME B16.47 FLANGE

Specifications

We can supply High Quality ANSI B16.5 ASME B16.47 FLANGE

Size range: 1/2" to 80" DN15 to DN2000

Design: welding neck, slip on, blind, socket welding, threaded, lap-joint

Pressure: 150#, 300#, 600#,900#,1500#, 2500#

Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS

Material: carbon steel A105, stainless steel 304/304L, 316/316L

Coating: black paint, yellow transparent paint, cold and hot dip galvanize

Package: seaworthy plywooden case, wooden pallet

1.DIN FLANGES

Standard:
DIN2527,DIN2566,DIN2573,DIN2576,DIN2641,DIN2642,
DIN2655,DIN2656,DIN2627,DIN2628,DIN2629,DIN2631
DIN2632,DIN2633,DIN2634,DIN2635,DIN2636,DIN2637
Types:
Welding neck FflangesSlip on FlangesThreaded Flanges
Socket Welding Flanges, Blind Flanges

PRESSURE GRADE:
6Bar,10Bar,16Bar,25Bar,40Bar
SIZE: DN10-DN1000

2.ANSI FLANGES

Standard:
ANSI B16.5;ANSI B16.47;MSS SP44;ANSI B16.36
ANSI B16.48

Types:
Welding Neck Flanges, Slip on Flanges, Threaded Flanges,
Socket Welding Flanges, Blind Flanges, Orifice Flanges,
Lap Joint Flanges, Ring Joint Flanges, Long Welding Neck Flanges, Figure 8 Blanks

PRESSURE GRADE:
Class150,Class300,Class600,Class900,Class1500,Class2500

SIZE: 1/2" NB TO 48" NB

3.JIS B2220 FLANGES

Types:Sop type; Soh type; Plate Flanges; Blind Flanges

Pressure Class5K10K16K20K30K

SIZE:10A-1500A

4.BS FLANGES

Standard: BS 4504 SEC 3.1 :

Standard: BS 10 : Welding neck Flanges, Plate Slip-on Flanges, Screwed Boss Flanges, Slip on Boss Flanges, Blind Flanges
TYPES: Table: D, E, F, H
SIZE: 1/2" NB TO 48"NB

5.EN 1092-1:2001 FLANGES

SIZE:TYPE1(Plate Flanges); TYPE2(Losse Plate Flanges); TYPE5(Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip-on Flanges For Welding); TYPE13(Hubbed Threaded Flanges)

Pressure ClassPN2.5PN6PN10PN16PN25PN40PN63PN100

SIZE: 1/2" TO 48"

6.UNI FLANGES

TYPES: (PLSOWNBLTH) FLANGES

Pressure ClassPN0.25-250MAP

SIZE: 1/2" TO 48"

7.GOST FLANGES

TYPES:Plate Flanges(GOST12820-80); Blind Flanges(GOST12836-67); Wedling neck Flanges(GOST12821-80); Steel Butt-Welded Flanges GOST12821-80

Pressure Class:PN=0.6--PN10,0 (100 /2)

SIZE: 1/2" TO 48
