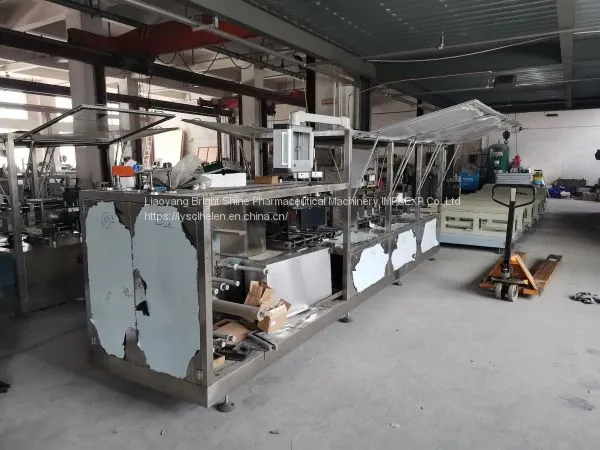

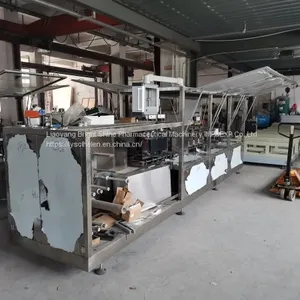

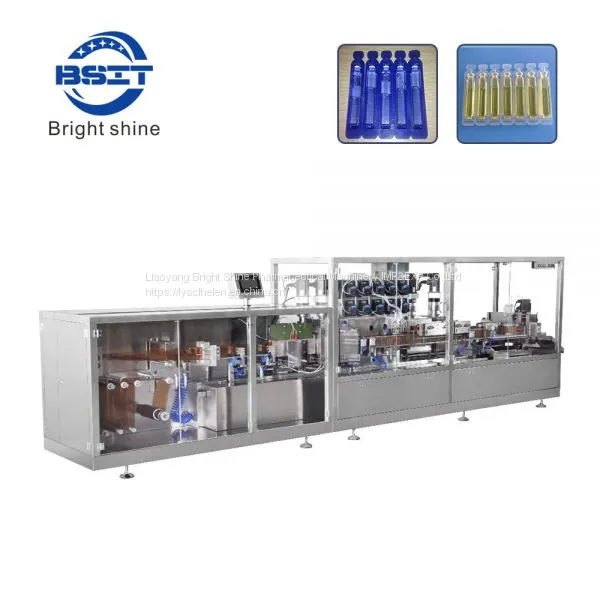

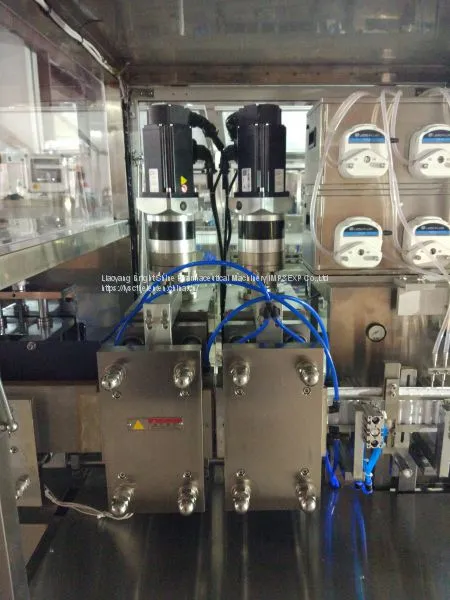

oral liquid plastic ampoule filling and sealing machine under 220V60HZ3P
configuration
1.Filling heads:10pcs
2.: Peristaltic Pump:10pcs
3. Original voltage:380V50HZ3P, which can be changed to 220V60Hz3P
4.The filling tip is made of 316/304 stainless steel.

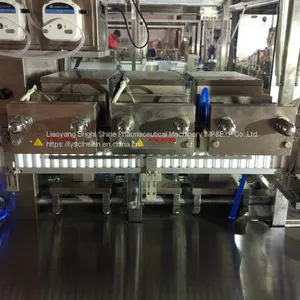

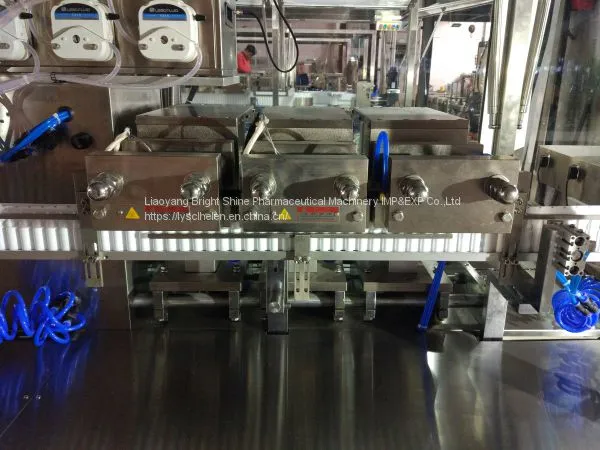

5.Operation Press:(FFS)Forming+Filling+Sealing
6. Equipped with one set of free moould
Technical parameter
| Production | about 200pcs/min |
Packing material |
PET\PE PVC\PE PVC\EVOH |
Capacity |
1-100ml |
Power |
22Kw |
Voltage |
380V/50Hz(depend on customer request) |
Whole machine’s weight |
2000Kg |
Outer size L x W x H(mm) |
5200x850x1600(mm) |
Application for China suppliers pharmaceutical ampoule sealer withstainless steel material for sale
Our China suppliers pharmaceutical ampoule sealer with stainless steel material for sale is suitable for the unit dose of medicine, drinks, dairy products, health products, foood, cosmetics, perfume, agricultural medicine, fruit purees,etc.
Characteristics for China suppliers pharmaceutical ampoule sealer with stainless steel material for sale
HC high speed and high precision high-end motion controller.

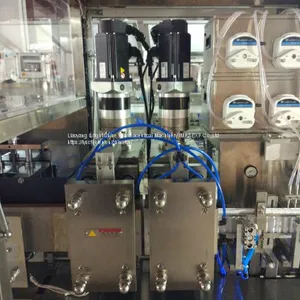

Stepless frequency control of motor speed control. Servo motor control tensile membrane device.
The man-machine interface. Device, the operation is simple.
Automatic discharge volume, a roll of film cutting, can be folded in half.
There are positive and negative photoelectric pattern of version of the function. Products elegant, meet high standards of packaging requirements

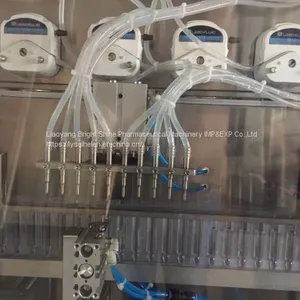

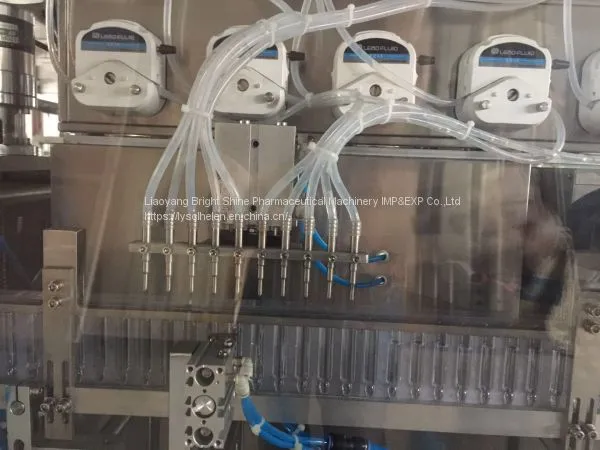

Using electronic peristaltic pump device.
And mechanical pump piston pump control.
Adjustment is convenient.Filling accuracy is correct.
Filling does not drip, no bubble, no overflow.
Parts in contact with the medicine with high quality stainless steel 316L, machinery casings are all SUS304 stainless steel. In line with the GMP standard
At the bottom of the bottle is flat, can stand.
