ICU Ventilator with Compressor(MODEL：DOL600Pro) China

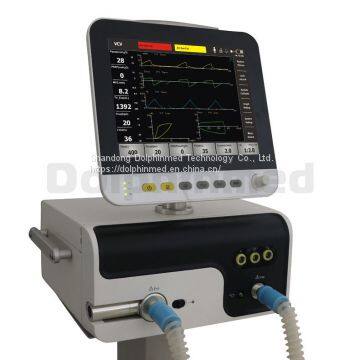

ICU Ventilator with Compressor(MODEL：DOL600Pro)

Medical Ventilator Air Compressors, ICU Ventilator With Compressor, Sevoflurane Vaporizer For Sale

Technical Specifications:

Ventilation mode for adult,pediatric&infant

VCV, VC-SIMV,PCV,PC-SIMV,PSV/CPAP with auto Apnea backup

APRV, PRVC,SIMV-PRVC,Duovent,SmartVent(optional)

NIV, NIV-ST,IPPV, SIPPV, SIMV, PSV, nCPAP, O2 Therapy,nSIPPV,

nSIMV (Optional),Standby

ETS option under pressure mode

Feature：

●A wide range of ventilation at adult，pediatric and infant

●Easy to use interface design,12.1 color touch-screen TFT display and shuttle knob design, quick and efficient operation

●Integrated expiration module build-in heating system could be sterilized whole, ensure use safely and no cross-infection; no-water design, guarantee the precious detection.

●Pressure, volume, time respiratory mode security, could inspect pressure in inspiratory phase, volume, time exceed the regulated value, turn into expiratory, ensure patient safety.

●Simultaneously display of Three Waveforms&Two Loops,ETCO2 &SPO2

●High precious sensor and valve technology make sure the pressure ,flow and volume monitor and control at high safety, stability and precision

●With sensitive pressure and flow double trigger function.

●Build-in inspiratory and expiratory flow sensor, durable and water coagulation resistant.

●Maintenance-free imported flow sensor with heating and filtration technology

●Adjust SmartVent function automatically, adjust inspiratory pressure and breathing frequency, approaching the target tidal volume and minute ventilator.

●Three-level visual and audible alarm information system

●With Inspiration hold&Expiration hold,Manuel Breath and 100% O2 Flushing

●Lowest in class bias flow 2.0lpm，low O2 consumption

●Automatic tube&leakage compensation technology

●Upgradable to main stream Capnography（EtCO2）&Pulse Oximetry（SPO2

●With Non-invasive and invasive ventilation function

●Automatically inspiratory synchronous nebulizing function, nebulizing time adjustable;with tidal volume compensation（1-30 min）

●Built-in backup battery provide the emergency power supply 2 hours to the unit.

Patient Type：Adult，Pediatric，infant(optional)

Tidal volume：Adult 150-2000ml; Pediatric 20-350ml; Infant：2-100ml

Frequency：Adult：1-100 bpm; Pediatric1-150 bpm; Infant：1-200bpm

Inspiration time:Adult&pediatric 0.1-12s,infant:0.1-3s

Monitoring parameter:Ppeak,Pmean,Pplat,PEEP,Vti,Vte,MVe,MV_cont.,MV_spont,  F_Ppeak_insp，F_Peak_Exp,Leak%,Freq,F_cont,F_spont,%F_Spont,I:E,Ti,Te,Ti/T total,FiO2,(SPO2,EtCO2-Optional),Cstat,Cdyn,Rins,Rexp,RSBI,WOB,Auto PEEP,MIP,PO.1

Alarm:Audio and visual alarms

Volumes:VTe high/low.Mv MV high/low,TIdal volume not reached,HIgh leak,

Pressure:Peak Pressure high/low,Pressure limitation.O2 supply high/low/fail,Air supply pressure high/low/fail,Apnea,Apnea Backup,Freq high/low,FiO2 High/low,Circle Block,Circuit disconnection

Power:AC power fail,Low battery,Battery too low   FIO2:21%-100%(0-5 minutes)

Flow Trigger:0-20L/min                        Pressure Trigger：-20-0 cmH2O

Pressure Control：5-120 cmH2O                 Pressure Support：5-120 cmH2O

I:E ratio：1:9.9-9.9:1                          Electronic PEEP：0-50 cmH2O

Nebulizer：0-30 minutes(optional)        100% O2：0-5 minutes

Waveforms：P-T,F-T,V-T，ETCO2 &SPO2(Optional） Loops: P-V,P-V,P-F(optional)

Recall/Reviews： 1500 alarm events,

   72 hours Trend Numerical&Graphical(optional)

   72 hours Breath to Breath Waveform Review（Optional）

General info：

Communication Interface：VGA,USB,RJ45

Net weight：12kg    Battery：120 minutes

Air/Oxygen Gas supply：2.4 to 6.0 bar，Air compressor（Optional）

Dolphinmed is one professonal producer of  ICU ventilator, anesthesia machine, medical air compressor, anesthesia vaporizer, anesthesia ventialtor, veterinary anesthesia machine,  etc.  Dolphinmed are committed to provide the more perfect products and service for clients, to be the most valued medical equipment enterprise.
