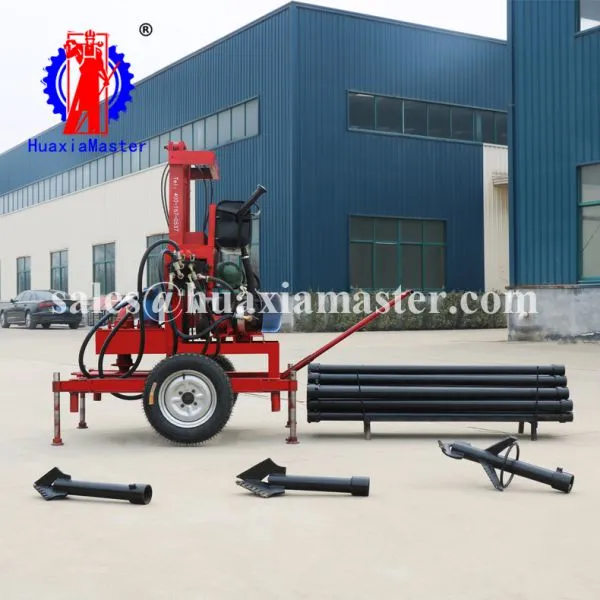

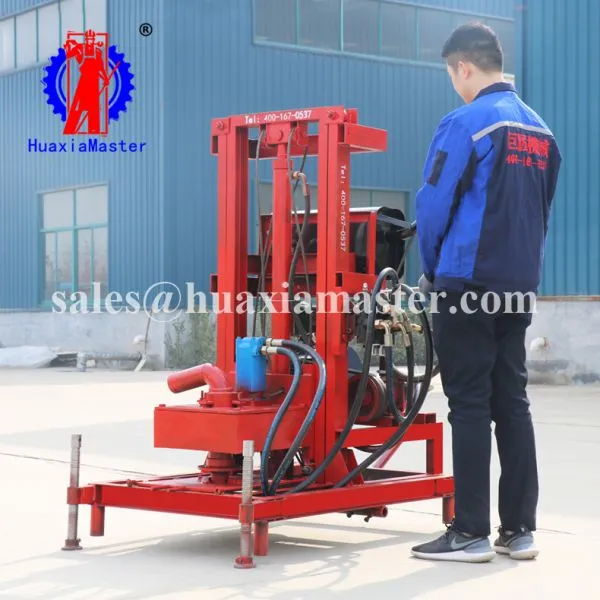

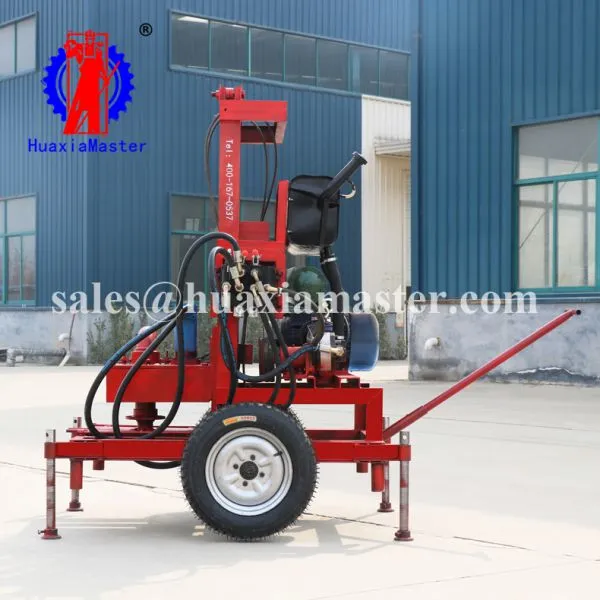

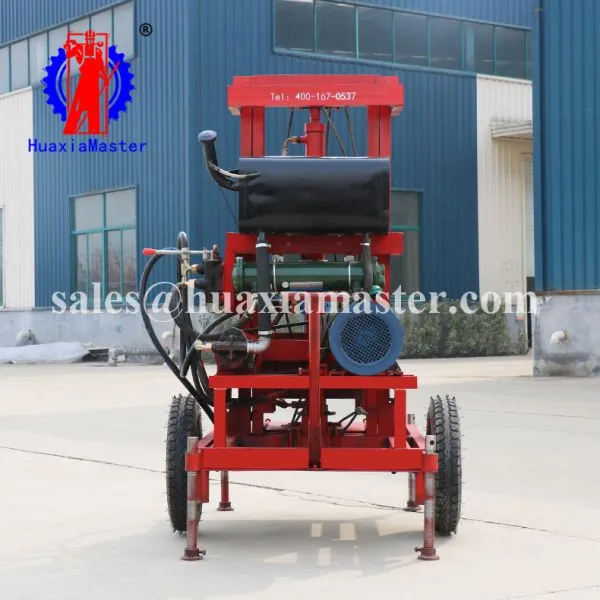

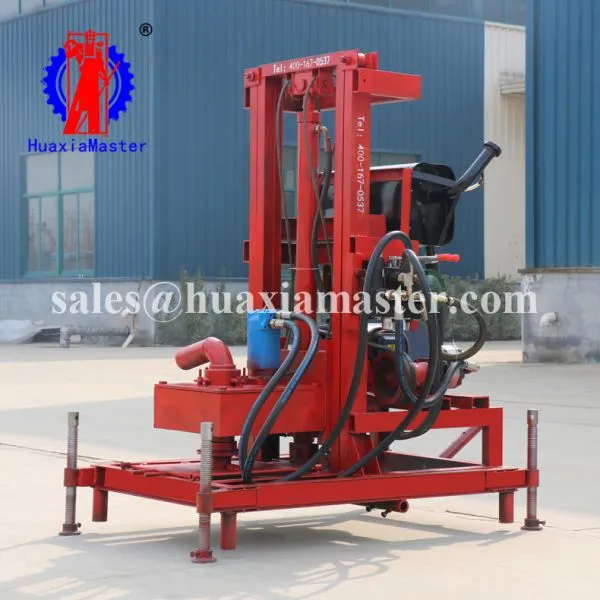

SJDY-3 Three-phase Electric Full Hydraulic Water Well Drilling Rig

1.Introduction of SJDY-3 three-phase electric full hydraulic water well drilling rig

SJDY-3 three-phase electric full hydraulic water well drilling rig is suitable for soil layer, sand layer and a small amount of rock layers. It is mainly used for drilling civil water wells, irrigation wells, ground source heat pump air conditioning wells, precipitation wells, small foundation piles, and sound measurement tube and so on. SJDY-3 three-phase electric hydraulic water well drilling rig is light and compact with high hole-forming speed and low noise. The machine automatically unloads the drill pipe and is easy to move.

2. Parameters of SJDY-3 three-phase electric full hydraulic water well drilling rig

Drilling depth

m

0~120

Maximum opening hole diameter

mm

500

Final hole diameter

mm

150~500

Drill pipe specifications

mm

Φ60*1500

Rated voltage

V

380

Rated power

kw

7.5

Spindle torque

N.m

500

Rated lifting force

kn

10

Lift stroke

mm

900

Rig weight

kg

320


Product Tags: Small Water Well Drilling Rig , Three-phase Electric Full Hydraulic Water Well Drilling Rig , Drilling equipment
