Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > 20 Meter KHYD110 Portable Electric Motor Rock Drilling Rig Mine Drill For Prospect Water

20 Meter KHYD110 Portable Electric Motor Rock Drilling Rig Mine Drill For Prospect Water

20 Meter KHYD110 Portable Electric Motor Rock Drilling Rig Mine Drill For Prospect Water photo-1
20 Meter KHYD110 Portable Electric Motor Rock Drilling Rig Mine Drill For Prospect Water photo-2

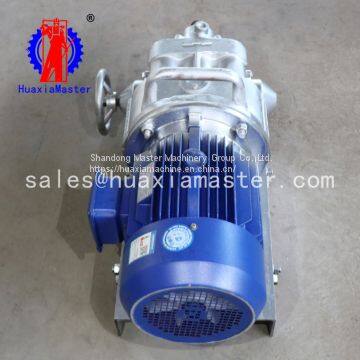

20 Meter KHYD110 Portable Electric Motor Rock Drilling Rig Mine Drill For Prospect Water photo-3
20 Meter KHYD110 Portable Electric Motor Rock Drilling Rig Mine Drill For Prospect Water photo-4
20 Meter KHYD110 Portable Electric Motor Rock Drilling Rig Mine Drill For Prospect Water photo-5
US$ 1100 - 1600 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
huaxiamaster
Place of Origin:
China
Model Number:
KHYD110
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
5 days
Brand Name huaxiamaster
Place of Origin China
Model Number KHYD110
Type Rotary Drilling Rig
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 6 months
Weight 110KG
Dimension(L*W*H) 950*460*430MM
Power Type Electric
Usage Coal
Condition New
Power(W) 5.5KW

KHYD110 electric rock drilling rig

  1. Brief introductions of KHYD110 electric rock drilling rig

  • The electric rock drilling rig can be fitted with drill stand, and can be drilled horizontally or upward in any direction.

  • In order to prolong the service life of the drill bit and improve the working conditions of the operator, wet drilled water can be used to discharge the powder and screw blade drills can also be used for dry draining.

  • In the operation of electric motor rock drilling rig, we only need to operate the handwheel, and the electric motor rock drilling rig can advance itself and return quickly.

  1. Specifications of KHYD110 electric rock drilling rig

Model

Unit

KHYD110

Rated output power of motor

kw

5.5

Rated voltage of motor

v

380/660

Rated frequency of motor

hz

50

Rated current of motor

a

11.6

Motor speed

r/min

1440

Motor phase number


three phase communication

Rated working mode


continuity

Drilling speed

mm/min

280

Speed of return

m/min


Borehole diameter

mm

42-80rock

Hardness range

protodikonov`s scale of hardness

f

Maximum drilling depth

m

20rock

Weight of drilling rig (excluding runways, drill pipes, drills)

kg

110

Dimension (length * width * height)

mm

950*460*430



Product Tags: can be drilled horizontally or upward in any direction , wet drilled water can be used to discharge the powder , screw blade drills can also be used for dry draining
