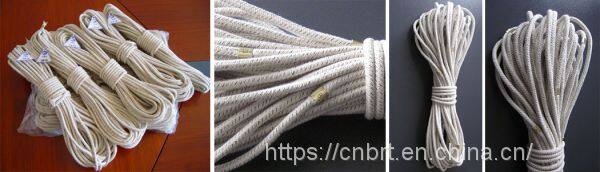

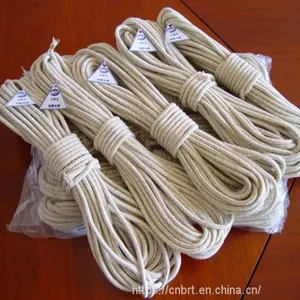

Anti-Electrostatic Sampling Rope
Model: BSF-I
The product is conforming to SY/T 7355-2017
| External Diameter | Weight(Kg/100 Meters) | Resistance Value(Ω) |
| 4mm | 0.95 kg | 2.98~3.03*105 Ω |
| 6mm | 1.26 kg | 2.26~2.72*105 Ω |
| 8mm | 2.24 kg | 1.55~2.25*105 Ω |
| 10mm | 3.21 kg | 2.27~3.36*106 Ω |
In the process of storage and transportation, liquid petroleum products will produce electrostatic, After liquid petroleum products carrying electrostatic come into the container (such as oil tank), due to uneven distribution of electric charge on the solid-liquid interface, liquid oil will carry charge. It makes the liquid surface electrostatic potential rised. At this time, when beginning sampling or temperature measurement, it can induce electrostatic discharge which resulting in fire accident.
To avoid electrostatic accidents,With technical support of China National Petroleum Corporation Electrostatic Monitoring Center and China Petrochemical Corporation Safety Engineering Scientific Research Institution, we develop Anti-static Sampling Rope, temperature measurement and Water Quality Monitoring used in petrochemical based on the standard GB 12158 and SY/T 7355-2017.
Obtained Chinese Patent Cetificate in 2011(Patent NO. ZL2011 2 0107936.6).

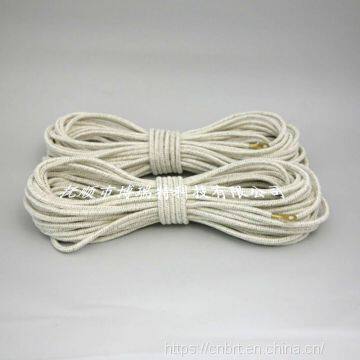

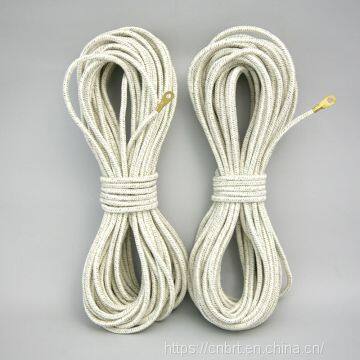

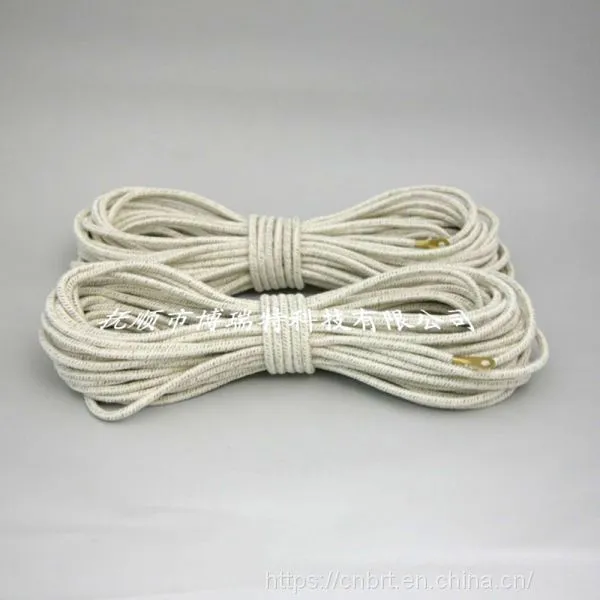

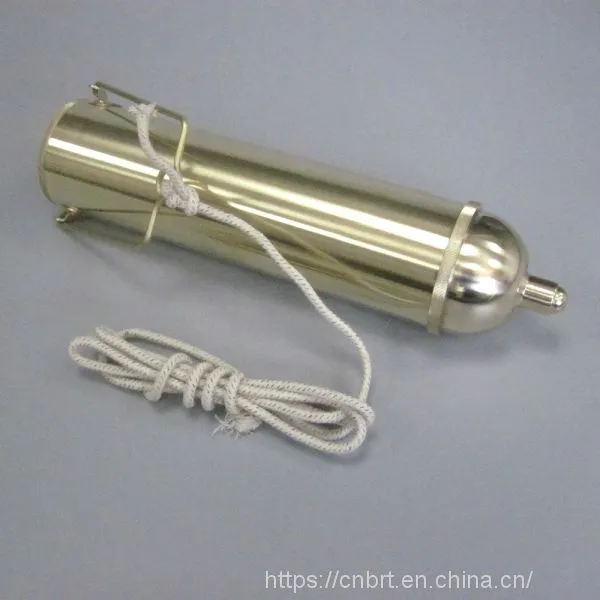

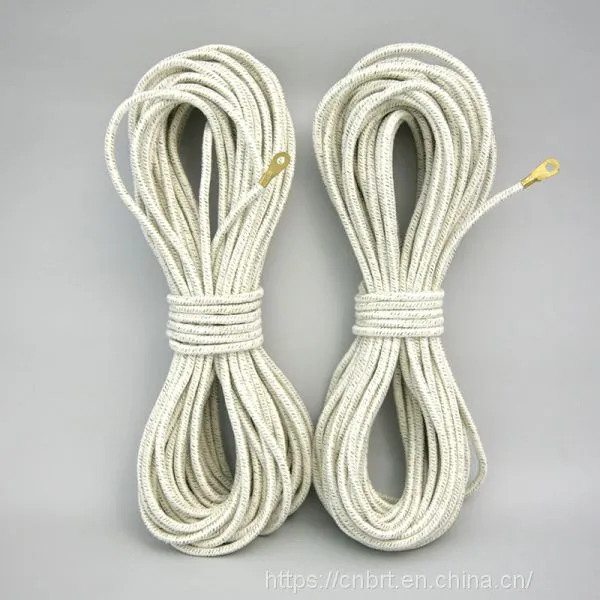

It is suitable for Sampling, Temperature Measurement and Water Quality Monitoring of liquid petroleum products in petrochemical industry. The Anti-static Sampling Rope must be grounded. One end of the sampling rope is provided with a ground port when it is delivered, and the other end should be firmly connected with the sampler when it is used. Can not use if ungrounded, and the earth point shall not have insulation such as paint.
Characteristic:
(1)The resistance value of the Anti-tatic Sampling Rope is strictly controlled within the safe range required by the national standard.
(2)Made of conductive fiber, non-discoloring, long service life.

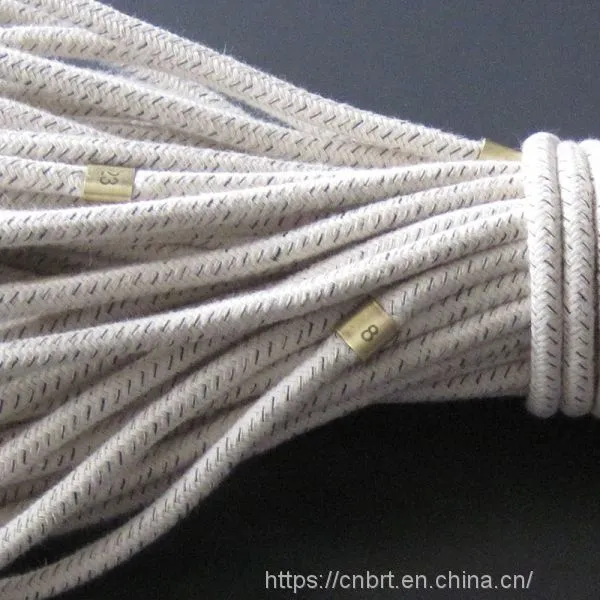

(3)To help the user to directly read the sinking depth of sampler, it is able to customize the Anti-static Sampling Rope with Copper Scale Mark.
(4)Before leaving the factory, every Anti-static Sampling Rope is tested by our quality control department, and the resistance value is recorded.
Keywords:
Anti-Electrostatic/Static Sampling Rope for Liquid Petroleum Products, Safety Specification of Petroleum Prodyct for Sampling and Temperature Measurement Rope, Lab Oil Sampling Rope in Tank or Cans
