Huaxia Master Supply FY260 Crawler Pneumatic Water Well /automatic Civil Drilling Machine for Geological Exploration
US$ 20000 - 23100
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
huaxiamaster
Place of Origin:
China
Model Number:
FY260
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
5 days
Related Products
-
FY300 Crawler Base Water Well Drilling Rig Machine Driven by Diesel Engine With 300m Drilling Depth Pneumatic DTH and MudUS$ 26000 - 28500MOQ: 1 Set -
FY400 Crawler Base Water Well Drilling Rig Machine Driven by Diesel Engine With 400m Drilling Depth Pneumatic DTH and MudUS$ 36000 - 40000MOQ: 1 Set
-
FY600 Crawler Base Water Well Drilling Rig Machine Driven by Diesel Engine With 600m Drilling Depth Pneumatic DTH and Mud DrillUS$ 35000 - 38000MOQ: 1 Set
-
Civilian Small Pneumatic Drill Rig Equipment KQZ-180d Wheel Portable 100m Drilling Well Crawler Pneumatic RigUS$ 4000 - 4300MOQ: 1 Set
-
Wheeled Pneumatic Well Drilling Rig Trailer Type Frame Impact Well Wheel Type Pneumatic 200m Drilling MachineUS$ 4300 - 5000MOQ: 1 Set
Brand Name
huaxiamaster
Place of Origin
China
Model Number
FY260
Type
Rotary Drilling Rig
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
6 months
Weight
6.2T
Dimension(L*W*H)
3900*1950*2550MM
Power Type
Diesel
Usage
Water Well
Condition
New
Power(W)
85KW

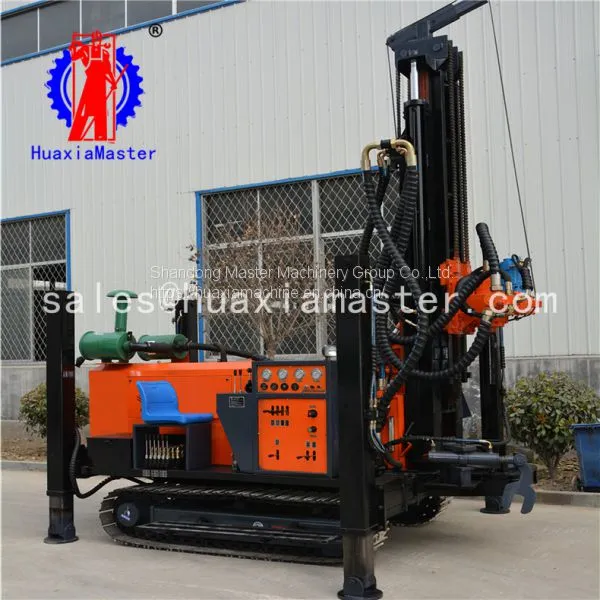

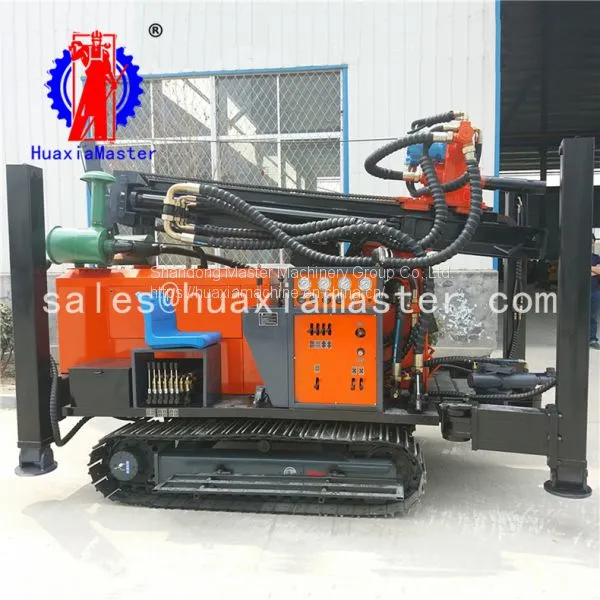

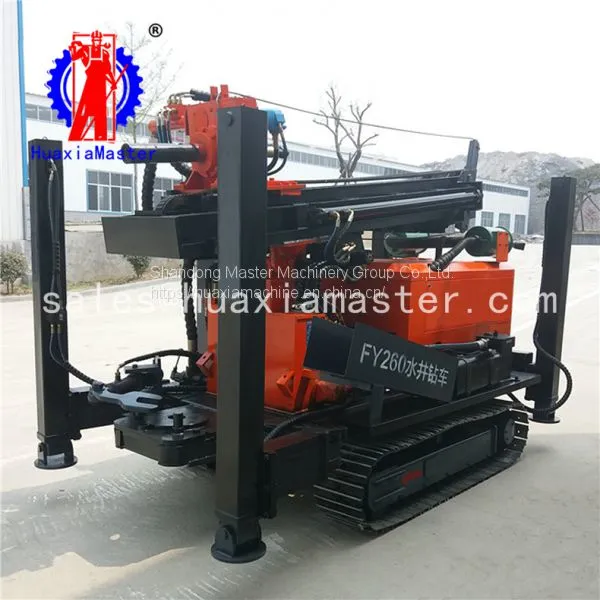

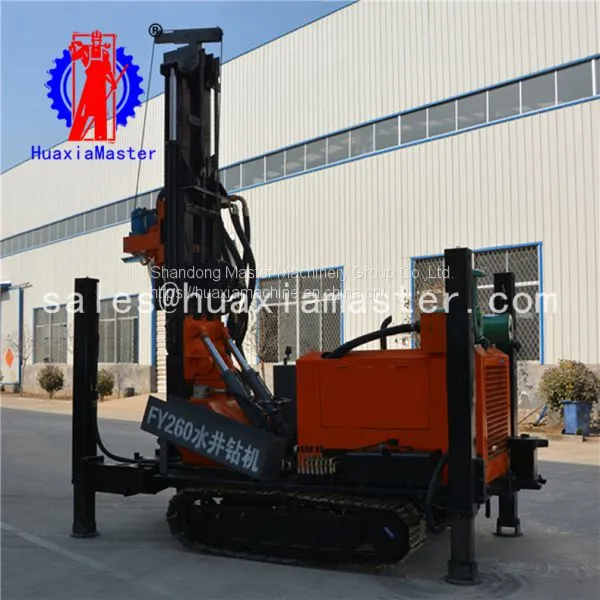

FY260 crawler pneumatic water well drilling rig
The applications of FY260 crawler pneumatic water well drilling rig
civil engineering drilling
geothermal drilling,
drilling with large diameter
deep drilling footage
fast, flexible and efficient.
The specifications of FY260 crawler pneumatic water well drilling rig
Model |
FY260 |
|
Gross weight |
t |
6.2 |
External dimension |
mm |
3900*1950*2550 |
Aperture |
mm |
140-325 |
Drilling depth |
m |
260 |
Feed stroke |
mm |
3000 |
Travel speed |
km/h |
2.5 |
Grade ability |
max. |
30° |
Rising height from ground |
mm |
250 |
Wind pressure |
mpa |
1.7-3.0 |
Air consumption |
m³/min |
17-35 |
Engine power |
kw |
85 |
Rotary speed |
rpm |
40-70 |
Rotation torque |
n.m |
7000-9000 |
