Product Description

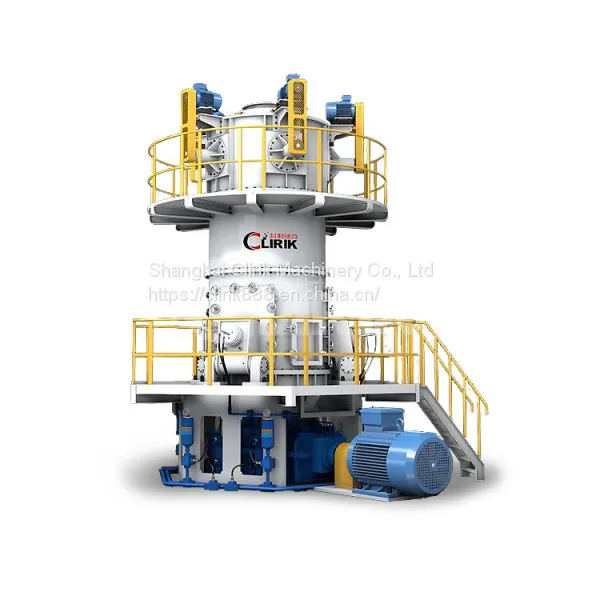

Introduction of Ultra Fine Vertical Roller Mill Plant
Ultra Fine Vertical Roller Mill Plant is a device that breaks solid materials into powder by grinding, Such comminution is an important unit operation in many processes. It is suitable for producing powder in mineral, chemical, building and other industries.
The Handling Materials of Ultra Fine Vertical Roller Mill Plant
Ultra Fine Vertical Roller Mill Plant is suitable for grinding of all kinds of materials whose Moh’s hardness is below 9.3, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, clay, white mud, mica, refractory material, glass, total about 1000 kinds of materials.
Internal structure of Ultra Fine Vertical Roller Mill Plant
The standard configuration of Ultra Fine Vertical Roller Mill Plant consists of main unit, reducer, powder classifier, cyclone powder collector, dust cleaner, blower, control cabinet motor and pipes. The optional accessories include crusher, bucket elevator, feeder.
working principle of Ultra Fine Vertical Roller Mill Plant
Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; The airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.
Advantages of Ultra Fine Vertical Roller Mill Plant
1.ertical structure, so it has small footprint, strong system.
2.Compared with other mills, Raymond Mill has high passing rate - 99%, which is generally not available for other grinding equipments.
3.The main drive device of Raymond mill adopts airtight gear box and belt pulley, the transmission is stable and the operation is reliable.
4.Important components are made of high quality castings and profiles, ensuring the durability of the whole equipment.
5.The centralized control is used in the electric system, the mill can basically realize unmanned operation, and the maintenance is convenient.
Specifications of Ultra Fine Vertical Roller Mill Plant
Main configuration and production | |||
Model Item |
CLUM1425 |
CLUM1632 |
CLUM1736 |
Working Diameters(mm) |
1400 |
1600 |
1700 |
Number of rollers(pieces) |
3 |
3 |
3 |
Number of classifier(pieces) |
5 |
7 |
7 |
Power of classifier(Kw) |
5X15 |
7X15 |
7X(15~18.5) |
Main unit power (Kw) |
250 |
315 |
355 |
Blower power(Kw) |
200 |
250 |
315 |
Feed size (mm) |
10mm |
10mm |
10mm |
Moisture of feeding material |
3% |
3% |
3% |
|
Less than 2μm=34% output(t/h) |
11-14 |
13-17 |
15-19 |
|
Less than 2μm=46% output(t/h) |
7-8 |
9-10 |
11-12 |
|
Less than 2μm=60% output(t/h) |
3-4 |
/ |
/ |
|
Material: based on calcite Particle size distribution: measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments | |||
Company Information
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. we have established a whole production chain, the products covermicro powder grinding mill, high pressure grinding mill, European version coarsegrinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on.Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front.
Certification
Customer visit
we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.
Work Site
We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment,optimized process configuration and a full range of technical support, therefore we always follow your steps, pursue your value and achieve your benefit.
FAQ
Q&A
1. What advantages does your Ultra Fine Vertical Roller Mill Plant have?
The main advantage of our Ultra Fine Vertical Roller Mill Plant over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.
2. Can you guarantee the quality of your Ultra Fine Vertical Roller Mill Plant?
We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3.How many years have you been manufacturing the machine?
8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality.
Inquiry Service
More details we needed for sending you more suitable quotation,
1. What kind of raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the finished size you required?
Any inquiries of our vertical mill will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final ann forever pursuit.
Please fill in your need products and your message and do not forget email and/or phone if you like to be contacted.
We look forward to your inquiries!
