Good Quality Two Profiles Galvanized Steel Ridge Cap With Edge Cut Forming Machine

Good Quality Two Profiles Galvanized Steel Ridge Cap With Edge Cut Forming Machine photo-1

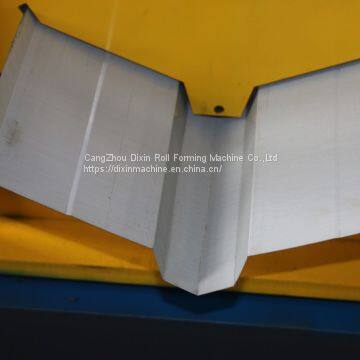

Good Quality Two Profiles Galvanized Steel Ridge Cap With Edge Cut Forming Machine photo-2

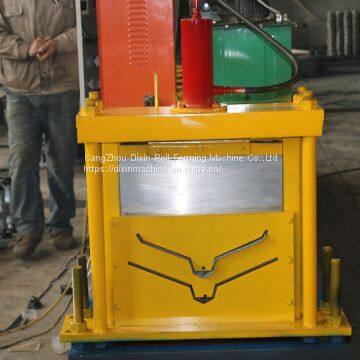

Good Quality Two Profiles Galvanized Steel Ridge Cap With Edge Cut Forming Machine photo-3

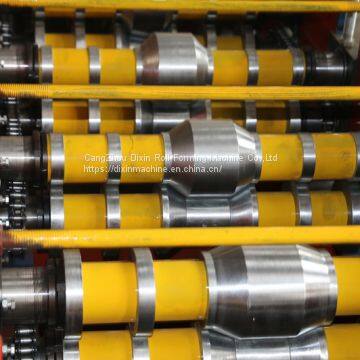

Good Quality Two Profiles Galvanized Steel Ridge Cap With Edge Cut Forming Machine photo-4

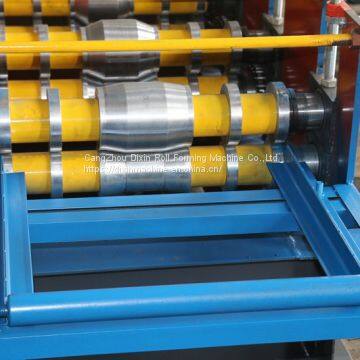

Good Quality Two Profiles Galvanized Steel Ridge Cap With Edge Cut Forming Machine photo-5
US$ 8000 - 9800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dixin
Place of Origin:
China
Model Number:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days
Brand Name Dixin
Place of Origin China
Model Number Customized
Use Roof
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 2T
Production Capacity 8-12m/min
Condition New
Voltage 380v
Power(W) 4kw
Type Tile Forming Machine
Tile Type Steel

Good quality two profiles Galvanized Steel Ridge Cap With Edge Cut forming machine

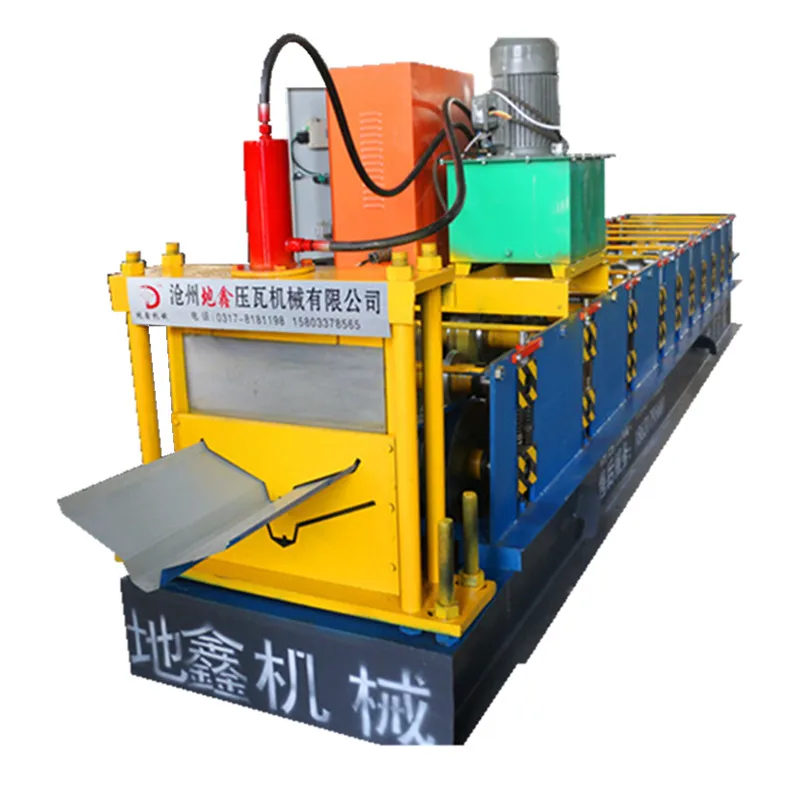

new design ridge cap_.jpg

First, water, heat insulation, sound insulation, beautiful, environmentally friendly, diverse colors, colorful layers, can be produced according to the user's request, enough to satisfy people's different pursuits of beauty.

Second, the use of new composite materials and cement, sandstone, consolidation, use, pressure, people stand on the tile, the construction can be used nails, can be pasted, once covered, never flip, lifelong enjoyment, saves Renovation, wear and tear caused by rain.

Technical parameter

Suitable to process

 PPGI,galvanized sheet

Feeding width

 300~500mm

Thickness of raw material

 0.3~0.6mm

Main frame

 350H-Beam steel

Roller station

 14 steps

Diameter of shaft

 75mm,totally solid

Material of roller

 45# steel,hard Cr plated

Thickness of sidewall

 16mm

Chain size

 1.3inches

Main motor power

 5.5kw

Pump motor power

 4kw

Voltage

 380V,50Hz,3phase or customized

Cutting blade

 Cr12 Mold steel,quenched

PLC brand

 Delta or customized

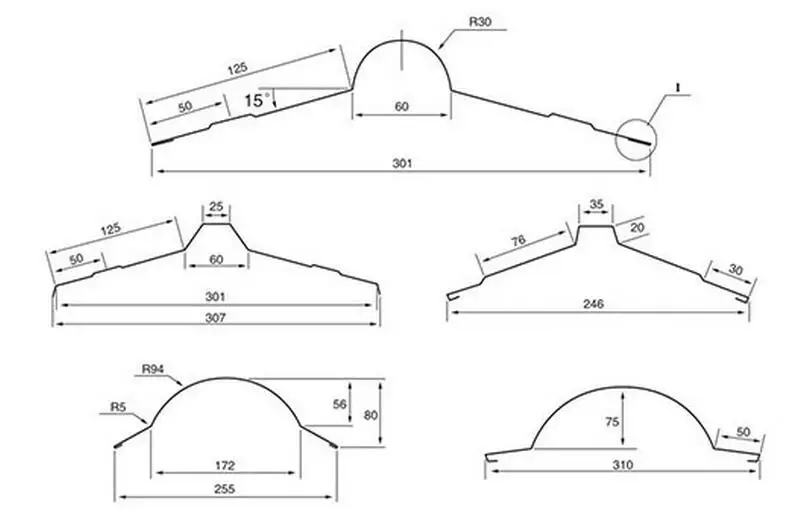

Finished product




We have many models for your reference, you can also send the drawings to us, our factory can customize for you.


Our company

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.  We can satisfy the different needs of different markets.

other type.JPG


Our service

1.We can produce the specialmachine,send your drawing to us,we can desgin for you.

2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100

4. Engineer available to service machinery overseas.

5. If you come to visit our factory ,we can book the room for you,car pick up to send.


FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. What’s your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
