Product Details
| Brand Name: | huaxiamaster | Place of Origin: | China | Model Number: | XYC-3 |
| Type: | Rotary Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 6 months | Weight: | 3500KG | Dimension(L*W*H): | 1110*994*665MM |
| Power Type: | Diesel | Usage: | Water Well | Condition: | New |
| Power(W): | 15KW |
Product Description

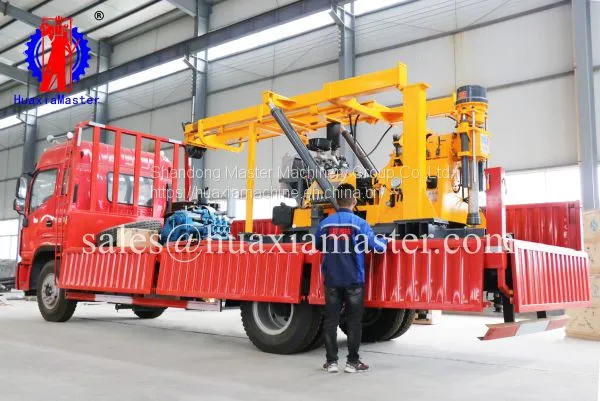

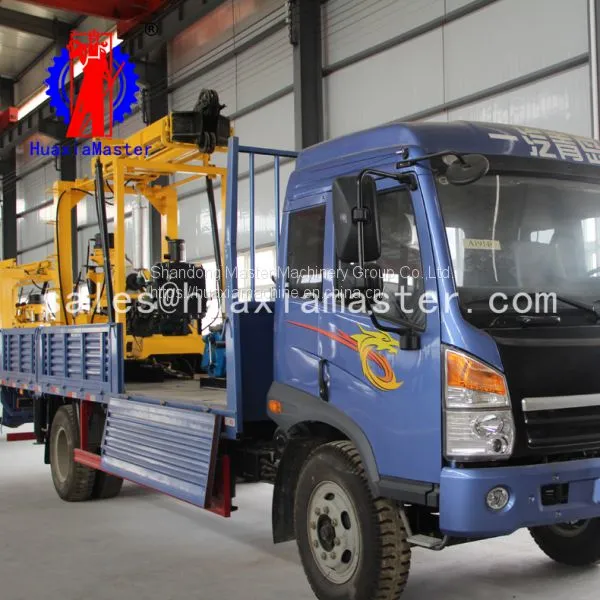

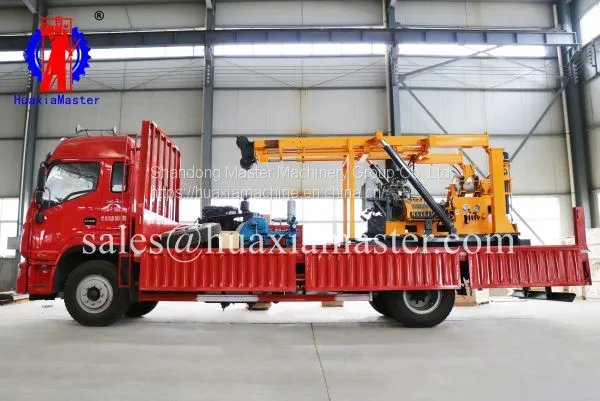

XYC-3 vehicle-mounted hydraulic water well drilling rig
Main features of XYC-3 vehicle-mounted hydraulic water well drilling rig
XYC-3 is a multi-functional hydraulic vehicle-mounted water well drilling rig.The drilling rig transmission system and hoist, mud pump and other important accessories are all installed on the chassis. The layout is reasonable and compact. And the operation is simple.
The drilling rig is equipped with high pressure and large flowBW-250 pump, which ensures the drilling depth and borehole diameter.
2. Applications of XYC-3 vehicle-mounted hydraulic water well drilling rig
geological survey and exploration
road and high-rise building foundation exploration
all kinds of concrete structure inspection holes
river embankments
subgrade grouting holes
drilling and direct grouting
civil use water wells
ground temperature central air conditioners
3. Parameters of XYC-3 vehicle-mounted hydraulic water well drilling rig
XYC-3 vehicle-mounted hydraulic water well drilling rig | ||
Drill depth | 30-600 | |
Drill hole diameter | 300-75 | |
Diameter of the end hole | 75 | |
Drill angle | 90-75 | |
Spindle forward core speed | 30-1050 | |
Spindle reverse core speed | 29-137 | |
Spindle stroke | 600 | |
Main winch lifting force | 3000 | |
Main winch rope capacity | 65 | |
Lifting speed | 0.3-1.9 | |
Rope diameter | 12.5 | |
Drill mast height | 7000 | |
Drill effective height | 6500 | |
Driving drilling rod | 59*53、70*63、79*89 | |
Drilling rod diameter | 42/50/60 | |
Weight | 3500 | |
Engine | Model:Yunnei YN27 | |
BW-250 mud pump | Rated flow (l/min) | 250 |
Rated power(mpa) | 7 | |
Driving power(kw) | 15 | |
Host weight(kg) | 500 | |
Dimension(mm) | 1110*994*665 | |
Chassis | Vehicle（Pictures of vehicle-mounted drilling rigs for reference only） | |
