OEM Orange5 Professional Programming Device With Full Packet Hardware + Enhanced
US$ 120 - 145
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Orange5
Place of Origin:
China
Model Number:
Orange5
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
4 days
Related Products
-
CGDI Prog MB Benz Key Programmer Support Online Password CalculationUS$ 520 - 599MOQ: 1 Piece -
Launch X431 Easydiag 3.0 Fault Code Reader Scanner Diagnostic LAUNCH EasyDiag 3.0 Plus Obd2US$ 185 - 225MOQ: 1 Piece
-
LAUNCH Easydiag 3.0 Support Bluetooth Work With Android Update Version of EasyDiag 2.0US$ 185 - 229MOQ: 1 Piece
-
VPECKER EASYDIAG V8.2 India Version Wireless OBDII OBD2 Full Diagnostic Tool for India Tata/Maruti/MahindraUS$ 200 - 245MOQ: 1 Piece
-
Original Xtool VAG401 OBD2 Scanner VAG 401 ABS SRS Code Reader Diagnostic ToolUS$ 40 - 49MOQ: 1 Piece
Brand Name
Orange5
Place of Origin
China
Model Number
Orange5
Type
Code Reader
Certification
CE
Voltage
24W
Power
12v
Warranty
12
Applicable Models
for all car
OEM Orange5 Professional Programming Device With Full Packet Hardware + Enhanced
for more information ,contact skype :berylliu3 or whastapp+8619926672802
OEM Orange5 Professional Programmer With Full Packet Hardware + Enhanced Version Software Get Four Additional Software FreeSoftware Version: V1.34
Language:Chinese, English and Russian
Systems: XP WIN7 WIN8
Warning: The default software version of OEM Orange5 is V1.34, please never try to use higher version or update online, or device will get locked, and needs to pay usd20 to unlock.
Orange 5 Programmer Software License:Language:Chinese, English and Russian
Systems: XP WIN7 WIN8
Warning: The default software version of OEM Orange5 is V1.34, please never try to use higher version or update online, or device will get locked, and needs to pay usd20 to unlock.
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
Orange5 Technical Info:TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW

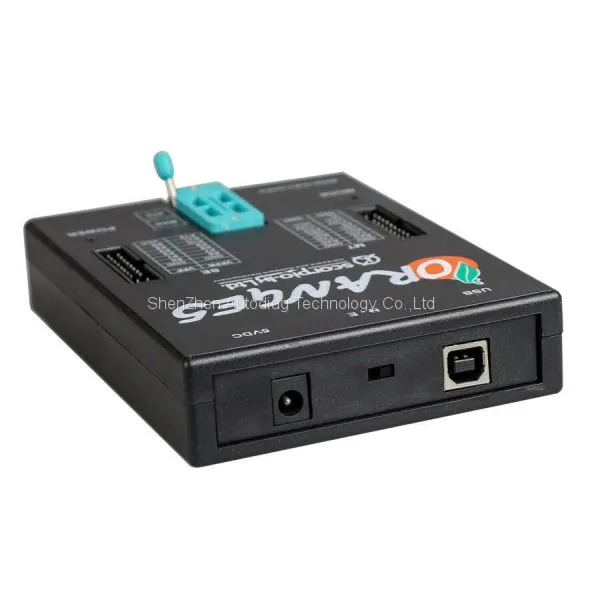

* USB power supply (USB2.0/3.0)

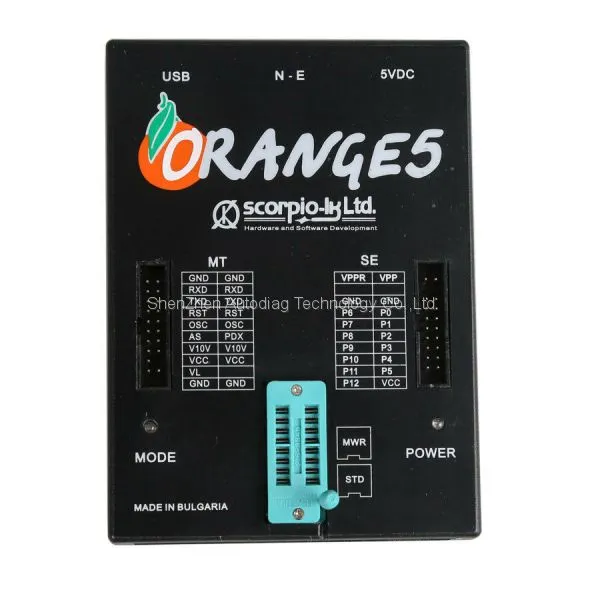

* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets

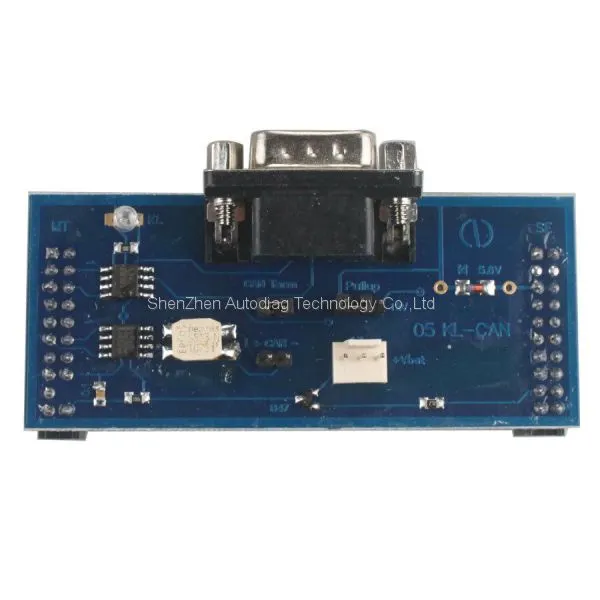

* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.
Orange 5 Programmer Feature:Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.
Orange 5 Programmer Automotive Chip List:Immo HPX 9V0
Audi,BMW,Chery,Chevrolet,Chrysler,Citroen,DAF,Dodge,Fiat,Ford,Gilera,Great Wall,Hyundai,Honda,Jeep,KIA,Lancia,Mahindra,Mercedes Benz
,Nissan,Opel,Peugeot,Piaggio,Renault,Rover,Seat,Skoda,SsangYong,Suzuki,Toyota,VW
,Nissan,Opel,Peugeot,Piaggio,Renault,Rover,Seat,Skoda,SsangYong,Suzuki,Toyota,VW
EEPROM
MicroWire,4Wire,Adesto,AKM,Altera,Amic,Atmel,BOSCH,Catalyst,Chingis,Dallas/Maxim,EON,ESMT,EXEL,Fairchild,Fujitsu,GI,GigaDevice,Grundig
,HOLTEK,Hynix,ITT,KHIC,Macronix,MicroChip,Micron,Mitsubishi,Motorola,NEC,NSC,Numonyx,OKI,PCT,Philips,Pioneer,PMC,Ramtron,Rohm,Samsung
,Seiko,Siemens,Sony,Spansion,SST,ST,Winbond,Xicor,XUSSR,YMC,MCU,Atmel,Infineon,MediaTek,MicroChip,Nordic,NSC,Philips,Renesas,Samsung
,SiLabs,ST,TI,Motorola, Freescale,MC68HC11,MC68HC12
* - Program with Adapter.
Licenses for M08V, TMS370, Renesas V850 are optional.
For detail chip type model list,pls contact us.Orange 5 Programmer Reviews:Review 1:And this Orange5 OEM is clone but includes IMMO HPX 9V0 Software License and adapter set, it works good for me with hundreds dollar compared with
the original thousands dollar. I just read today 1d69j adapter success.
Review 2: Got my Orange 5 today, first very easy to install, then I start tested it: all functions open 1-10 except car radio get error, tested reading usual EPROMS all good,
tested tms370 with adaptor board did not read so maybe bad adaptor board, tested IMMO login code from dump, TMS VW works.
Review 3: Not bad at all, I have received mine few days ago and already did few cars. IMMO SW included and also activation for other sw. Only one minus is not have updates ,
I have original also get this to play with it , and can’t say bad for it , till now first I read with original after that with the clone and no problem till now , of course I not test
all but with some NEC all ok .
Review 4: I have never had any problems with the clone; everything works as it should, knock on wood. Not sure is there any script but software for IMMO, radio and dash coming
together with clone.
Review 5: Orange 5 OEM seems to be an EEPROM programmer. I often extract the dump of an EEPROM with a programmer and modify it with the software came with the Orange 5.
Orange 5 Programmer Packiage List:
For detail chip type model list,pls contact us.Orange 5 Programmer Reviews:Review 1:And this Orange5 OEM is clone but includes IMMO HPX 9V0 Software License and adapter set, it works good for me with hundreds dollar compared with
the original thousands dollar. I just read today 1d69j adapter success.
Review 2: Got my Orange 5 today, first very easy to install, then I start tested it: all functions open 1-10 except car radio get error, tested reading usual EPROMS all good,
tested tms370 with adaptor board did not read so maybe bad adaptor board, tested IMMO login code from dump, TMS VW works.
Review 3: Not bad at all, I have received mine few days ago and already did few cars. IMMO SW included and also activation for other sw. Only one minus is not have updates ,
I have original also get this to play with it , and can’t say bad for it , till now first I read with original after that with the clone and no problem till now , of course I not test
all but with some NEC all ok .
Review 4: I have never had any problems with the clone; everything works as it should, knock on wood. Not sure is there any script but software for IMMO, radio and dash coming
together with clone.
Review 5: Orange 5 OEM seems to be an EEPROM programmer. I often extract the dump of an EEPROM with a programmer and modify it with the software came with the Orange 5.

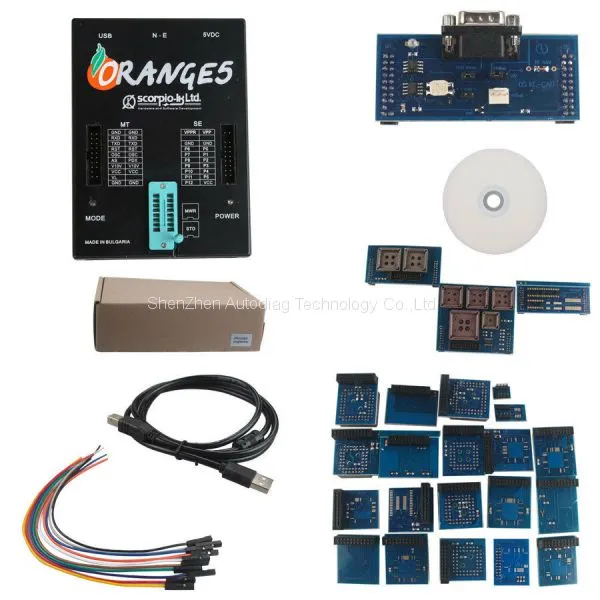

Orange 5 Programmer Packiage List:
| Orange-5 Programmer | 1 |
| USB cable | 1 |
| Incircuit wire | 10 |
| SOIC8/DIP8 Expert adapter | 1 |
| SSOP8/DIP8 | 1 |
| SOIC8/DIP8 adapter | 1 |
| SOIC8_14_93Cxx adapter | 1 |
| Lead 11E9(20) with power | 1 |
| Adapter 05L28/05B | 1 |
| Adapter 908AS60/AZ60 QFP64 | 1 |
| Adapter 68HC(7)05P3/E6 | 1 |
| Adapter 05B/X_705B/X QFP64 V2 | 1 |
| Adapter 11PA8/11E9 QFP64 | 1 |
| Adapter 68HC05H12 | 1 |
| Adapter 68HC11EA9 | 1 |
| Adapter 908AS60 | 1 |
| Adapter 9S12Dxx | 1 |
| Adapter 912Dxx | 1 |
| Adapter 9S12X | 1 |
| Adapter 912B32 QFP80 | 1 |
| Adapter 68HC11F1 | 1 |
| Adapter 68HC11L6 | 1 |
| Adapter 68HC11KA4 | 1 |
| Adapter 9S12XE | 1 |
| Adapter PCF7941 | 1 |
| Adapter TMS374C003A | 1 |
| Adapter MSP430F | 1 |
| Adapter 68HC11KA4 PLCC68 | 1 |
| Adapter 908JL | 1 |
