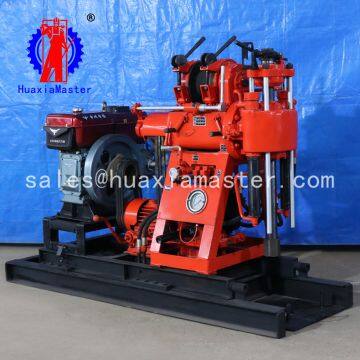

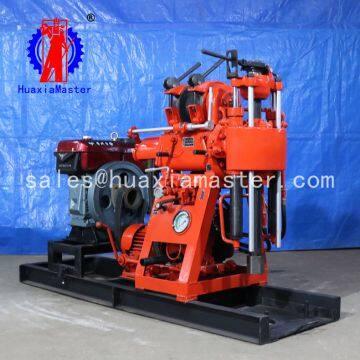

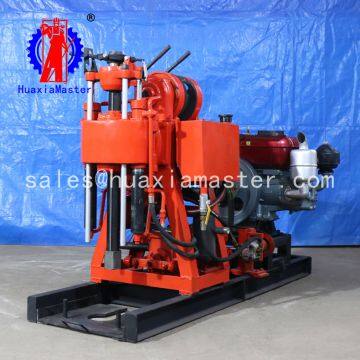

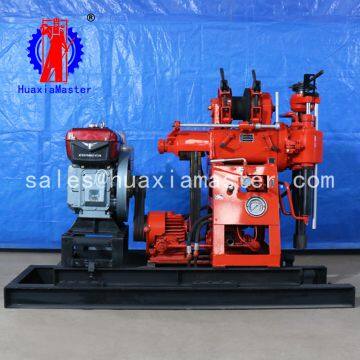

XY-100 hydraulic water well drilling rig/small water well drill rig

Maximum open hole caliber

220mm

End hole caliber

75mm

Drill rod caliber

50mm /42mm

Drilling angle

90

Drilling rig weight (exclude diesel engine)

610kg

Unity machine dimensions

2.1*0.9*1.3m

Spindle

Spindle speed

130/300/480/730/830/1045 r/min

Spindle stroke

 450mm

Hoist

Max. lifting capacity with single rope

1600kg

Lifting speed with single rope

1.06/0.67/0.32 m/s

Wirerope caliber

13mm

Wirerope cubic measure

35mm

Hug floodgate caliber

254mm

Hug floodgate belt width

50mm

Distance between drill and hole

230mm

Mud pump

Type

Horizontal single-urn twin-action

Displacement (with diesel engine/electric motor)

170l/min

Max. pressure

1.5mpa

Work pressure

0.7mpa

Power

Diesel engine

S1100

Electric motor

Y160M-4 / 10KW
