Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Stainless Steel Customized Magnetic Agitator Liquid Homogenizer Mixer for Water Tank

Stainless Steel Customized Magnetic Agitator Liquid Homogenizer Mixer for Water Tank

Stainless Steel Customized Magnetic Agitator Liquid Homogenizer Mixer for Water Tank photo-1
Stainless Steel Customized Magnetic Agitator Liquid Homogenizer Mixer for Water Tank photo-2
Stainless Steel Customized Magnetic Agitator Liquid Homogenizer Mixer for Water Tank photo-3
Stainless Steel Customized Magnetic Agitator Liquid Homogenizer Mixer for Water Tank photo-4
Stainless Steel Customized Magnetic Agitator Liquid Homogenizer Mixer for Water Tank photo-5
US$ 1000 - 3000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CD
Place of Origin:
China
Certification:
CE/ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, Tianjin, Shanghai, Guangzhou, Lianyungang, Dalian, Ningbo,Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CD
Place of Origin China
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 Year
Dimension(L*W*H) Customization
Condition New
Product Type Other, vacuum, dairy products, wine, biotechnology, food, pharmaceutical, beverage, cosmetics and chemical industries.
Voltage 380V/3phase/50HZ/Customization
Application Other, Liquid with Suspended Solids/Liquid
Power(W) 4
Max. Loading Capacity 20000L
Additional Capabilities Other, Homogeneous/Mixing/Separation
Mixer Type Other, Homogenizer/Agitator

Stainless Steel Customized  Magnetic  Agitator Liquid Homogenizer Mixer for  Water Tank


Name Stainless Steel Customized  Magnetic  Agitator Liquid Homogenizer Mixer for  Water Tank
Size Customized as you need

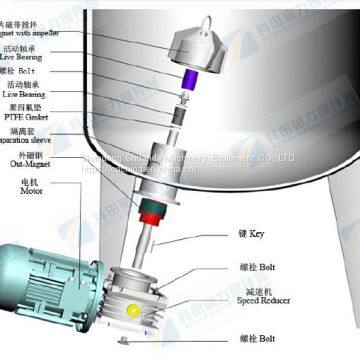

The basic principle  The magnetic agitator is to use the principle of homogeneity and reciprocal attraction of the magnetic field, and use the magnetic field to push the magnetic stirrer placed in the container for circumferential operation, so as to achieve the purpose of stirring the liquid.
Product feature It can precisely stir the solution in a wide range of speeds, simple operation, stable operation, stepless speed regulation, accurate temperature control and high efficiency. It is especially suitable for the same machine test operation of volume solutions with different viscosity. It is petroleum and chemical industry. , health, environmental protection, biochemical laboratories, analysis rooms, and indispensable tools for education departments.


Reference Standard
Model
Impeller Diameter (Form)
Motor Power
Stirring Amount
/Container
Rotate Speed
MT90
Φ 90(3-piece)
0.18kw
20L-50L
355
MT120
Φ 120(4-piece)

0.25kw

80L-200L
355
MT155
Φ 155(8-piece)
0.37kw-0.55kw
300L-500L
355
MT200
Φ 200(8-piece)
1.1kw
1000L-2000L
355
MT220
Φ 220(8-piece)
1.5kw
3000L
355
MT240
Φ 240(8-piece)
2.2kw
4000L
355
MT270
Φ 260(4-piece)
3.0kw
5000L
355
MT320
Φ 320(8-piece)
4.0kw
6000L-15000L
355




Applicable Industry

Metallurgical Mining, Petrochemical,
Biomedical,
Water Treatment,
Food and Beverage,
Special Machinery,
Fine Chemicals,

Paper, Dyes and Coatings, Environmentally Friendly Treatment



Service

Shipping

Pre-sale service After-sales service
 Free online consultation and quotation.
 We can customize the product according to your needs, you only need to provide relevant parameters.
 Welcome to visit our factory to see the quality and production process of the products.

 If there is a failure caused by non-human damage within one year, you can get a free warranty.

  If the repair requires replacement parts, only the material fee will be charged.

 We provide staff training and on-site service.

 If you have any questions during the use of the product, you can contact us by Phone, Email, Whatsapp, etc. We have the most professional technical department, we will provide free service until your problem is solved.

If you have any questions, welcome to contact us directly, we will try our best to answer for you.







Product Tags: High Quality Mechanical Liquid Mixer , Industrial Liquid Mixer , Viscous Liquid Mixer , Magnetic Agitator/Mixer , Homogenizer Mixer , Sanitary Stainless Steel Tank Magnetic Mixer
